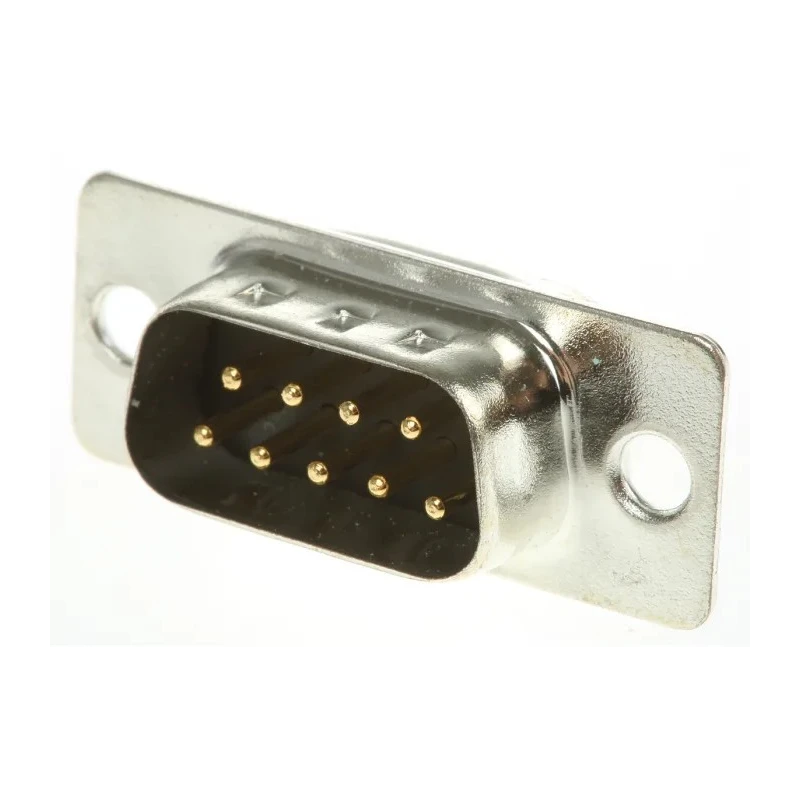

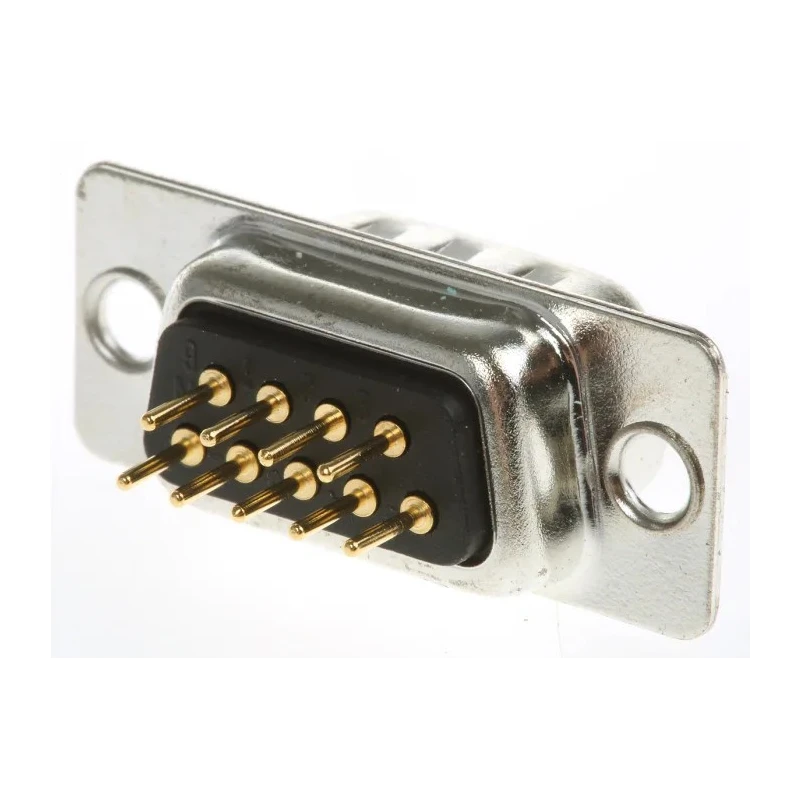

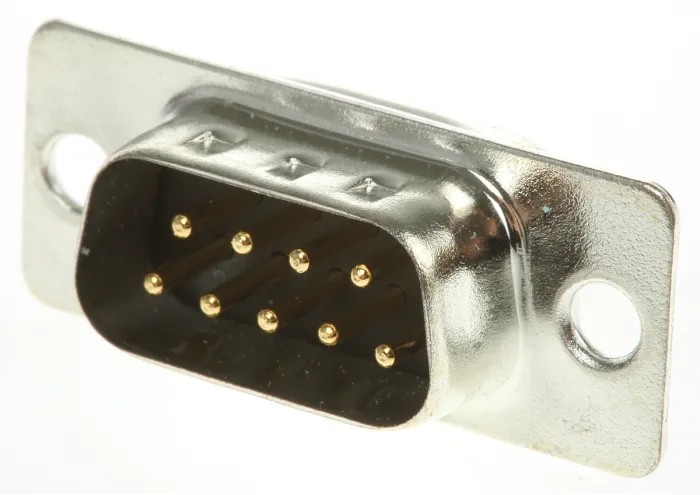

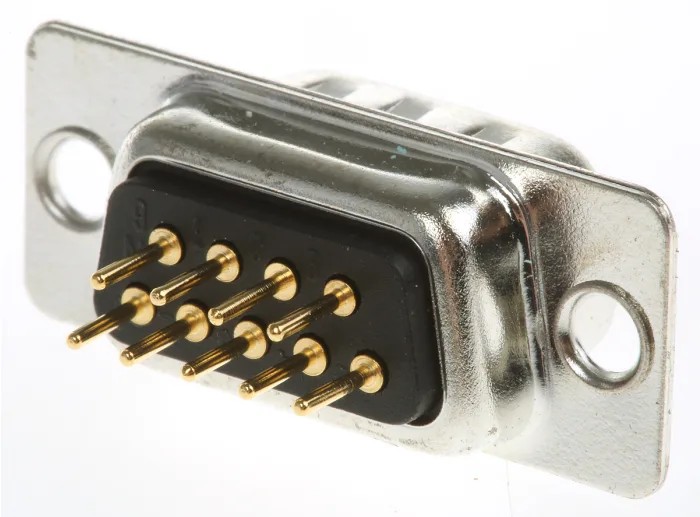

RS PRO 9 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male 528-3531

RS PRO 528-3531 9 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male is specifically designed for high-reliability electrical connections in industrial and electronic applications. It offers a robust current rating of 7.5 A and voltage rating of 250 V, suitable for various industrial, medical, and manufacturing equipment.

The connector's housing is made from durable thermoplastic material, providing chemical resistance to solvents and cleaning agents commonly used in maintenance, thereby extending the product's service life. The male contacts are crafted from copper alloy with gold plating, guaranteeing superior electrical conductivity and minimized corrosion risks, essential for signal integrity in sensitive electronics.

Engineered with a straight orientation for straightforward PCB mounting via through-hole soldering, this connector ensures stable mechanical and electrical connections. Its pitch of 2.77 mm and compact casing (30.81 mm length, 4.1 mm width, 12.55 mm height) accommodate tight assembly spaces without compromising functionality.

The design incorporates dimpled plug shells to offer reliable grounding, shielding equipment from voltage surges and reducing shock hazards in demanding industrial environments. The connector is rated for operation across a wide temperature range from -55°C to 125°C, making it suitable for harsh operating conditions in laboratory or manufacturing settings.

This high-quality connector meets RoHS compliance standards and is produced in Taiwan, Province of China, reflecting consistent manufacturing excellence. It is widely used for creating reliable links between printed circuit boards, computer units, monitors, and other electronic components, ensuring uninterrupted data and power transfer.

Features a straight body orientation for easy PCB integration. Constructed with a thermoplastic housing material ensuring chemical resistance. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.

Rated for 7.5 A current and 250 V voltage for robust performance. Designed for through-hole solder termination with a male connector gender. Operates efficiently between -55°C and 125°C temperatures. Compact dimensions of 30.81 mm length, 4.1 mm width, and 12.55 mm depth.

Ensures effective grounding with dimpled plug shell design to protect equipment. Explore the extensive range of D-Sub Connectors on EnvMart for high-quality connectors compatible with diverse industrial applications.
