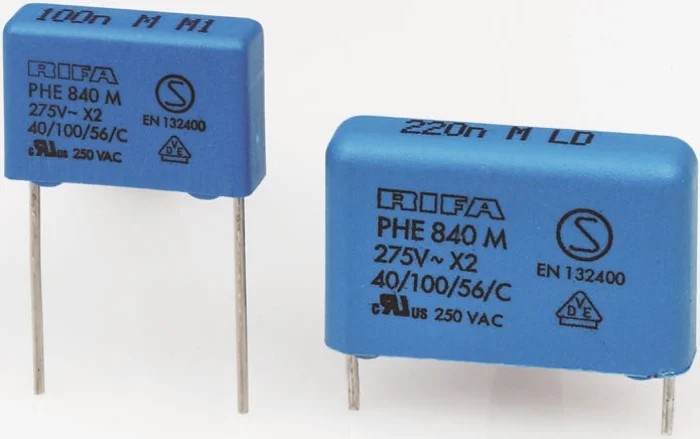

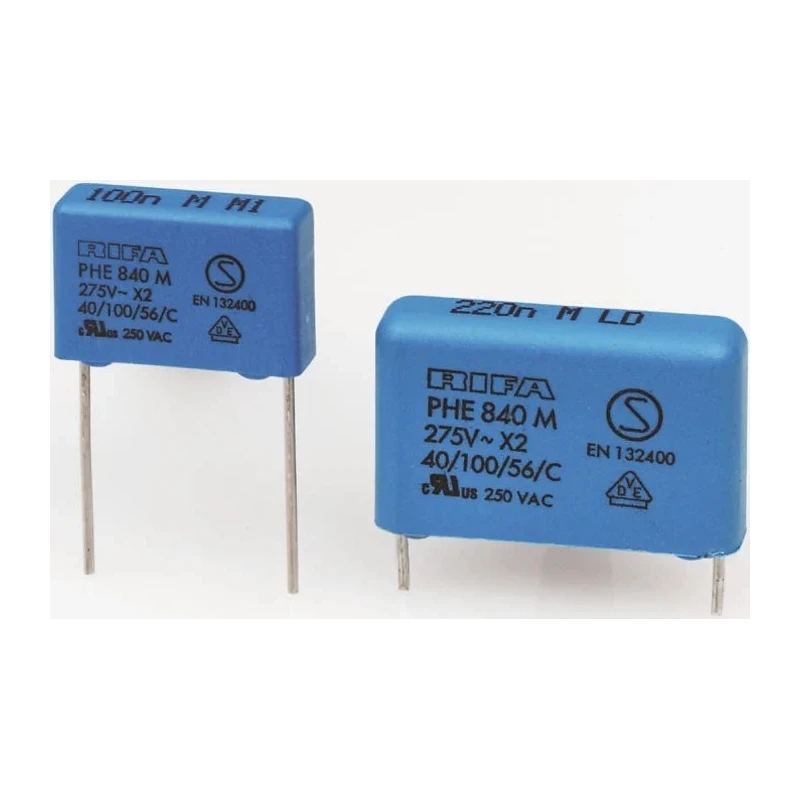

KEMET Film Capacitor 22 nF ±20 % 760 V dc 280 V ac Through Hole PHE840
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 9mm |
| Length | 13mm |
| Model | PHE840 |
| Packaging | Bag |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | PHE840 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Wire |
| Lead Length | 30mm |
| Standards/Approvals | EN132400, 22.2 No 8, CSA, RoHS, UL1283, UL1414 |
| Pin Count | 2 |
| Rated AC Voltage | 280V ac |
| Rated DC Voltage | 760V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
Key Features
- This film capacitor features a capacitance value of 22 nF with a tolerance of ±20 %.
- Rated for DC voltage of 760 V and AC voltage of 280 V, suitable for interference suppression in electronic circuits.
- Constructed for through hole mounting with wire terminals and 10 mm lead pitch.
- Encapsulated in self-extinguishing material compliant with UL94V-0 standards for enhanced safety.
- Operates reliably across a temperature range from -55°C to 105°C.
- Conforms to multiple industry standards and approvals including EN132400, UL1283, UL1414, CSA, RoHS, and others.
- Compact dimensions of 13 mm length, 9 mm height, and 4 mm width ensure easy PCB integration.
- Manufactured in Indonesia with a high-quality metallised polypropylene dielectric.
Product Description
KEMET PHE840 Film Capacitor is a high-quality encapsulated film capacitor designed for EMI suppression and noise reduction in various industrial and electronic applications. This capacitor has a capacitance of 22 nF with a ±20 % tolerance and is rated for 760 V dc and 280 V ac operation.
The device utilizes a metallised polypropylene dielectric and is encapsulated in a self-extinguishing UL94V-0 compliant material, ensuring safety and durability in demanding environments. Its through hole mounting design, wire terminals, and 10 mm lead pitch enable reliable PCB installation.
This capacitor operates effectively within a temperature range of -55°C to 105°C, making it suitable for harsh industrial, electronic, and power supply applications. It meets rigorous certifications and standards including EN132400, UL1283, UL1414, CSA, and RoHS, ensuring compliance with international quality and safety requirements.
Compact with dimensions of 13 mm length, 9 mm height, and 4 mm width, and 0.6 mm lead diameter, it is suitable for PCB interference suppression tasks, noise filtering, and line conditioning in industrial, commercial, and consumer electronics.
22 nF capacitance with ±20 % tolerance. Rated DC voltage: 760 V dc; Rated AC voltage: 280 V ac. Through hole mount type with wire terminals. Self-extinguishing encapsulation in UL94V-0 material. Operating temperature range: -55°C to 105°C.
Conforms to EN132400, UL1283, UL1414, CSA, and RoHS standards. Lead pitch 10 mm; lead length 30 mm; lead diameter 0.6 mm. Compact physical dimensions: Length 13 mm, Height 9 mm, Width 4 mm.
This film capacitor is ideal for EMI suppression and interference filtering in industrial automation, power supplies, consumer electronics, telecommunications, and other industrial equipment requiring high reliability and safety. The product is manufactured in Indonesia and supplied in a bag packaging suitable for optimized assembly.
Explore more high-quality Film Capacitors and electronic components for your manufacturing and design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This film capacitor has a capacitance value of 22 nF with a tolerance of ±20 %.
It is rated for a DC voltage of 760 V and an AC voltage of 280 V.
The capacitor operates reliably across a temperature range from -55°C to 105°C.
The capacitor has compact dimensions of 13 mm in length, 9 mm in height, and 4 mm in width.
This model is designed for through hole mounting with wire terminals.
The lead pitch for this capacitor is 10 mm.
It conforms to multiple industry standards including EN132400, UL1283, UL1414, CSA, and RoHS.
The lead length is 30 mm and the lead diameter is 0.6 mm.
It utilizes a metallised polypropylene dielectric and is encapsulated in a self-extinguishing material compliant with UL94V-0 standards.
This capacitor is suitable for EMI suppression, noise filtering, and line conditioning in various industrial and electronic applications.
This model is manufactured in Indonesia.
It is supplied in a bag packaging suitable for optimized assembly.
