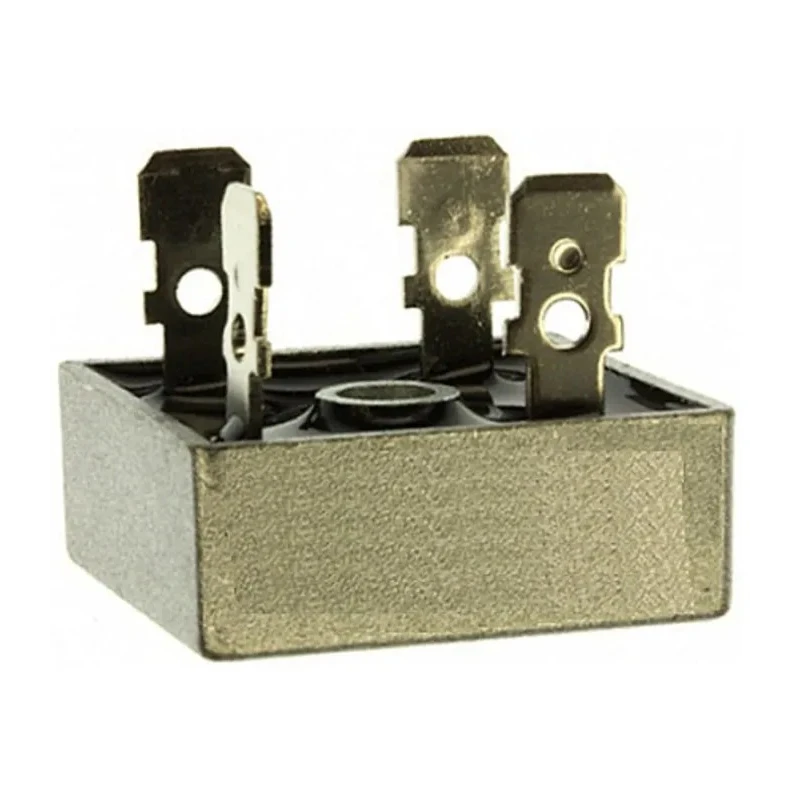

HY Electronic Corp Bridge Rectifier 600 V 450 A, 4-Pin Single GBPC5006

HY Electronic Corp GBPC5006 Bridge Rectifier is a high-performance semiconductor device designed to convert AC input into regulated DC output in various electronic applications. Rated for a peak reverse repetitive voltage of 600 V and a forward current of 50 A, it ensures reliable operation in power conversion circuits.

Its compact surface mount GBPC package with 4-pin single-phase configuration allows for easy PCB integration, making it suitable for electronic circuits, power supplies, and AC to DC conversion tasks. The diode bridge rectifier features a maximum operating temperature of 150°C and a minimum operating temperature of -40°C, sustaining performance under demanding thermal conditions.

With a surge overload capacity of up to 450 A peaks, the GBPC5006 bridge rectifier can handle transient currents effectively, protecting downstream components. Its low peak forward voltage (1.1 V) minimizes power loss, improving efficiency in power electronic designs. The device comes with a U/L recognized material certification, ensuring industrial-grade quality and reliability.

Additional characteristics include a low peak reverse current of 500 μA and an electrically isolated base rated for 2000 V, offering enhanced safety and minimizing leakage currents. Dimensions measure 28 mm on both length and width, with a height of 7.8 mm, optimizing board space while maintaining performance integrity.

This bridge rectifier is primarily used in PCB circuitry and various AC to DC conversion applications across industrial electronics, manufacturing, and power supply systems. It is manufactured in China and is a part of the GBPC50 series known for robustness and durability.

Supports a peak reverse repetitive voltage of 600 V. Forward current rating of 50 A ensures stable current flow. Features surge overload capacity up to 450 A peaks for heavy-duty use. Operates reliably between -40°C and 150°C temperature range.

Compact dimensions of 28 mm length, 28 mm width, and 7.8 mm height for PCB mounting. Surface mount type with 4-pin single configuration for easy integration. Material certified with U/L recognition for quality assurance.

Peak forward voltage is low at 1.1 V, enhancing efficiency. Peak reverse current is minimal at 500 μA to reduce leakage. Electrically isolated base withstands up to 2000 V for safety. Explore more semiconductor products and bridge rectifiers to find matched devices and accessories for your electronic applications through EnvMart.
