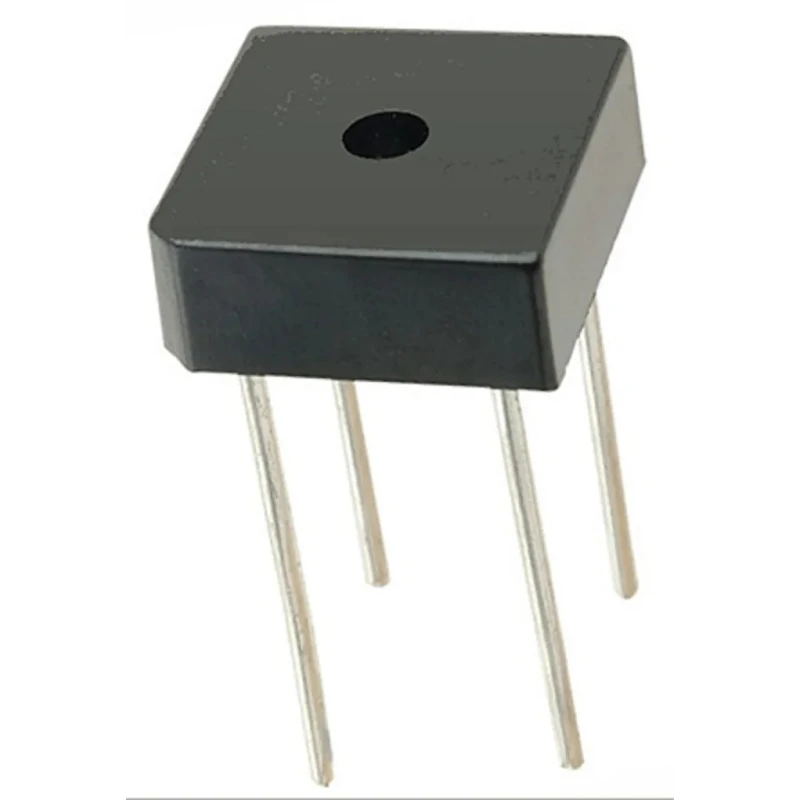

HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single GBPC2510W

HY Electronic Corp GBPC2510W is a high-performance bridge rectifier designed for industrial and electronic applications requiring reliable AC to DC conversion.

This bridge rectifier features a peak reverse repetitive voltage of 1000 V and a forward current of 25 A, making it suitable for heavy-duty use. Its glass passivated junction design ensures consistent performance and protection against environmental factors.

The device is constructed with solder 0.25 fast on terminals, facilitating easy mounting through a through-hole technique, compatible with standard PCB layouts. It supports a maximum operating temperature of up to 150°C and minimum of -50°C, ensuring wide operational range in harsh environments.

The GBPC2510W supports a peak non-repetitive forward surge current of 300 A with surge overload protection between 300 A and 450 A peaks, providing robustness against transient currents. Its low peak forward voltage of 1.1 V helps minimize power loss, improving overall circuit efficiency. The electrically isolated base rated at 2000 V enhances user safety during operation.

Compact with 29 mm length and width and an 11.23 mm height, this rectifier fits efficiently into electronic assemblies. Certified materials carry U/L recognition, assuring quality and safety standards.

Ideal for PCB circuitry, renewable energy systems, industrial power supplies, and other power conversion applications, the GBPC2510W bridge rectifier combines durability, performance, and ease of use.

Through hole mount type provides stable installation. Glass passivated package ensures high reliability and durability. Operates efficiently at maximum temperatures up to 150°C. Forward current rating of 25 A suits various AC to DC conversion applications.

Equipped with solder 0.25 fast on terminals for easy PCB integration. Peak forward voltage drop is low at 1.1 V ensuring energy efficiency. Designed for surge overloads from 300 A to 450 A, enhancing robustness. Electrical isolation base withstands 2000 V for safe operation.

Material certified with U/L recognition for quality assurance. Compact dimensions: 29 mm length, 29 mm width, 11.23 mm height.
