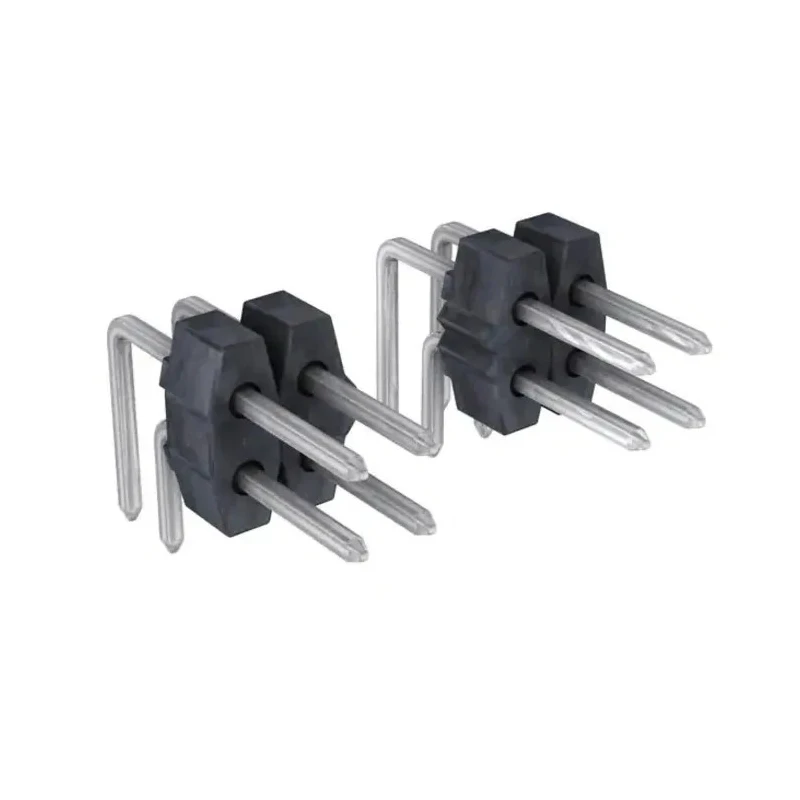

Molex C-Grid III Series Right Angle Through Hole Pin Header, 10 Contacts, 2 Rows, 2.54 mm Pitch, 350V, 3A 901220125

Molex 901220125 C-Grid III Series Right Angle Through Hole Pin Header is an industrial-grade PCB connector designed for reliable wire-to-board electrical connections in electronic assemblies. This pin header features 10 male contacts arranged in 2 rows with a standard 2.54 mm pitch, making it compatible with a wide range of PCB designs and industry-standard socket connectors.

The right angle orientation allows for compact and efficient board layouts, especially where vertical clearance is limited. The polyester housing provides strong mechanical stability while being lightweight. Contacts are made of brass plated with tin for excellent conductivity and corrosion resistance, ensuring durability in harsh environments.

Operating temperature ranges from -55°C to 125°C, accommodating various industrial, commercial, and laboratory applications. The connector is rated for 3 amperes and 350 volts, suitable for low to medium power applications in electronics manufacturing, telecommunications equipment, and instrumentation.

The through-hole mounting type ensures secure soldered connections on printed circuit boards, with tail pins measuring 2.9 mm and mating pins 6.75 mm in length to facilitate robust mechanical and electrical interfacing. The unshrouded design allows for straightforward access to pins during assembly and maintenance.

This product meets UL E29179 safety standards, affirming its compliance to stringent quality and electrical safety requirements. Manufactured in Indonesia, it reflects modern production standards and quality controls typical of Molex components.

Ideal use cases include electronics manufacturing, industrial control panels, telecom systems, instrumentation devices, and other PCB-based assemblies requiring reliable pin header connectivity.

Right angle, 10 contacts, 2 rows with 2.54 mm pitch for standard interface compatibility. Durable polyester housing paired with tin-plated brass contacts for enhanced reliability. Operational temperature from -55°C to 125°C suits diverse climates and environments.

Through hole mount ensures firm mechanical hold on PCB for long-term use. Unshrouded configuration for ease of assembly and testing. Discover comprehensive Molex connector options and other PCB headers in the Electronics Components category at EnvMart for all your industrial and electronic assembly needs.
