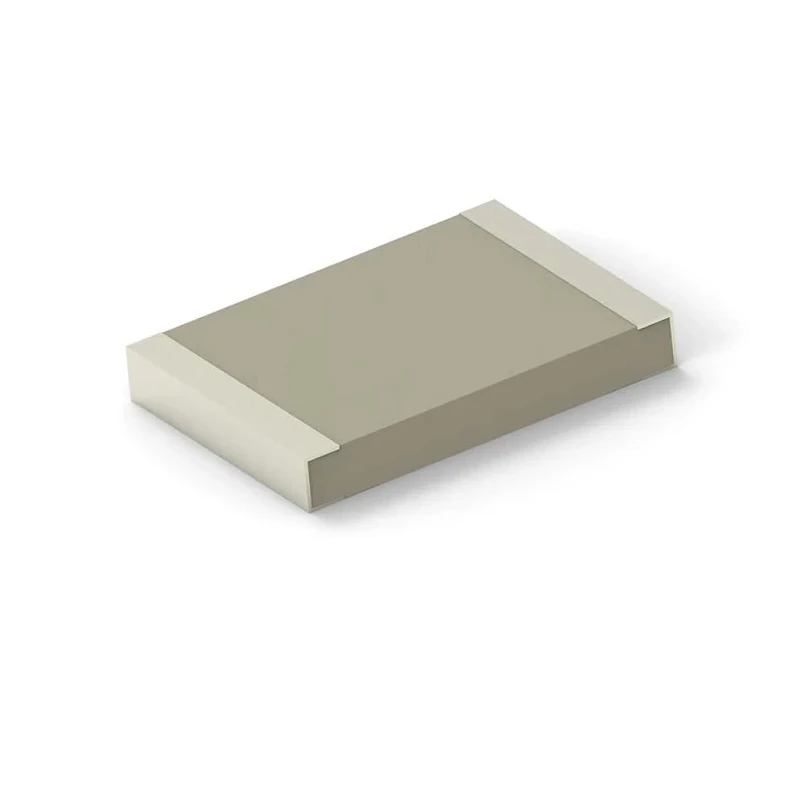

TE Connectivity GPS Antenna Embedded Ceramic Chip Surface Mount 1570MHz-1615MHz 3.2dBi Gain 2195764-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Series | Standard Antenna Solutions |
| Gain | 3.2dBi |
| Standards/Approvals | RoHS Compliant |
| Maximum Frequency | 1615MHz |
| Minimum Frequency | 1570MHz |
| Antenna Physical Form | Chip |
| Antenna Mount Type | Surface |
| Antenna Internal Construction | Embedded Ceramic Chip Antenna |
| Antenna Style | Embedded |
| Antenna Protocol | GPS, Glonass |
| Wireless Application | 5G, GPS |
Key Features
- This GPS antenna features an embedded ceramic chip design for reliable signal reception.
- Operates within the GNSS band supporting GPS and GLONASS protocols.
- Surface mount type antenna suitable for PCB integration.
- Offers gain of 3.2 dBi providing enhanced signal strength and quality.
- Meets RoHS compliance ensuring environmental and safety standards.
- Supports wireless applications including 5G and GPS technologies.
Product Description
TE Connectivity 2195764-1 GPS Antenna is an embedded ceramic chip antenna designed for high-performance GNSS band applications. With a minimum frequency of 1570MHz and a maximum frequency of 1615MHz, this chip antenna supports GPS and GLONASS protocols to provide precise location tracking. The surface mount type enables easy integration directly onto printed circuit boards, making it ideal for electronic and telecommunication devices.
The antenna incorporates an embedded ceramic patch construction that ensures consistent signal gain of 3.2 dBi, enhancing reception quality for wireless communication systems including 5G and GPS applications. It complies with RoHS standards, demonstrating conformance with environmental regulations for electronic components.
Manufactured in China, this TE Connectivity antenna belongs to the Standard Antenna Solutions series, optimized for reliable performance in industrial, commercial, and consumer electronics contexts. Its compact chip form factor suits design requirements where space and efficiency are critical.
Typical use cases include integration into GPS receivers, wearable devices, tracking systems, and communication modules that demand robust satellite signal acquisition and monitoring.
This GPS Antenna features an embedded ceramic chip design for reliable signal reception. Operates within the GNSS band supporting GPS and GLONASS protocols. Surface mount type antenna suitable for PCB integration. Offers gain of 3.2 dBi providing enhanced signal strength and quality.
Meets RoHS compliance ensuring environmental and safety standards. Supports wireless applications including 5G and GPS technologies. Explore more specialized antennas and related electronic components in the Electronics Components category at EnvMart for comprehensive industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna operates within a frequency range of 1570MHz to 1615MHz.
Yes, it meets RoHS compliance, ensuring it adheres to environmental and safety standards.
This model is a surface mount type antenna, suitable for direct integration onto printed circuit boards (PCBs).
It supports GPS and GLONASS protocols for precise location tracking.
The antenna features an embedded ceramic chip construction, designed for reliable signal reception.
It supports wireless applications including 5G and GPS technologies.
The antenna has a chip physical form factor, making it compact and efficient for various designs.
This GPS antenna is manufactured in China.
It belongs to the Standard Antenna Solutions series by TE Connectivity.
There are no combination attributes listed for this model.
