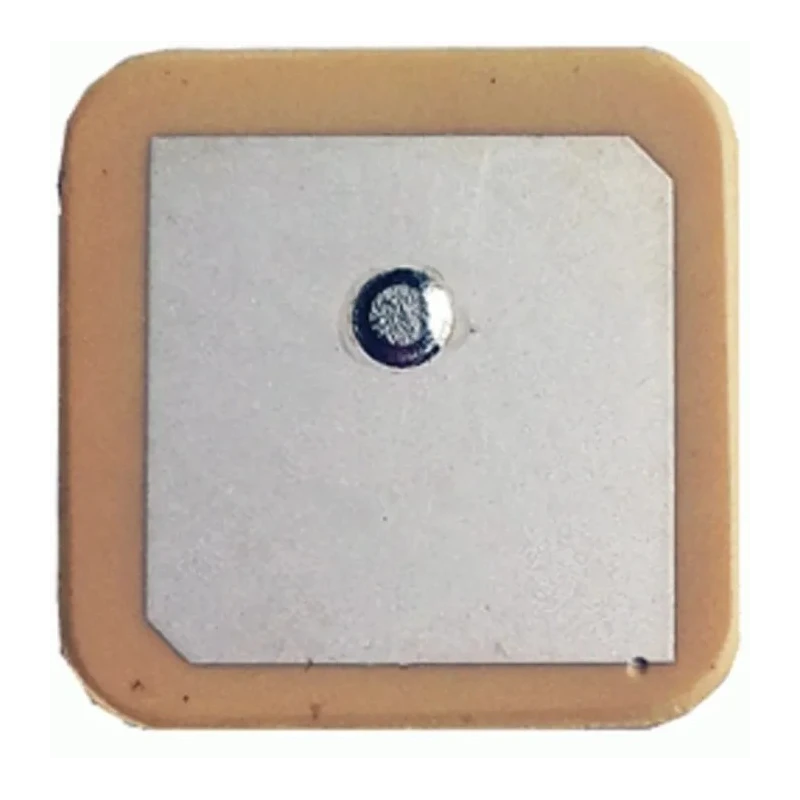

Abracon Internal Patch GPS Antenna with SMA Connector, 1575MHz to 1608MHz, GLONASS, GPS APAE1590R2540AKDB1-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Model | APAE1590R2540AKDB1-T |
| Connector Type | SMA |
| Bandwidth | 1608MHz |
| Series | APAE1590R2540AKDB1-T |
| Standards/Approvals | RoHS/RoHS II |
| Maximum Frequency | 1608MHz |
| Minimum Frequency | 1575MHz |
| Internal/External | Internal |
| RF Protocols | GLONASS, GPS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Through Hole |
| Number of Bands | 2 |
Key Features
- Compact patch antenna design with dimensions 25 x 25 x 4 mm.
- Designed with SMA connector for secure and reliable connection.
- Suitable for automotive navigation and marine buoy applications.
- Optimal for use in surveying equipment, PDAs, and portable navigation devices.
- Supports dual bands with a bandwidth up to 1608 MHz.
- Compliant with RoHS and RoHS II environmental standards.
- Ideal for healthcare and medical monitoring device integration.
- Pin type mount with through-hole antenna installation.
Product Description
Abracon APAE1590R2540AKDB1-T is an internal patch GPS antenna designed for high performance in the 1575.42 MHz to 1608 MHz frequency band, supporting both GPS and GLONASS satellite systems. It features a compact form factor with 25 x 25 x 4 mm dimensions and uses a pin-type through-hole mount for secure PCB installation.
This antenna incorporates a standard SMA connector, ensuring compatibility with various communication and navigation equipment requiring robust and low-loss connections.
The design emphasizes high gain performance and low profile to maintain signal quality in automotive navigation systems, marine buoys, surveying tools, cell phones, laptops, PDAs, and medical monitoring devices.
With dual-band capability and a bandwidth of up to 1608 MHz, this antenna effectively receives satellite signals across its operating range. RoHS and RoHS II compliance affirm its adherence to environmental safety standards.
Applications include industrial, automotive, marine, surveying, communication, healthcare, and portable navigation domains, making it a versatile component for integration into GPS systems.
Compact patch antenna with 25 x 25 x 4 mm size. Supports GPS and GLONASS RF protocols. SMA connector type for reliable connectivity. Dual-band operation with bandwidth up to 1608 MHz. Pin type, through-hole mount antenna installation.
Meets RoHS and RoHS II environmental standards. Ideal for automotive navigation and marine applications. Suitable for use in medical and portable navigation devices. Explore the GPS Antenna category on EnvMart for compatible Abracon antennas and related electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna operates within a frequency range of 1575 MHz to 1608 MHz, supporting both GPS and GLONASS satellite systems.
This model has compact dimensions of 25 x 25 x 4 mm, making it suitable for various applications.
It features an SMA connector, which ensures a secure and reliable connection for various communication and navigation equipment.
The antenna uses a pin-type through-hole mount for secure installation on PCBs.
This model is ideal for automotive navigation, marine buoy applications, surveying equipment, PDAs, and portable navigation devices.
It is compliant with RoHS and RoHS II environmental standards, ensuring safety and environmental responsibility.
The antenna supports a bandwidth of up to 1608 MHz, allowing effective reception of satellite signals.
The antenna is designed in a patch form factor, which is compact and efficient for internal applications.
The country of origin for this antenna is India.
It supports RF protocols for both GLONASS and GPS, enhancing its functionality in navigation systems.
Yes, it is suitable for integration into healthcare and medical monitoring devices due to its compact design and performance.
