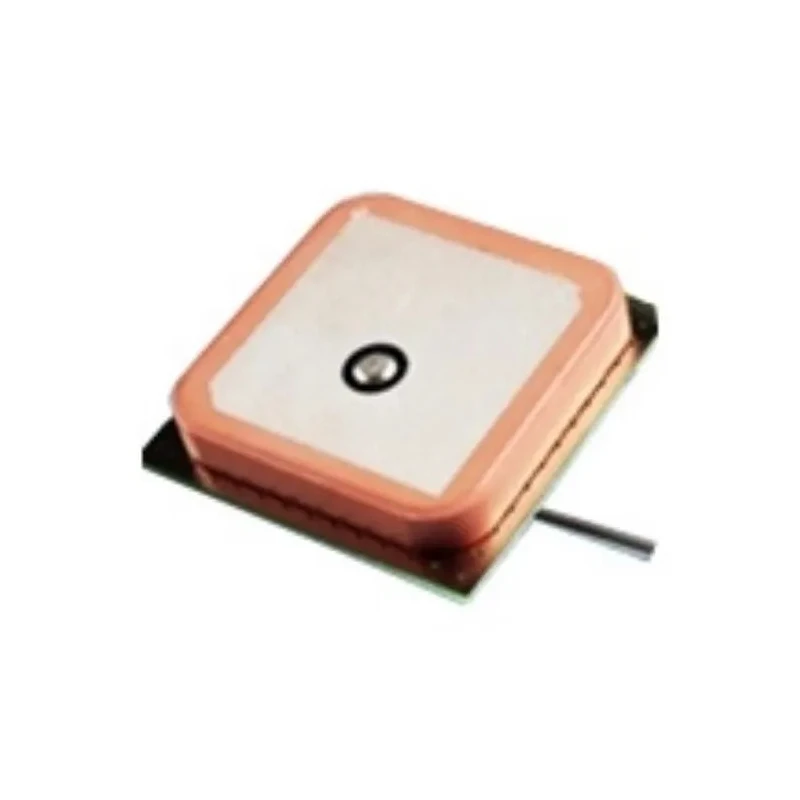

Abracon Internal Patch GPS Antenna with IPEX Connector 50mm Lead Length 1575.42MHz 28dB Gain APAM2764YK0175
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Model | APAM2764YK0175 |
| Connector Type | IPEX |
| Bandwidth | 5MHz |
| Series | APAM2764YK0175 |
| Gain | 28dB |
| Lead Length | 50mm |
| Standards/Approvals | RoHS/RoHS II |
| Maximum Frequency | 1575.42MHz |
| Minimum Frequency | 1575.42MHz |
| Internal/External | Internal |
| RF Protocols | GPS, GNSS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | PCB |
| Antenna Internal Construction | Dielectric Ceramic |
Key Features
- This antenna is an internal patch type suitable for PCB mounting.
- Features a 50mm lead length with an IPEX connector for easy integration.
- Operates at a fixed frequency of 1575.42 MHz with a 5 MHz bandwidth.
- Constructed with dielectric ceramic for reliable performance.
- Offers a high gain of 28 dB for enhanced signal quality.
- Supports GPS and GNSS RF protocols for versatile applications.
- Complies with RoHS and RoHS II standards ensuring environmental safety.
- Compact and easy to install, suitable for healthcare, medical monitoring, and surveying equipment.
Product Description
The Abracon APAM2764YK0175 is a high-performance internal patch GPS antenna designed for precise GPS and GNSS signal reception. With a frequency centered at 1575.42 MHz and a 5 MHz bandwidth, this antenna supports accurate positioning applications across various industries.
Its patch design allows for PCB mounting and integration within compact electronics. The antenna includes a 50mm lead equipped with an IPEX connector, enabling simple connections to devices such as healthcare monitors, personal navigation devices, PDAs, and surveying instruments.
Manufactured using dielectric ceramic, the APAM2764YK0175 ensures durability and stable signal quality with an impressive 28 dB gain. This makes it suitable for environments demanding reliable and strong GPS signals.
The antenna complies with RoHS and RoHS II environmental standards, highlighting its eco-friendly production and use. Operating reliably across a temperature range from -45 to +85 °C, it is well suited for diverse industrial, healthcare, and commercial applications.
Ideal for integration in healthcare and medical monitoring devices, personal navigation and surveying tools, and mobile phones, this antenna balances compact size with effective performance.
This antenna is an internal patch type suitable for PCB mounting. Features a 50mm lead length with an IPEX connector for easy integration. Operates at a fixed frequency of 1575.42 MHz with a 5 MHz bandwidth. Constructed with dielectric ceramic for reliable performance.
Offers a high gain of 28 dB for enhanced signal quality. Supports GPS and GNSS RF protocols for versatile applications. Complies with RoHS and RoHS II standards ensuring environmental safety. Compact and easy to install, suitable for healthcare, medical monitoring, and surveying equipment.
Explore more GPS Antennas and electronics components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a fixed frequency of 1575.42 MHz.
This unit features an IPEX connector for easy integration.
The lead length of this model is 50mm.
It has a bandwidth of 5 MHz.
The antenna is constructed with dielectric ceramic for reliable performance.
It complies with RoHS and RoHS II standards, ensuring environmental safety.
This model operates reliably across a temperature range from -45 to +85 °C.
This unit is designed as an internal patch type suitable for PCB mounting.
It is suitable for healthcare, medical monitoring, and surveying equipment.
The antenna has a patch physical form, which allows for compact integration.
