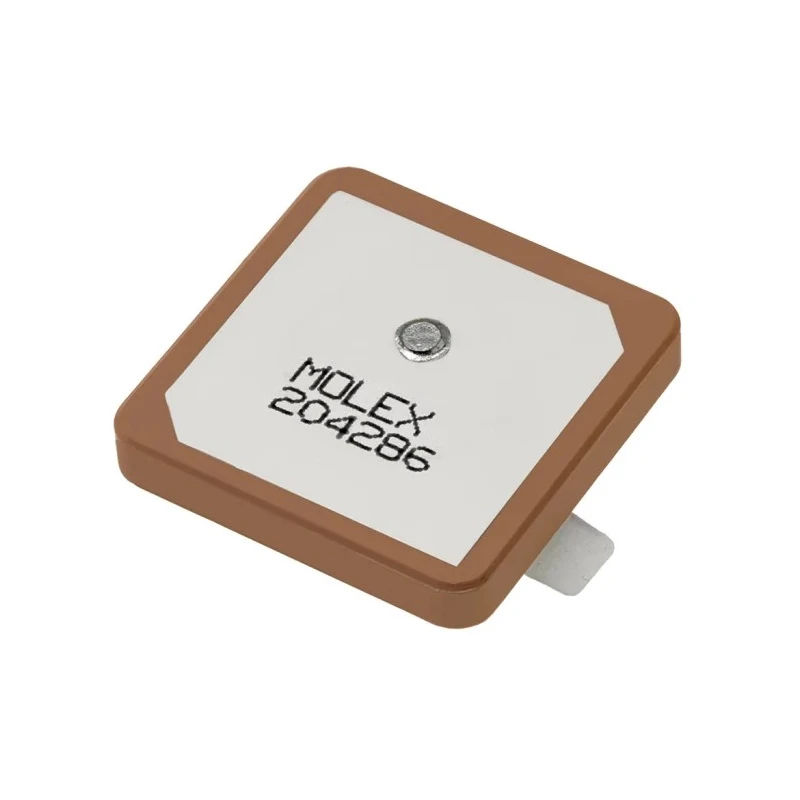

Molex Square Omni-Directional GPS Antenna, Surface Mount, 1556 - 1607MHz, 5.6dBi Gain, 204286-0001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | Surface Mount |
| Series | 204286 |
| Gain | 5.6dBi |
| Standards/Approvals | EU ELV Not Relevant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), Halogen-Free Status Low-Halogen, EU RoHS China RoHS Compliant |
| Maximum Frequency | 1607MHz |
| Minimum Frequency | 1556MHz |
| Internal/External | Internal |
| RF Protocols | GPS |
| Antenna Physical Form | Square |
| Directivity | Omni-Directional |
| Number of Bands | 3 |
Key Features
- Omni-directional internal square antenna for wide coverage.
- Operates across 1556MHz to 1607MHz frequency range.
- Gain of 5.6dBi for robust GPS signal reception.
- Surface mount connector ensures secure, reliable PCB integration.
- Supports multiple positioning systems including GPS, BeiDou, Galileo, and GLONASS.
- Ceramic construction with low-halogen material for enhanced durability.
- Complies with RoHS, REACH, and China RoHS requirements.
- Recommended for industrial, automotive, IoT, and consumer GPS modules.
Product Description
Molex 204286-0001 Square Omni-Directional GPS Antenna is designed to deliver high-performance signal reception for positioning and navigation modules in demanding electronic applications. The antenna features a compact square form factor integrating seamlessly onto PCBs through a robust surface-mount connector.
This ceramic SMT antennna operates internally within devices, supporting a frequency range of 1556MHz to 1607MHz. It is optimized for use with GPS, GLONASS, Galileo, and BeiDou systems, making it suitable for multi-constellation positioning modules in industrial, automotive, IoT, drone, and consumer devices.
With an omni-directional directivity and up to 5.6dBi gain, the antenna ensures consistent reception regardless of device orientation. It supports up to three frequency bands, allowing for reliable tracking and positioning accuracy even in challenging RF environments.
The antenna is manufactured using low-halogen, RoHS and REACH-compliant ceramic materials, ensuring both regulatory compliance and robust long-term performance. The surface mount interface provides permanent assembly with improved shock and vibration tolerance, essential for automotive and industrial electronics.
Omni-directional internal square antenna for wide coverage. Operates across 1556MHz to 1607MHz frequency range. Gain of 5.6dBi for robust GPS signal reception. Surface mount connector ensures secure, reliable PCB integration.
Supports multiple positioning systems including GPS, BeiDou, Galileo, and GLONASS. Ceramic construction with low-halogen material for enhanced durability. Compact size: 25mm long, 4mm thick for space-limited designs. Complies with RoHS, REACH, and China RoHS requirements.
Recommended for industrial, automotive, IoT, and consumer GPS modules.
This antenna is recommended for applications in fleet management, asset tracking, smart meters, drones, navigation systems, and general industrial automation. Its compact, surface-mountable shape makes it ideal for modern SMT assembly lines and high-volume electronics manufacturing.
Explore more industrial antennas, communication modules, and surface-mount components from Molex in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates across a frequency range of 1556MHz to 1607MHz.
It provides a gain of 5.6dBi for robust GPS signal reception.
It supports multiple positioning systems including GPS, GLONASS, Galileo, and BeiDou.
The antenna has a square physical form factor, making it suitable for compact installations.
It features a surface mount connector for secure integration onto PCBs.
This model supports up to three frequency bands for improved tracking and positioning accuracy.
It measures 25mm in length and 4mm in thickness, making it suitable for space-limited designs.
Yes, it complies with RoHS, REACH, and China RoHS requirements, ensuring regulatory compliance.
It is constructed from low-halogen ceramic materials, enhancing durability and compliance.
The antenna is manufactured in China.
This model features omni-directional directivity, ensuring consistent reception regardless of device orientation.
