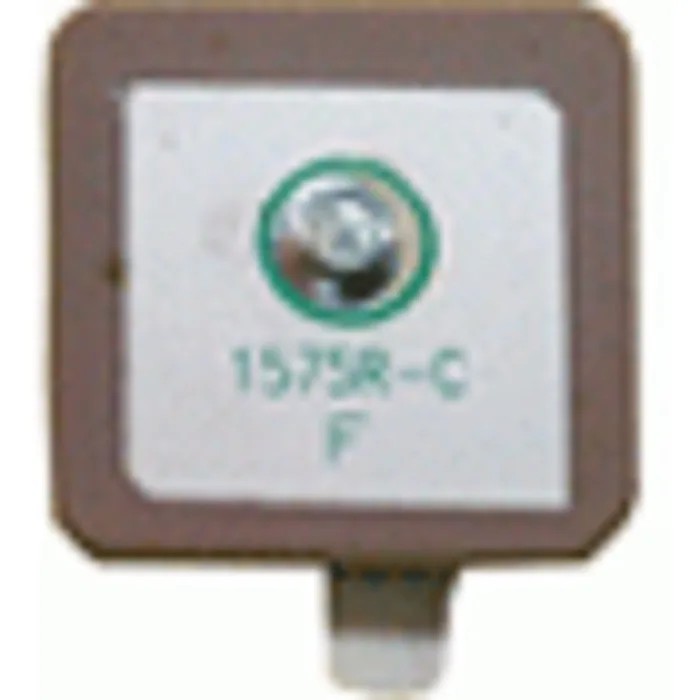

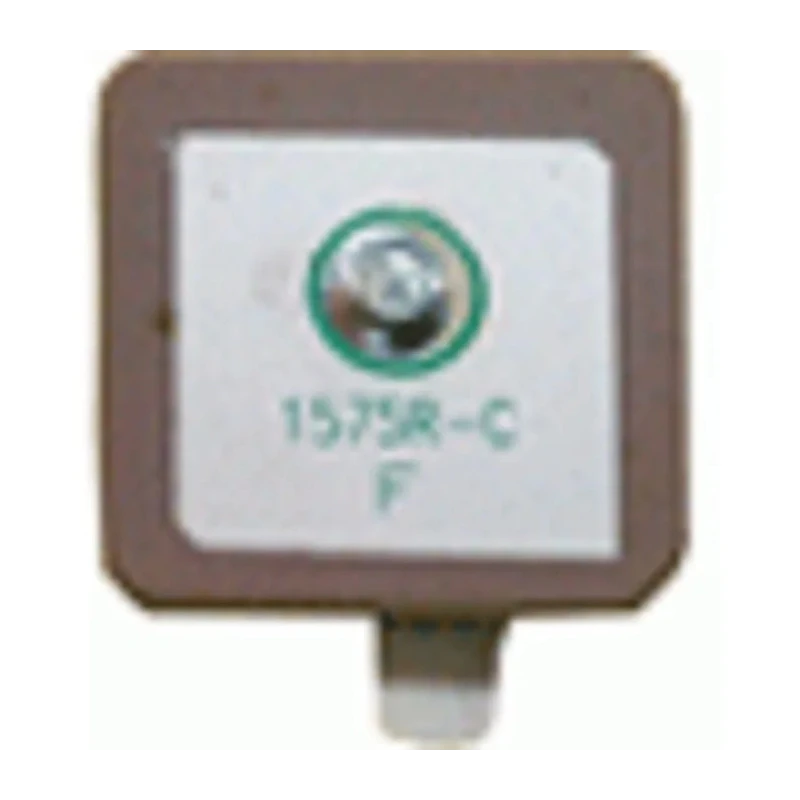

Abracon Internal Patch GPS Antenna with SMA Connector 1575.42MHz 3.3dB Gain APAE1575R1820ABDC1-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Model | APAE1575R1820ABDC1-T |
| Connector Type | SMA |
| Bandwidth | 4.5MHz |
| Series | APAE1575R1820ABDC1-T |
| Gain | 3.3dB |
| Standards/Approvals | RoHS, ISO9001:2008 |
| Maximum Frequency | 1575.42MHz |
| Minimum Frequency | 1575.42MHz |
| Internal/External | Internal |
| RF Protocols | GPS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Through Hole |
| Standards/ApprovalsRoHS, ISO9001 | 2008 |
| RoHS, ISO9001 | 2008 |
Key Features
- Compact size with dimensions 18.0 x 18.0 x 2.0 mm for easy integration.
- Uses a through-hole mount type for secure PCB attachment.
- Operates at a bandwidth of 4.5MHz optimized for GPS systems.
- High gain of 3.3dB ensures enhanced signal sensitivity.
- Internal antenna designed for automotive navigation and marine buoys.
- Suitable for surveying equipment, cell phones, laptops, and portable navigation devices.
- Low profile patch design allows for versatile installation in compact devices.
- Pin type connector enhances durability and reliable electrical contact.
Product Description
The Abracon APAE1575R1820ABDC1-T is a high-performance internal patch GPS antenna designed for demanding GPS applications operating at the 1575.42MHz frequency. It features a compact form factor measuring 18.0 x 18.0 x 2.0 mm with a low-profile patch design, making it suitable for integration within space-constrained electronic devices.
The antenna employs a through-hole mount type to ensure a robust mechanical and electrical connection on circuit boards. It delivers a gain of 3.3dB, enhancing signal sensitivity, which is critical for applications such as automotive navigation, marine buoys, and surveying equipment.
This GPS antenna supports a bandwidth of 4.5MHz, tailored for the GPS RF protocol, ensuring reliable signal reception. The antenna includes an SMA connector type for easy interfacing with GPS modules and receivers. It is designed as a pin type, improving connectivity durability.
Applications extend to cell phones, laptops, healthcare and medical monitoring devices, personal navigation devices (PND), and portable digital assistants (PDA). Its RoHS and ISO9001:2008 certifications manifest adherence to environmental and quality standards.
The antenna also offers customization possibilities, allowing adaptation to specific technical requirements. Compact size with 18.0 x 18.0 x 2.0 mm dimensions. Internal mount type with a through-hole design for secure PCB integration.
SMA connector for reliable electrical connectivity. Operates precisely at GPS frequency of 1575.42MHz with 4.5MHz bandwidth. High gain of 3.3dB for enhanced reception sensitivity. Suitable for diverse applications including automotive and marine navigation.
Low-profile patch form factor supports versatile device integration. RoHS and ISO9001:2008 compliant. Pin type for durable connection. Customization options available.
This antenna is essential for professionals working in industrial, automotive, marine, and telecommunications fields requiring dependable GPS signal reception in compact form factors. Explore more on EnvMart for quality GPS Antennas and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This GPS antenna operates at a maximum frequency of 1575.42MHz, which is standard for GPS applications.
The gain of this model is 3.3dB, which enhances its signal sensitivity for GPS applications.
The antenna operates with a bandwidth of 4.5MHz, optimized for the GPS RF protocol.
This model has compact dimensions of 18.0 x 18.0 x 2.0 mm, making it suitable for integration in space-constrained devices.
It employs a through-hole mount type, ensuring a robust mechanical and electrical connection on circuit boards.
This antenna is suitable for automotive navigation, marine buoys, surveying equipment, cell phones, laptops, and portable navigation devices.
The antenna has a patch physical form, designed for low-profile installation in various electronic devices.
Yes, it is compliant with RoHS and ISO9001:2008 standards, indicating adherence to environmental and quality regulations.
Yes, there are customization possibilities available to adapt the antenna to specific technical requirements.
It is designed for applications requiring dependable GPS signal reception, including automotive and marine navigation.
The country of origin for this model is India.
