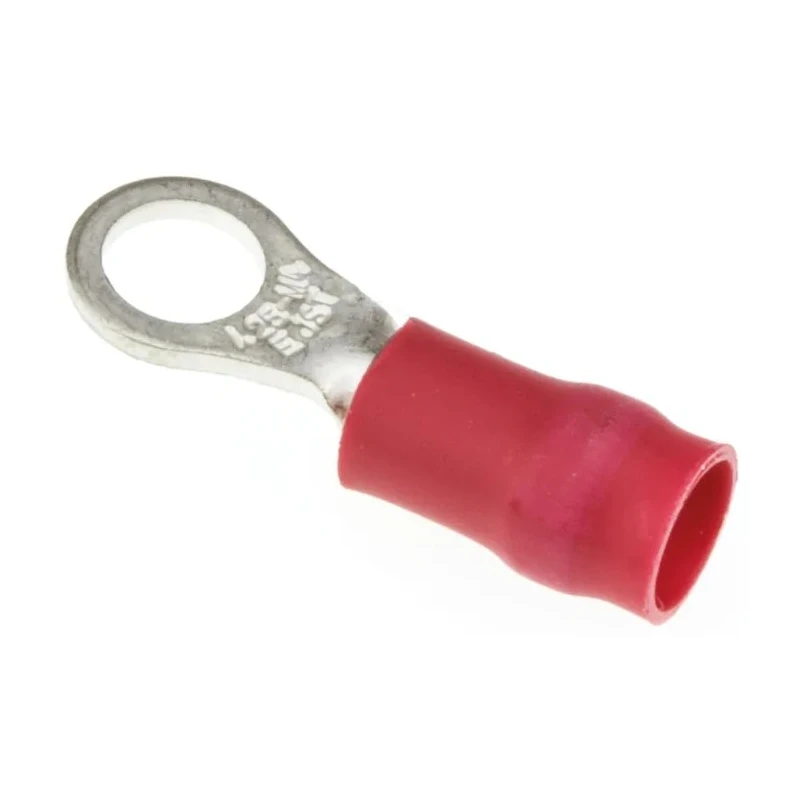

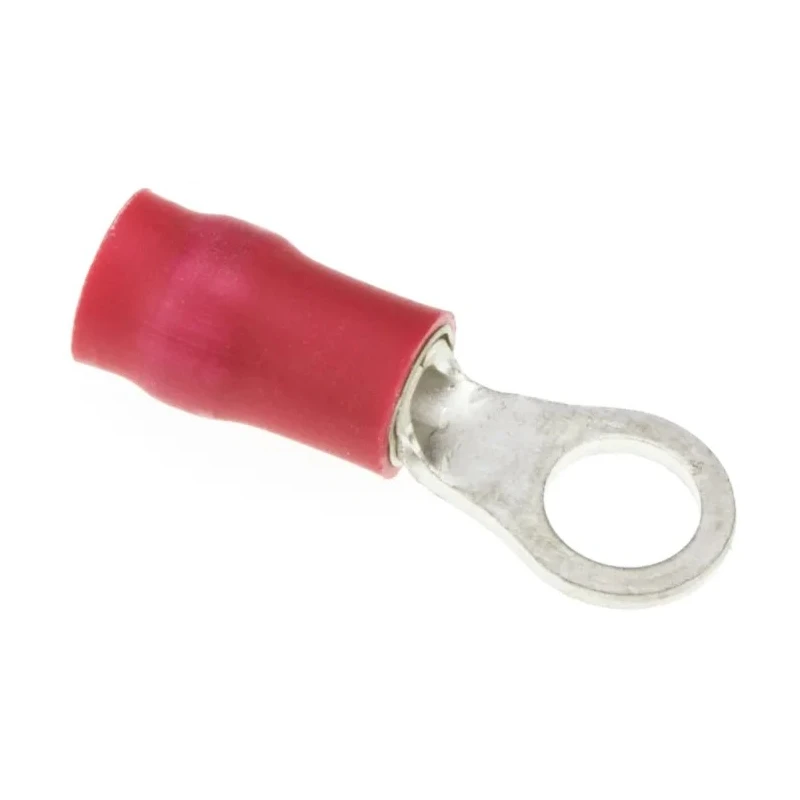

JST R Insulated Ring Terminal 4 mm Stud Size 22 AWG to 16 AWG Wire Size, Vinyl Insulation, Red FVDWS1.25-M4(LF)K

JST FVDWS1.25-M4(LF)K insulated ring terminal is engineered for reliable electrical connectivity with 4 mm stud size compatibility and wire sizes ranging from 22 AWG to 16 AWG. The terminal features oxygen free copper contact material, ensuring excellent conductivity and high-performance in both industrial and electronic component applications.

The vinyl insulation provides high flame resistance and protects against electrical hazards, making it suitable for demanding environments. The flared vinyl insulation and butted seam construction contribute to secure crimps and enhanced terminal lifespan.

This ring terminal's robust design includes a 0.8 mm insulation thickness and an overall length of 19.2 mm. Its compact size with a 4.3 mm inner ring diameter and a 6.6 mm outer ring diameter ensures a snug and secure fit around studs, supporting stable and long-term connections.

Designed to operate in temperatures up to 105°C, this terminal is ideal for various industrial, electronic, and power connector applications including automation systems, manufacturing equipment wiring, and electrical installations. The red color coding distinctly identifies the wire size compatibility, facilitating efficient assembly processes.

The JST R-type Ring Terminal is a proven solution for reliable crimp connections, featuring high-strength brazing and vinyl insulation that resists environmental deterioration. It complies with no specific standards or approvals but follows industry best practices for electrical connector manufacturing.

Constructed with oxygen free copper for excellent electrical conductivity. Vinyl insulation ensures high flame resistance and protects against electrical shocks. Red color coding for easy wire size identification. Overall length of 19.2 mm with 0.8 mm thick insulation.

Designed with flared entry and high-strength brazing for durability. Suitable for crimping applications in industrial and electronic assemblies. Operates reliably at temperatures up to 105°C. Inner ring diameter 4.3 mm and outer ring diameter 6.6 mm designed for secure stud fitment.

Compatible with wire cross-section sizes from 0.25 mm² to 1.65 mm².

This product is categorized under Electronics & Electricals for applications in industrial, electronic components, power connectors, and electrical wiring assembly scenarios. Browse the EnvMart Electronics Components category for additional terminal types and connector accessories.
