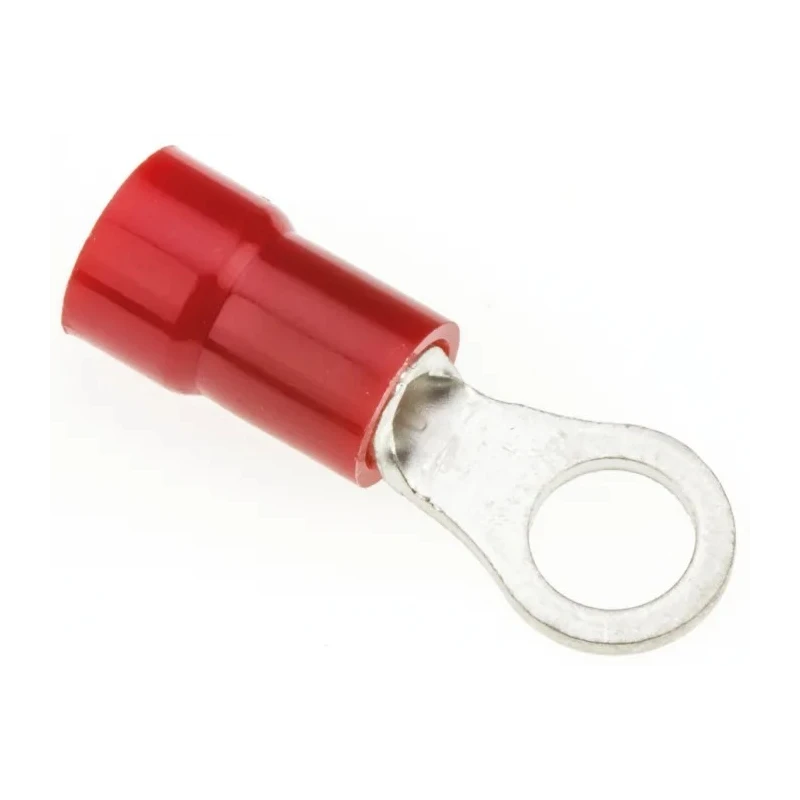

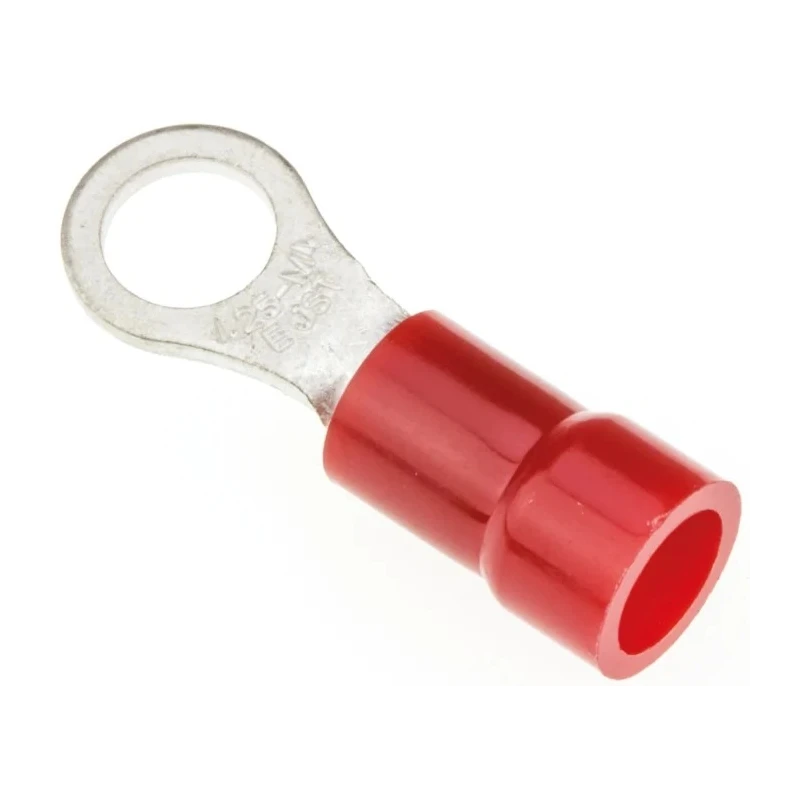

JST R Insulated Ring Terminal 4 mm Stud Size 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red FN1.25-M4
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | FN1.25-M4 |
| Insulation | Insulated |
| Overall Length | 18.6mm |
| Series | R |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 6.6mm |
| Inner Ring Diameter | 4.3mm |
| Stud Size | 4 mm |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
| RS PRO Insulated Ring Terminal, M4 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
| JST, R Insulated Ring Terminal, 4 mm Stud Size 22 AWG 16 AWG Wire Size, RedBrand | JST |
Key Features
- The terminal is made of oxygen-free copper ensuring excellent electrical conductivity.
- Nylon insulation provides high flame resistance and durable insulation.
- Supports wire sizes from 22 AWG to 16 AWG (0.25 mm² to 1.65 mm²).
- Overall length of the terminal is 18.6 mm with a thickness of 0.8 mm.
- Red color coding allows quick visual wire gauge identification.
- Suitable for industrial, electronic, and electrical wiring applications.
- Offers high temperature resistance up to 105°C for reliable performance.
Product Description
JST FN1.25-M4 insulated ring terminal is specifically engineered for industrial and electronic applications requiring secure wire connections with a 4 mm stud. It accommodates wire sizes from 22 AWG to 16 AWG and incorporates high-grade oxygen-free copper for optimal electrical performance and reduced resistance.
The nylon insulation not only resists high temperatures up to 105°C but also ensures excellent electrical insulation and flame resistance, making it suitable for demanding environments, including manufacturing and electrical control panels.
Key dimensional features include a 6.6 mm outer ring diameter, 4.3 mm inner ring diameter, 18.6 mm overall length, and 0.8 mm thickness, providing a robust and reliable crimping interface.
Compliance with RoHS directives and ANSI/ESD S20.20:2021 electrostatic discharge control standards guarantees safe and environmentally responsible use. This red insulated Ring Terminal is widely used in industrial electronics, power connectors, and wire splicing applications, ensuring secure terminations and system stability.
The terminal is made of oxygen-free copper ensuring excellent electrical conductivity. Nylon insulation provides high flame resistance and durable insulation. Supports wire sizes from 22 AWG to 16 AWG (0.25 mm² to 1.65 mm²).
Overall length of the terminal is 18.6 mm with a thickness of 0.8 mm. Designed to meet RoHS compliance and ANSI/ESD S20.20:2021 electrostatic control standards. Red color coding allows quick visual wire gauge identification.
Suitable for industrial, electronic, and electrical wiring applications. Offers high temperature resistance up to 105°C for reliable performance. Explore more electronic connectors and components in EnvMart's Electronics & Electricals category for advanced industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 16 AWG, which corresponds to a cross-sectional area of 0.25 mm² to 1.65 mm².
The overall length of the terminal is 18.6 mm, and it has a thickness of 0.8 mm.
It features nylon insulation, which provides high flame resistance and durable electrical insulation.
This ring terminal is designed for a 4 mm stud size.
The outer ring diameter is 6.6 mm, and the inner ring diameter is 4.3 mm.
It can withstand high temperatures up to 105°C, ensuring reliable performance in demanding environments.
Yes, it complies with RoHS directives and ANSI/ESD S20.20:2021 electrostatic discharge control standards.
The terminal is made of oxygen-free copper, which ensures excellent electrical conductivity.
It is suitable for industrial, electronic, and electrical wiring applications, including power connectors and wire splicing.
The terminal is red, allowing for quick visual identification of wire gauge.
The model number of this insulated ring terminal is FN1.25-M4.
The country of origin for this terminal is India.
