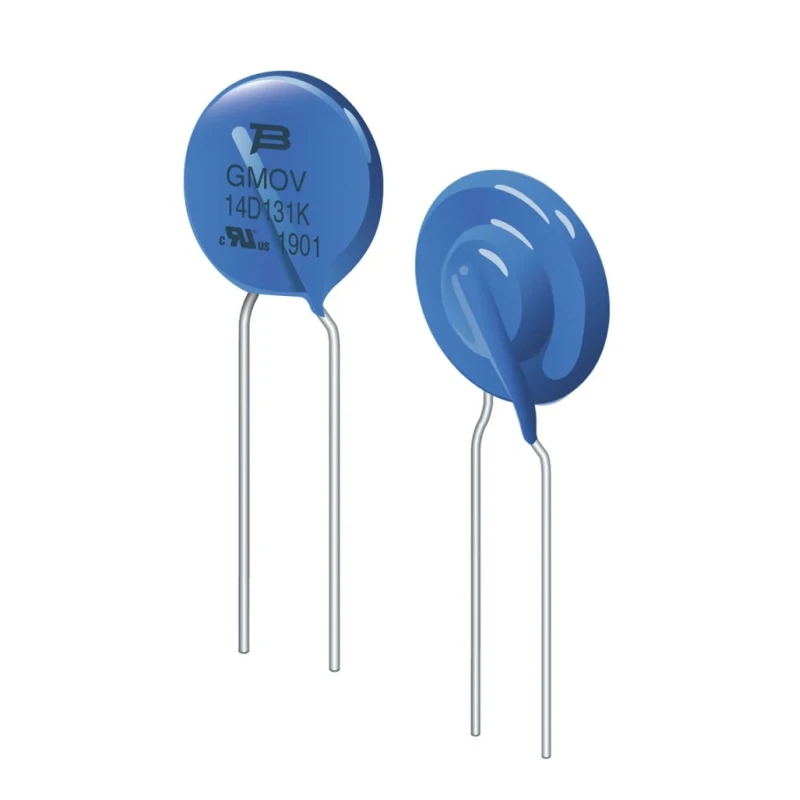

Bourns GMOV Varistor, 4 pF Capacitance, 6000 A Clamping Current, 675 V Clamping Voltage, 320 V DC, 250 Vrms GMOV-14D251K

The Bourns GMOV-14D251K Varistor is a high-performance electrical component designed for surge protection in industrial and electronic systems. This varistor features a hybrid design that allows low leakage current, ensuring minimal interference with normal circuit operations. It is bidirectional, providing effective protection against voltage spikes in both directions.

This disc-type varistor has a capacitance of 4 pF, which maintains signal integrity in sensitive electronic circuits. Rated with a clamping voltage of 675 V and capable of handling clamping current up to 6000 A, it offers robust defense against transient surges and spikes. Its metal construction guarantees durability and consistent performance over a wide range of operating temperatures from -40°C to 85°C.

The component comes in a compact disc package with a diameter of 16.5 mm, a thickness of 8 mm, and a length of 20 mm, utilizing radial mount leads spaced at 7.5 mm pitch for straightforward PCB installation. Its energy rating of 140J means it can absorb significant energy surges typical in industrial environments.

Certified to meet cURus, RoHS, and UL standards, the GMOV-14D251K varistor complies with stringent safety and environmental regulations. It supports a maximum AC voltage of 250 V and maximum DC voltage of 320 V, making it ideal for power and electronic system protection across various commercial and industrial applications.

Capacitance of 4 pF ensures minimal impact on circuit operation. Clamping voltage rated at 675 V provides effective voltage suppression. High clamping current of 6000 A for surge handling capacity. Operates reliably within -40°C to 85°C temperature range.

Compact disc type package with 16.5 mm diameter and 20 mm length. Metal material construction for durability and performance. Radial mount type with 7.5 mm lead pitch for easy PCB integration. Energy rating of 140J suitable for industrial and electronic applications.

Meets cURus, RoHS, and UL standards for safety and environmental compliance. Designed for maximum AC voltage of 250 V and DC voltage of 320 V.

This varistor is well-suited for industrial electronics, power supply lines, and surge protection applications. Its specifications make it a reliable choice for systems requiring consistent voltage regulation and spike suppression.
