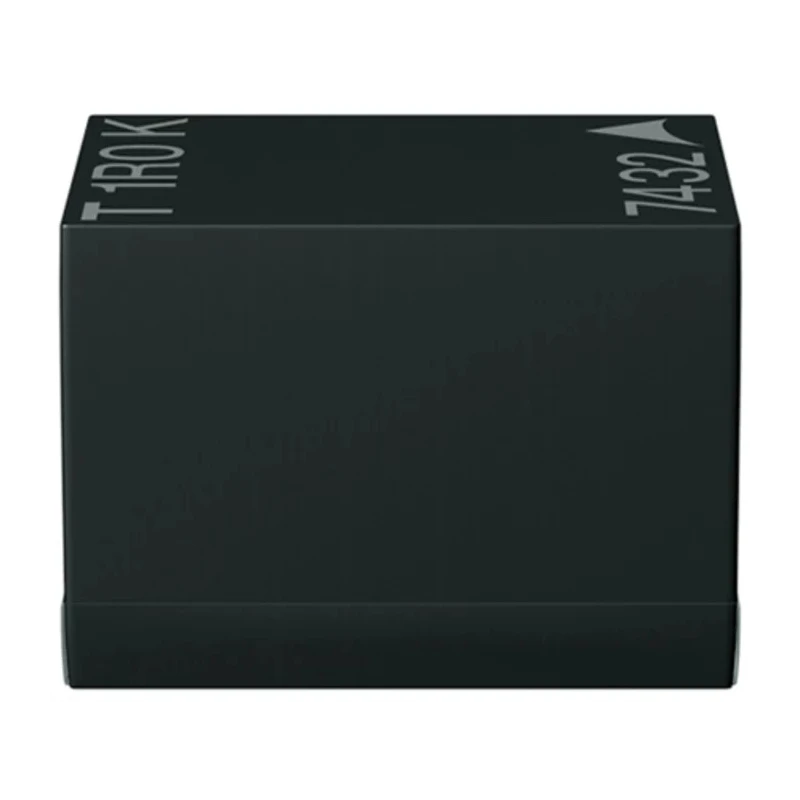

TDK SIMID 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10μH ±10% 650mA DC Current B82432T1103K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | B82432T1103K000 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 650mA |
| Pin Count | 2 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 25MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance value is precisely 10μH with a tolerance of ±10%.
- Maximum DC current rating of 650mA ensures reliable operation.
- Compact 1812 package size suitable for surface mount technology.
- Ferrite core construction provides excellent magnetic shielding.
- Maximum DC resistance is 350mΩ, minimizing power loss.
- Qualified to automotive standard AEC-Q200 for durability.
- Operating temperature range from -55°C to 150°C suitable for harsh environments.
- Packaging supplied in tape & reel format for automated assembly.
Product Description
TDK B82432T1103K000 is a high-quality shielded wirewound Surface Mount Inductor with a ferrite core, providing an inductance of 10μH and a tolerance of ±10%. Designed for demanding industrial and automotive applications, it supports a maximum DC current of 650mA and operates efficiently within a temperature range of -55°C to 150°C.
This 1812 package size component features a low maximum DC resistance of 350mΩ and is compliant with the AEC-Q200 automotive standard, making it highly reliable for automotive electronics, telecommunications, industrial electronics, DC/DC converters, and filtering of supply voltages.
The inductor is fully shielded to reduce electromagnetic interference and has a maximum self-resonant frequency of 25MHz, ensuring stable performance in high-frequency circuits. Packaging in tape & reel format facilitates streamlined assembly processes and production efficiency.
Inductance: 10μH ±10% tolerance. Maximum DC current rating: 650mA. Package: 1812 surface mount. Ferrite core for shielding. Maximum DC resistance: 350mΩ. Automotive standard: AEC-Q200 compliant. Operating temperature range: -55°C to 150°C.
Shielded wirewound construction. Self-resonant frequency: 25MHz maximum. Quality factor: Minimum 10. Applications include automotive electronics such as single-wire bus systems, telecommunications, industrial electronics, DC/DC converters, and supply voltage filtering.
The product is manufactured in Hungary and is RoHS compliant, ensuring adherence to environmental standards. Explore a wide range of inductors and electronic components within EnvMart for all your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is precisely 10μH with a tolerance of ±10%.
It supports a maximum DC current rating of 650mA, ensuring reliable operation in various applications.
The operating temperature range for this unit is from -55°C to 150°C, making it suitable for harsh environments.
The maximum DC resistance is 350mΩ, which helps minimize power loss during operation.
This inductor has a maximum self-resonant frequency of 25MHz, ensuring stable performance in high-frequency circuits.
It features a ferrite core construction, which provides excellent magnetic shielding.
The dimensions of this inductor are 4.5mm in length, 3.2mm in height, and 3.2mm in depth.
It is supplied in tape & reel format, which facilitates automated assembly processes.
Yes, it is qualified to the automotive standard AEC-Q200 and is RoHS compliant.
The minimum quality factor is 10, indicating its efficiency in energy storage.
This model is suitable for automotive electronics, telecommunications, industrial electronics, DC/DC converters, and supply voltage filtering.
The termination style for this unit is solder, which is standard for surface mount technology.
