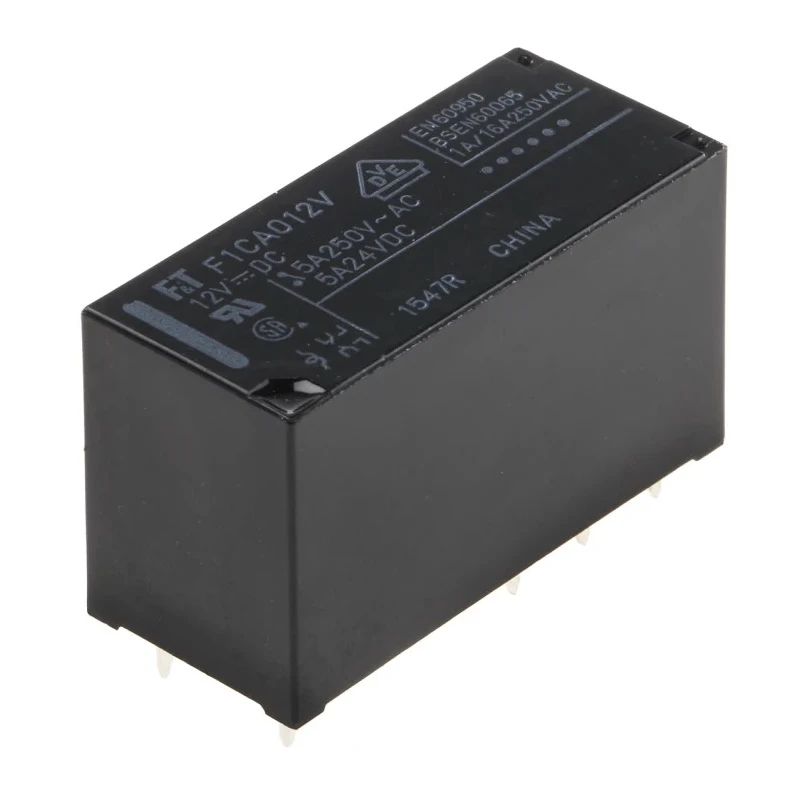

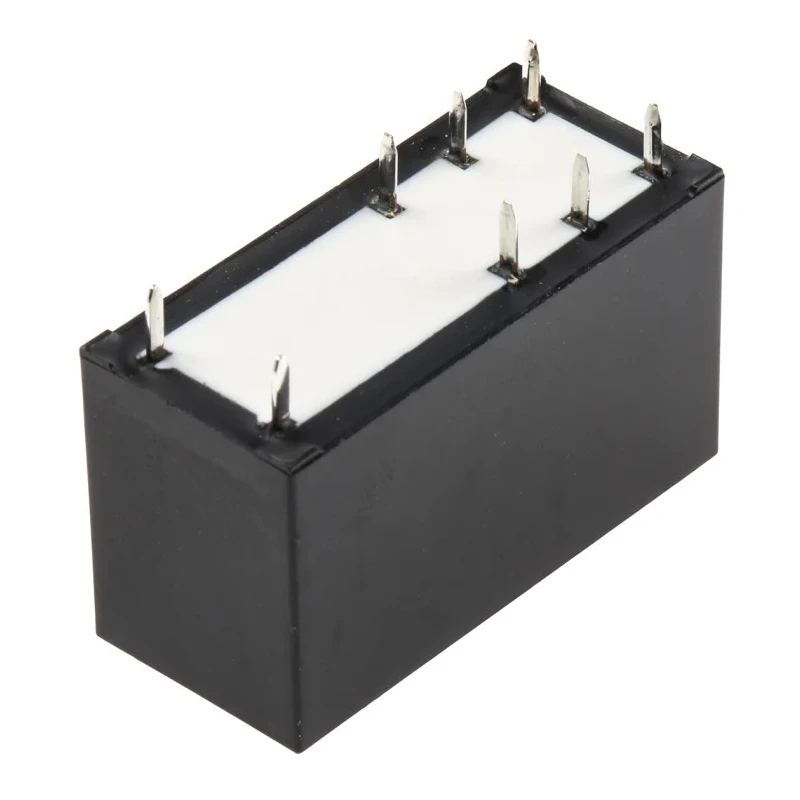

Fujitsu PCB Power Relay 12V dc Coil 5A Switching Current DPDT FTR-F1CA012V

Fujitsu FTR-F1CA012V PCB Power Relay is a compact, low-profile electrical component designed for efficient switching applications with a 12V dc coil voltage and 5A switching capability. Its DPDT contact configuration and gold-plated silver tin oxide contacts ensure reliable and durable performance for PCB mounting in various industrial and commercial electronic applications.

This relay supports high switching voltages of 300V dc and 300V ac, making it suitable for demanding power relay tasks. Its coil resistance of 270Ω combined with a coil power of 530mW contributes to low power consumption while maintaining effective operation.

The operating temperature range of -40°C to 75°C ensures the relay's robust performance in harsh environmental conditions. The product dimensions - 16.5 mm height, 12.8 mm width, and 29 mm length - allow for easy integration into compact PCB designs.

The relay complies with VDE, UL, and CSA standards, confirming its quality and safety for industrial and electrical use cases, including automation systems, control panels, and power distribution equipment.

Key features include gold-plated contact material for enhanced conductivity and a maximum switching power rating of 120W, allowing it to handle moderate electrical loads efficiently. Contact resistance is maintained at 100mΩ to minimize electrical losses.

Fujitsu's FTR-F1 series is well-regarded for low-profile power relays optimized for reliability and performance in automation, electrical controls, and signal conditioning industries.

This power relay is designed for PCB mounting and uses PCB pin terminals. It supports a switching DC voltage of up to 300V and an AC voltage up to 300V. The relay features gold-plated silver tin oxide contacts for reliable switching performance.

Designed for industrial use, it operates in temperatures ranging from -40°C to 75°C. FTR-F1 series provides a low-profile relay suitable for compact designs. The coil resistance is 270 ohms and coil power consumption is 530mW for efficient operation.

Supported by certifications including VDE, UL, and CSA standards. Contact resistance is rated at 100 milliohms, ensuring minimal signal loss. Dimensions: Height 16.5 mm, Width 12.8 mm, Length 29 mm. Explore more in the Power Relays category at EnvMart for trusted electronic components from Fujitsu and other top manufacturers.
