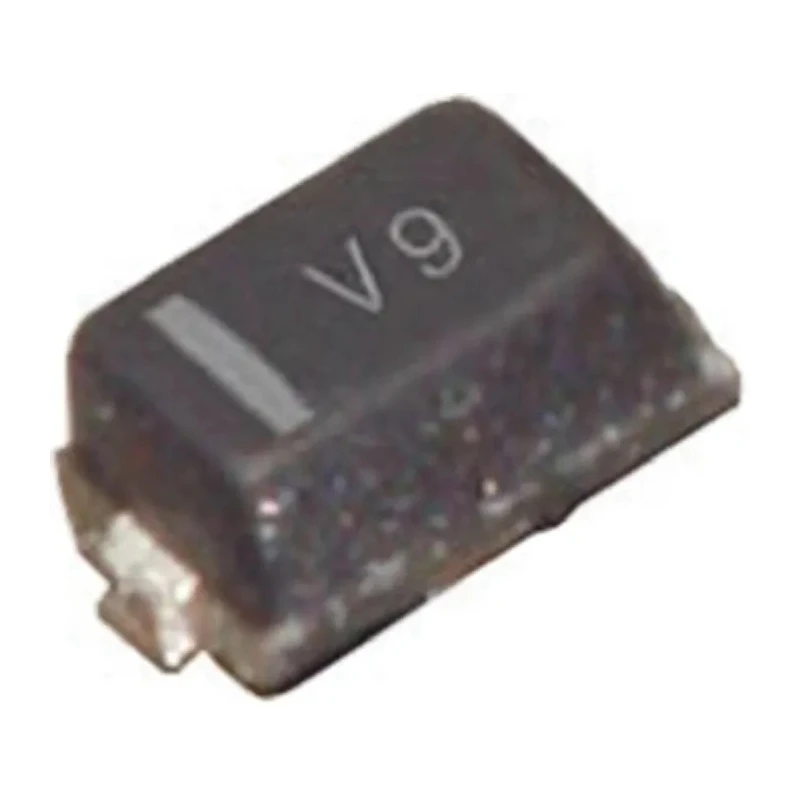

onsemi 1-Element Uni-Directional TVS Diode 0.15 W 2-Pin SOD-923 ESD9L3.3ST5G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.4mm |
| Length | 0.85mm |
| Model | ESD9L3.3ST5G |
| Width | 0.65mm |
| Mount Type | Surface |
| Series | ESD9L |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 4.8V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 0.15W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This TVS diode offers uni-directional protection against voltage spikes.
- It has a minimum breakdown voltage of 4.8 V and a maximum reverse stand-off voltage of 3.3 V.
- The device supports clamping voltage up to 9 V and a peak pulse current of 1 A.
- Designed for operation in extreme temperature ranges from -55°C to 150°C.
- Complies with automotive standard AEC-Q101 certification.
- Compact dimensions include 0.85 mm length, 0.65 mm width, and 0.4 mm height.
- Features low maximum reverse leakage current of 1μA for enhanced efficiency.
- Ideal for protecting sensitive electronics in industrial, automotive, and electronic applications.
Product Description
onsemi ESD9L3.3ST5G is a 1-element uni-directional transient voltage suppression (TVS) diode designed to protect electronic circuits from voltage spikes and electrostatic discharge (ESD) events. It is housed in a compact 2-pin SOD-923 surface mount package that allows ease of integration into space-constrained PCB layouts.
This diode supports a power dissipation of 0.15 W and features a minimum breakdown voltage of 4.8 V with a maximum reverse stand-off voltage of 3.3 V. It clamps transient voltages up to 9 V, providing critical protection for sensitive components.
The device operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for harsh environments. Its automotive-grade AEC-Q101 certification further ensures robustness and reliability in automotive and industrial applications.
With a maximum peak pulse current of 1 A and a minimal maximum reverse leakage current of 1μA, the ESD9L3.3ST5G offers efficient and effective electronic protection. Its small footprint dimensions including 0.85 mm length, 0.65 mm width, and 0.4 mm height enable high-density PCB designs and compact electronic assemblies.
Offers uni-directional transient voltage suppression to protect sensitive electronic circuits. Compact SOD-923 surface mount package for space-saving designs. High reliability with AEC-Q101 automotive standard compliance.
Operating temperature range from -55°C to 150°C suitable for diverse applications. Low reverse leakage current of 1μA to enhance device efficiency. Power dissipation rating of 0.15 W supports transient energy suppression.
Peak pulse current capacity of 1 A to withstand surge events. Dimensions are well-suited for integration into miniaturized electronics.
This TVS Diode is ideal for use in industrial, automotive, consumer electronics, and communication equipment. It ensures protection and prolonged device life by absorbing harmful voltage spikes and ESD disturbances.
Explore a range of semiconductor products within the Electronics & Electricals category at EnvMart for all your circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this diode is 4.8 V.
The maximum reverse stand-off voltage is 3.3 V.
It has a clamping voltage of up to 9 V.
The maximum peak pulse current capacity is 1 A.
The dimensions are 0.85 mm in length, 0.65 mm in width, and 0.4 mm in height.
The power dissipation rating is 0.15 W.
It operates reliably across a temperature range from -55°C to 150°C.
It is housed in a compact 2-pin SOD-923 surface mount package.
Yes, it complies with the automotive standard AEC-Q101.
The maximum reverse leakage current is 1μA.
This diode has 1 element per chip.
It is suitable for protecting sensitive electronics in industrial, automotive, consumer electronics, and communication equipment applications.
