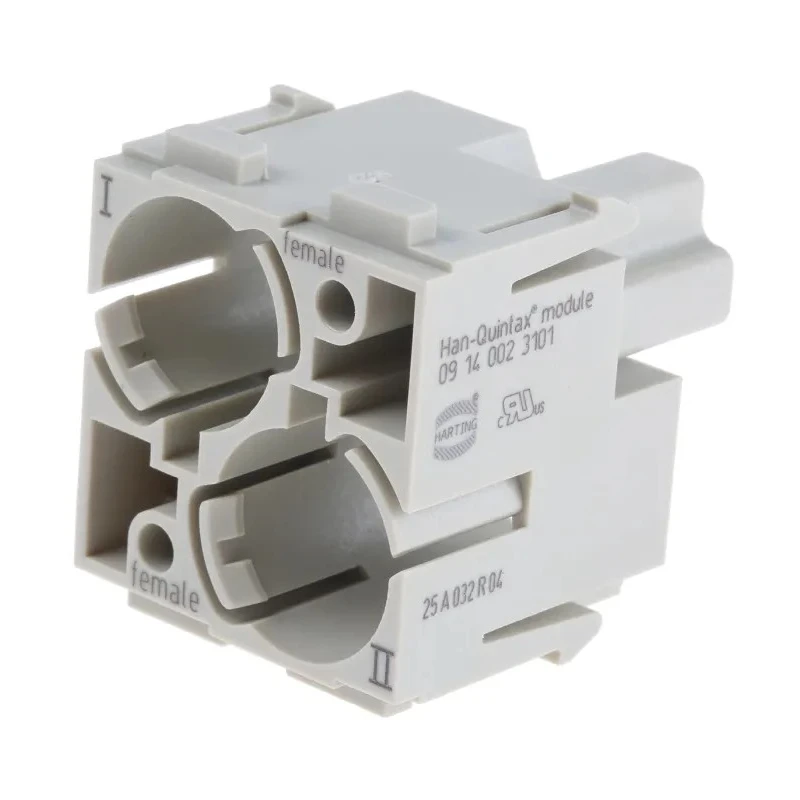

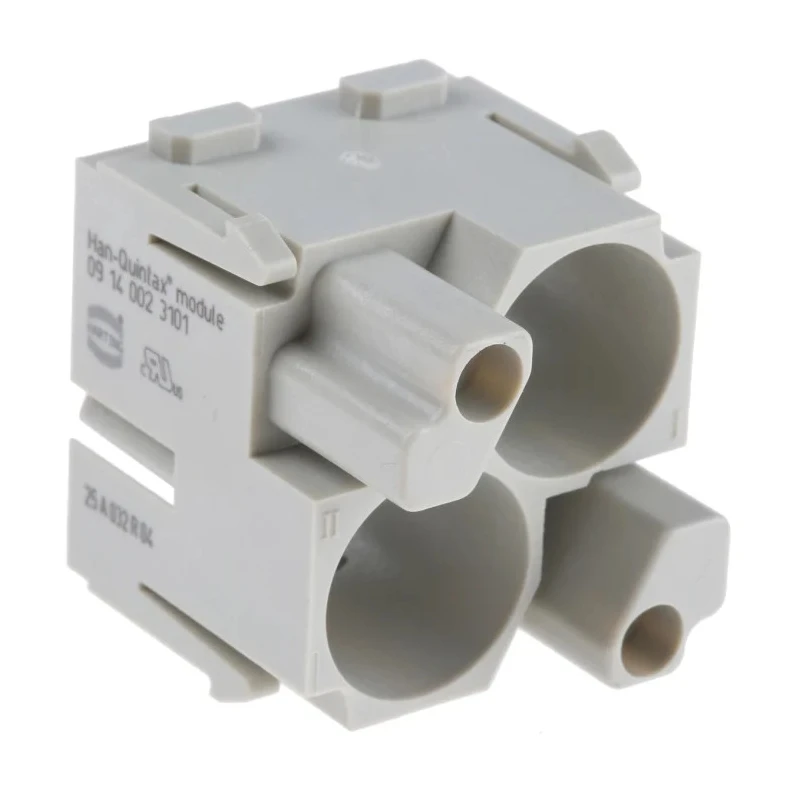

HARTING Han-Modular Range Heavy Duty Power Connector Housing 09140023101

HARTING 09140023101 Heavy Duty Power Connector Housing is a robust connector housing designed for industrial and electronic components where reliable power connection is essential.

Constructed with a durable polycarbonate body, this housing complies with the Han-Modular series standards, providing a modular double module design that supports various configurations within the same connector assembly.

The housing incorporates Han Quintax Modules®, which consist of 4 Han D contacts per Han-Quintax contact and 2 Han-Quintax contacts per Quintax module, allowing high-density electrical connections suitable for demanding applications.

This model is compatible with both standard and hinged Han-Modular frames, offering flexibility in installation and enhanced operational convenience.

Designed for use with shielded cables having an external diameter ranging from 3 to 6 mm or 6 to 9.5 mm, the housing ensures shielding control that is independent of the enclosure potential, facilitating uninterrupted shielding within Han enclosures. This makes it ideally suited for transmitting very sensitive signals such as BUS signals in industrial communication systems.

Han-D crimping contacts required for this housing are ordered separately, allowing customization of the connector to specific application needs. The Han-Modular system overall emphasizes flexibility and quality, supporting signal, power, and pneumatic line connections in a single modular connector system.

This product is made in Germany and represents a high standard of German engineering in connector technology. Made from durable polycarbonate body material for long-lasting use. Double modular design within the Han-Modular series system.

Supports 4 x Han D contacts per Han-Quintax contact and 2 x Han-Quintax contacts per Quintax module. Compatible with standard and hinged frames for flexible installation. Suitable for shielded cables of 3 to 6 mm or 6 to 9.5 mm external diameter sizes.

Ensures shielding control independent of enclosure potential. Ideal for transmitting sensitive BUS signals without interference. Han-D crimping contacts ordered separately.
