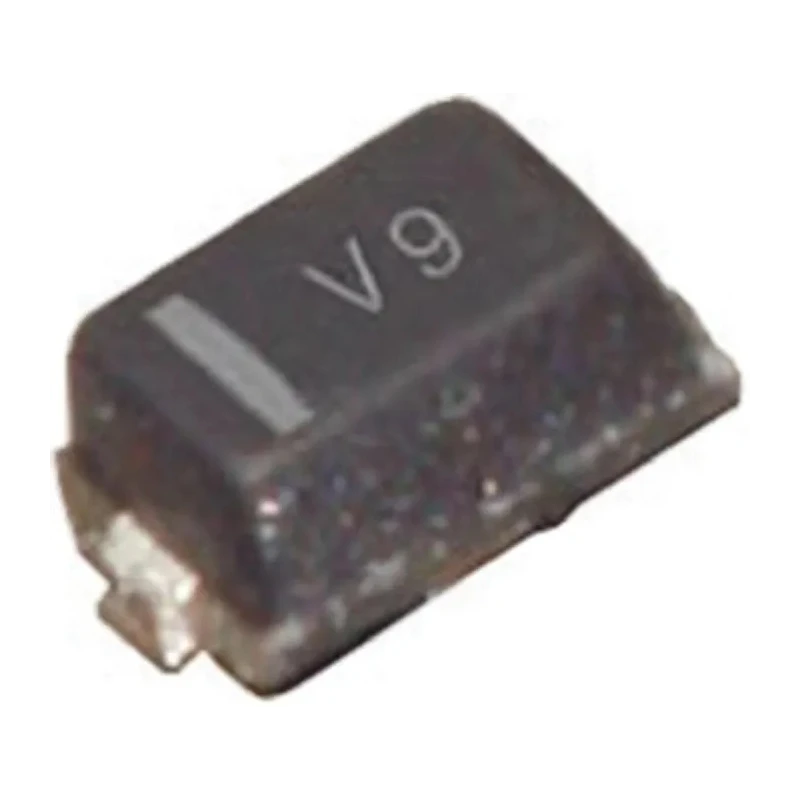

onsemi 1-Element Uni-Directional TVS Diode, 102 W, 2-Pin SOD-923 ESD9X3.3ST5G

onsemi ESD9X3.3ST5G is a high-performance, 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and electrostatic discharge (ESD). It is rated for a peak pulse power dissipation of 102 W, making it highly effective for safeguarding against transient overvoltage conditions in electronic systems.

This diode features a compact surface mount package type SOD-923, with dimensions of 0.85 mm length, 0.65 mm width, and a low profile height of 0.43 mm. Its 2-pin configuration enables easy integration on densely packed printed circuit boards (PCBs) without compromising board space. The device ensures circuit protection with a minimum breakdown voltage of 5 V and a maximum reverse stand-off voltage also of 5 V, suitable for low voltage applications.

With a clamping voltage of 10.4 V, the diode quickly clamps transient voltages to safe levels and can handle a peak pulse current of 9.8 A. Its maximum operating temperature can reach 150°C, and it can withstand harsh environments as low as -55°C. The maximum reverse leakage current is minimized to 2.5 μA, supporting energy efficiency. Automotive-grade compliance to AEC-Q101 certifies its reliability in automotive and industrial systems.

Single-element uni-directional diode configuration for effective ESD protection. Surface mount SOD-923 package made for modern compact electronic designs. High peak pulse power rating of 102 W ensures circuit robustness.

Wide operating temperature range suits industrial, automotive, and commercial applications. Low leakage current for minimal power dissipation during normal operation. Complies with automotive quality standard AEC-Q101 for demanding applications.

Compact size aids density optimized PCB layout. Protects sensitive semiconductor components in electronic equipment from transient surges.

This onsemi TVS diode is ideal for use in industrial power management, consumer electronics, automotive electronics, telecommunications, and other applications requiring reliable transient voltage suppression. It enhances system reliability and lifetime by preventing damage from ESD and other voltage transients.
