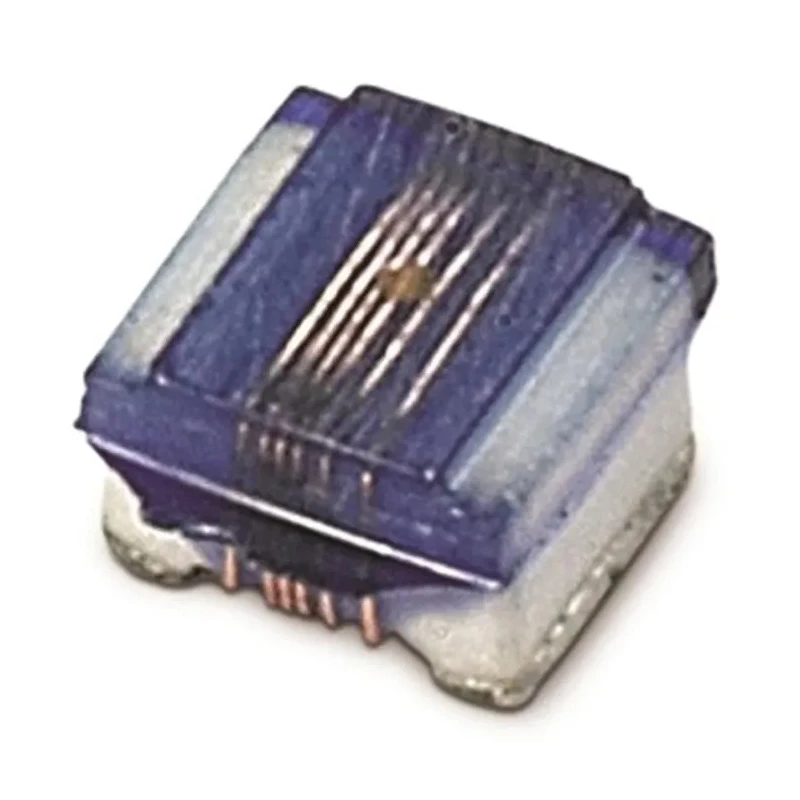

Wurth Elektronik WE-KI 0805 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 4.7 nH ±0.2 nH 600mA 744760047A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.2mm |
| Length | 2mm |
| Model | 744760047A |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 4.7nH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 0805 |
| Maximum DC Current | 600mA |
| Pin Count | 2 |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5.8GHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ceramic core and wirewound technology.
- Compact 0805 package size enables easy surface mounting.
- Maximum operating temperature of 125°C ensures high thermal stability.
- Inductor features low maximum DC resistance of 60 mΩ for efficient performance.
- Designed to meet automotive standard AEC-Q200 for reliability.
- Inductors have high self-resonant frequency up to 5.8 GHz for high-frequency applications.
- No shielding, with 2-pin termination style for straightforward PCB integration.
- Suitable for wireless LAN, Bluetooth, RF transceiver, and other communication devices.
Product Description
Wurth Elektronik 744760047A WE-KI 0805 series unshielded wirewound Surface Mount Inductors feature a ceramic core with a precise inductance of 4.7 nH ±0.2 nH, supporting a maximum DC current of 600 mA and operating temperatures ranging from -40°C to 125°C. These inductors are designed for advanced high-frequency applications requiring excellent thermal stability and performance.
The 0805 package size and surface mount termination style facilitate efficient PCB assembly. Wurth's wirewound construction combined with a ceramic core ensures high quality factor and minimal losses, with a maximum DC resistance of 60 mΩ. The inductors achieve a high self-resonant frequency of up to 5.8 GHz, making them particularly suited for wireless LAN, Bluetooth modules, and RF communication transceivers.
These inductors comply with automotive standard AEC-Q200, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards, guaranteeing reliability in automotive and industrial applications. Packaging is supplied on tape and reel for optimized automated machine insertion.
Key benefits include high thermal and mechanical stability, excellent Q factor of at least 60, and robust performance across a wide temperature range. Their unshielded design allows flexibility in circuit design while maintaining signal integrity.
Constructed with a ceramic core and wirewound technology. Compact 0805 package size enables easy surface mounting. Maximum operating temperature of 125°C ensures high thermal stability. Inductor features low maximum DC resistance of 60 mΩ for efficient performance.
Designed to meet automotive standard AEC-Q200 for reliability. Inductors have high self-resonant frequency up to 5.8 GHz for high-frequency applications. No shielding, with 2-pin termination style for straightforward PCB integration.
Suitable for wireless LAN, Bluetooth, RF transceiver, and other communication devices.
Ideal for precision electronic component requirements in industrial, automotive, communications, and consumer electronics markets. Discover more Wurth Elektronik components and solutions on EnvMart for your PCB design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 nH with a tolerance of ±0.2 nH.
It supports a maximum DC current of 600 mA.
The operating temperature range is from -40°C to 125°C.
The maximum self-resonant frequency is up to 5.8 GHz.
The maximum DC resistance is 60 mΩ.
The dimensions are 2 mm in length, 1.25 mm in depth, and 1.2 mm in height.
It features a surface mount termination style with a 2-pin configuration.
It complies with RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, and automotive standard AEC-Q200.
This inductor is constructed using wirewound technology with a ceramic core.
It is supplied in tape and reel packaging for optimized automated machine insertion.
It is suitable for wireless LAN, Bluetooth, RF transceivers, and other communication devices.
The minimum quality factor is at least 60.
