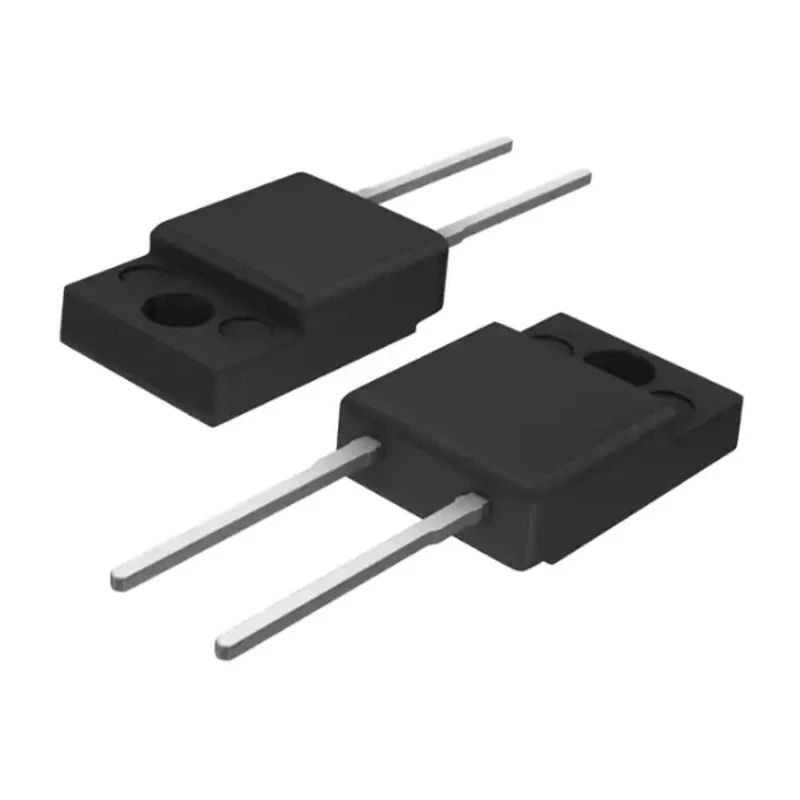

STMicroelectronics 200 V 15 A Fast Recovery Diode Single 2-Pin Through Hole TO-220 Package STTH1502FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 16.4mm |
| Length | 10.4mm |
| Model | STTH1502FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH1502 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 36ns |
Key Features
- Fast recovery diode with low forward and reverse recovery time.
- Maximum forward voltage of 1.3 V for efficient conduction.
- Peak non-repetitive forward surge current rating of 150 A for transient tolerance.
- Operates reliably in a temperature range from -40°C to 175°C.
- Compact dimensions with a height of 16.4 mm and a width of 4.6 mm.
- Designed with ST planar Pt doping technology for switching mode circuits.
- Ideal for use in low voltage, high frequency inverters and polarity protection circuits.
- Insulated TO-220FPAC package with high electrical insulation properties.
Product Description
STMicroelectronics STTH1502FP is a fast recovery diode designed for switching mode base drive and transistor circuits, rated for 15 A continuous forward current and 200 V peak reverse voltage. Its advanced 200V planar Pt doping technology ensures very low conduction losses, low forward voltage, and negligible switching losses, making it suitable for high frequency inverter applications, free wheeling, and polarity protection circuits.
This diode features a maximum forward voltage of 1.3 V and a peak reverse recovery time of 36 ns, contributing to its efficient switching performance. The device operates over a temperature range from -40°C to 175°C, ensuring high reliability in demanding industrial environments. It is housed in a TO-220 package with 2 pins for through hole mounting, offering excellent electrical insulation and mechanical robustness.
The STTH1502FP diode is compliant with RoHS directives, making it environmentally friendly. The insulated TO-220FPAC package provides electrical insulation up to 2000 VDC, enhancing safety in electronic designs.
Fast recovery diode with low forward and reverse recovery times. High peak reverse voltage of 200 V for robust performance. Continuous forward current rating of 15 A suitable for power applications. Compact TO-220 package designed for through hole mounting.
Temperature range from -40°C up to 175°C for industrial use. Advanced PT doping technology for improved switching efficiency. RoHS compliant and environmentally safe. Electrical insulation up to 2000 VDC in the TO-220FPAC package.
Ideal for inverter circuits, free wheeling, and polarity protection. Simple 2-pin configuration for easy PCB integration.
This diode is well suited for industrial, electronic manufacturing, power supply, and automotive circuits requiring fast switching and high current handling capability. Discover more high-performance semiconductor components like this in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the STTH1502FP diode is 15 A.
This diode has a peak reverse voltage rating of 200 V.
The maximum forward voltage drop for this diode is 1.3 V.
The peak reverse recovery time of the STTH1502FP is 36 ns.
It operates reliably in a temperature range from -40°C to 175°C.
This diode is housed in a TO-220 package designed for through hole mounting.
The peak non-repetitive forward surge current rating for this diode is 150 A.
The dimensions of this diode are 16.4 mm in height, 4.6 mm in width, and 10.4 mm in length.
Yes, the STTH1502FP diode is compliant with RoHS directives, making it environmentally friendly.
The STTH1502FP diode has a simple 2-pin configuration for easy PCB integration.
This model is a fast recovery rectifier, suitable for high frequency applications.
It is ideal for use in low voltage, high frequency inverters and polarity protection circuits.
