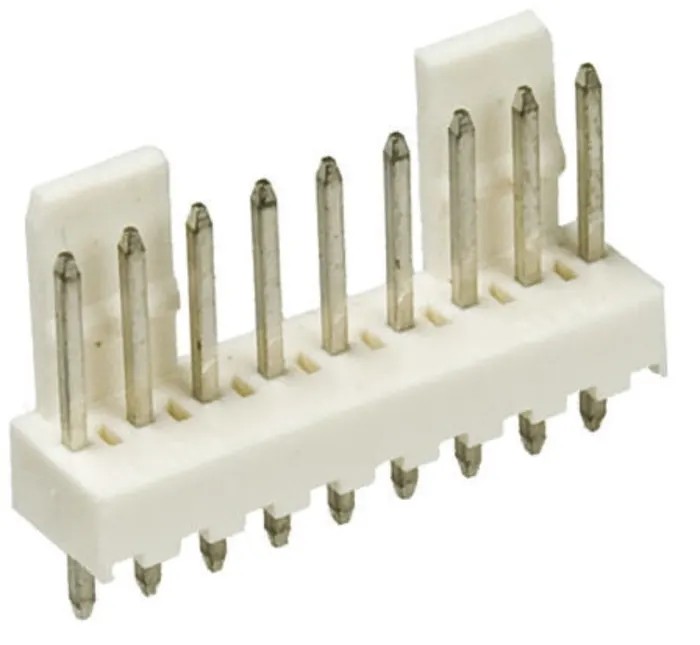

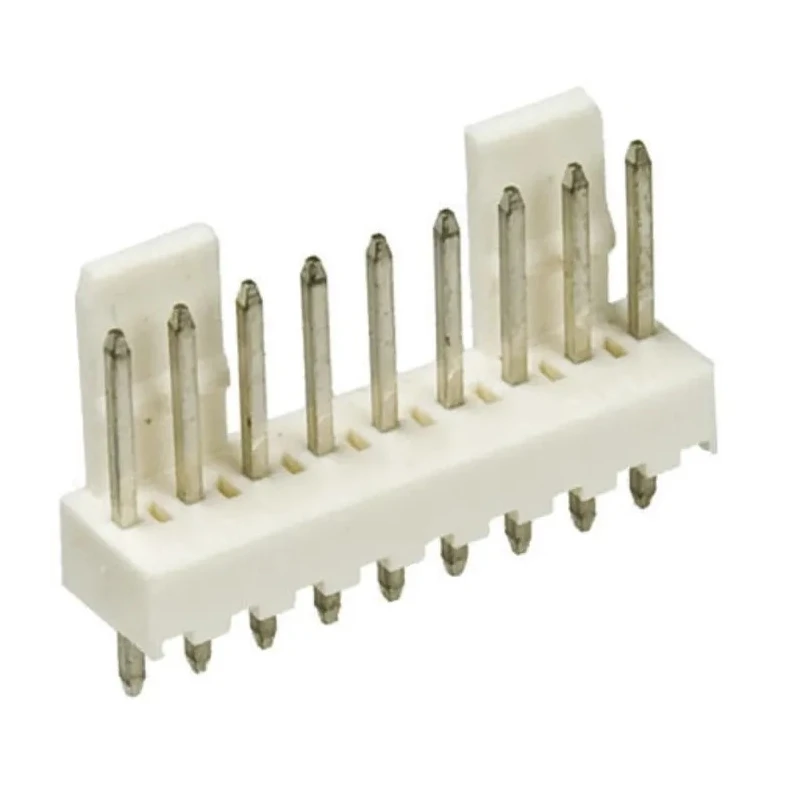

Molex Mini-Latch Series Straight Through Hole Pin Header, 9 Contacts, 2.5 mm Pitch, 1 Row, Unshrouded 22-04-1091
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- Offers a friction locking ramp for a secure mating connection.
- Contains 9 male brass contacts plated with tin for durability.
- Supports a current rating of 3A and voltage rating up to 250V.
- Constructed with nylon housing material ensuring mechanical strength.
- Designed for through hole mounting with solder termination type.
- Operates reliably between -40°C and 105°C temperature ranges.
- Compatible with Molex Mini-Latch 51191 and KK Series 5051 crimp housings.
- Vertical and right angle mounting variants available for design flexibility.
Product Description
Molex 22-04-1091 Mini-Latch Series Straight Through Hole Pin Header is a high-quality PCB connector designed for wire-to-board applications with a 2.5 mm pitch and 9 contacts in a single unshrouded row. It ensures secure, friction-locked mating connections ideal for industrial electronic assemblies.
The pin header features brass male contacts plated with tin for excellent conductivity and corrosion resistance, housed in durable nylon material to provide mechanical robustness. Its through-hole mount and solder termination allow for reliable PCB integration.
Engineered to operate under wide temperature ranges from -40°C to 105°C, this connector is suitable for various industrial environments including vehicle electronics, data communication devices, printers, and PC monitors.
The Mini-Latch series is compatible with Molex 51191 and KK 5051 crimp housings and offers both vertical and right angle mounting versions to support flexible design requirements. The friction locking ramp mechanism provides a secure lock to prevent accidental disconnects.
Friction locking ramp for secure mating connection. 9 contacts with 2.5 mm pitch arranged in a single row. Brass contacts with tin plating for enhanced conductivity and durability. Durable nylon housing designed for through-hole mount and solder termination.
Temperature range of -40°C to 105°C for broad application suitability. Supports current of 3A and voltage up to 250V. Compatible with Mini-Latch 51191 and KK 5051 series crimp housings. Available in vertical and right angle mounting versions.
This connector is widely used across electronics manufacturing, automotive systems, telecommunications, and industrial control systems. It offers reliable performance and robust physical design suitable for various assembly requirements.
Explore further Molex Mini-Latch series connectors and PCB header solutions in the Electronics Components category at EnvMart for complete industrial and commercial applications.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of up to 250V.
The pitch size of this pin header is 2.5 mm.
It features brass male contacts plated with tin for conductivity, and the housing is made of durable nylon material.
This pin header operates reliably within a temperature range of -40°C to 105°C.
The pin header contains 9 contacts arranged in a single row.
Yes, it is designed for through-hole mounting with solder termination type.
This model is available in both vertical and right angle mounting variants.
It is compatible with Molex Mini-Latch 51191 and KK Series 5051 crimp housings.
This pin header is designed for wire-to-board applications.
The contacts in this connector are male.
The country of origin for this pin header is India.
This pin header belongs to the Molex Mini-Latch series.
