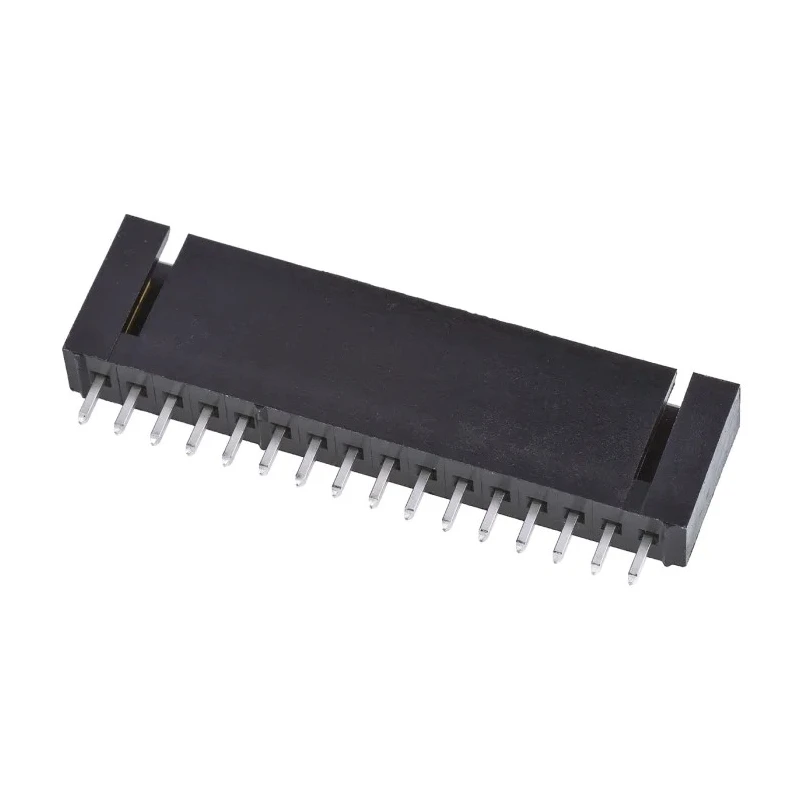

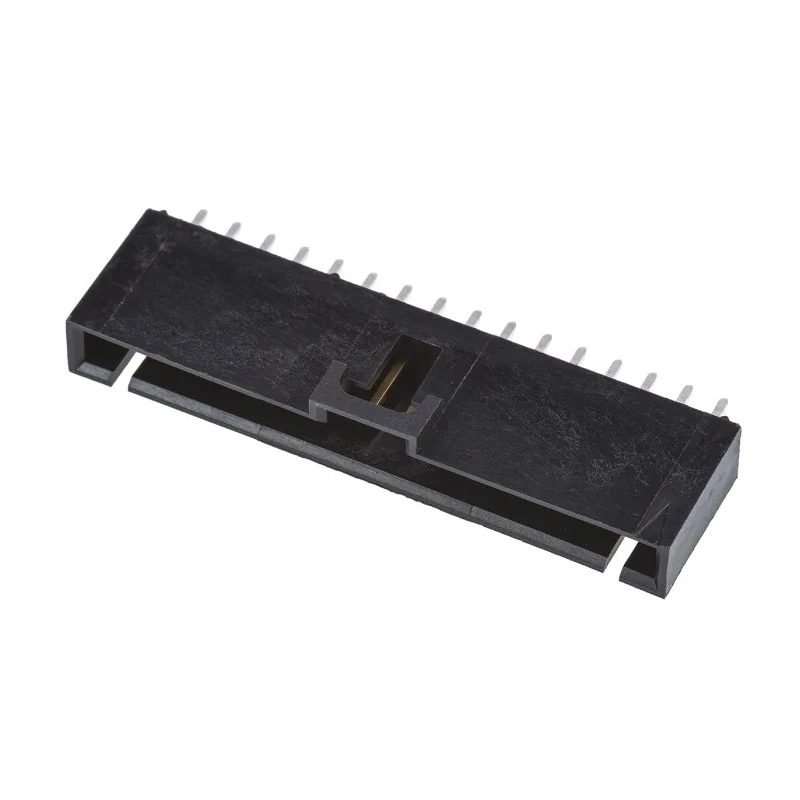

Molex SL Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0015

Molex 70543-0015 SL Series Straight Through Hole PCB Header is a high-quality wire-to-board connector designed for reliable and efficient electronic circuits assembly. It features a shrouded design with 16 male phosphor bronze contacts, each gold-plated to ensure excellent electrical conductivity and corrosion resistance.

The header utilizes a glass filled polyester housing that provides superior durability and thermal stability. With a contact pitch of 2.54 mm and a single row configuration, this connector suits various PCB applications requiring compact and secure connections.

It supports a current rating of 3A and a maximum voltage of 250V, making it suitable for a wide range of low-voltage electronic devices. Its through hole mounting type with solder termination guarantees a firm mechanical and electrical connection to the printed circuit board.

Operational temperature ranges from -40°C to 105°C, enabling reliable performance in both harsh industrial and commercial environments. The tail pin length of 3.3 mm and mating pin length of 6.1 mm contribute to secure mating with corresponding connectors, preventing accidental disconnections and ensuring signal integrity.

This header mates with Molex 70600G and 70600N series connectors, expanding its flexibility in system design. The shrouded feature protects the contacts against damage and mis-alignment during handling and installation.

Constructed with glass filled polyester housing for durability. Features phosphor bronze contacts plated with gold for excellent conductivity. Rated for 3A current and 250V voltage maximum. Supports through hole mount type with solder termination.

Operates in temperatures from -40°C to 105°C. Tail pin length is 3.3 mm with mating pin length of 6.1 mm for secure connections. Shrouded orientation ensures protection against damage and misalignment. Compact single row, 2.54 mm pitch configuration ideal for PCB applications.

Designed and manufactured in the United States.

This PCB header is widely used in electronics manufacturing, industrial automation, instrumentation, and other commercial applications where secure and reliable PCB interconnections are essential. Its proven Molex SL series quality assures consistent performance and long service life.
