Samtec Right Angle Through Hole Pin Header 14 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-114-08-L-S-RA

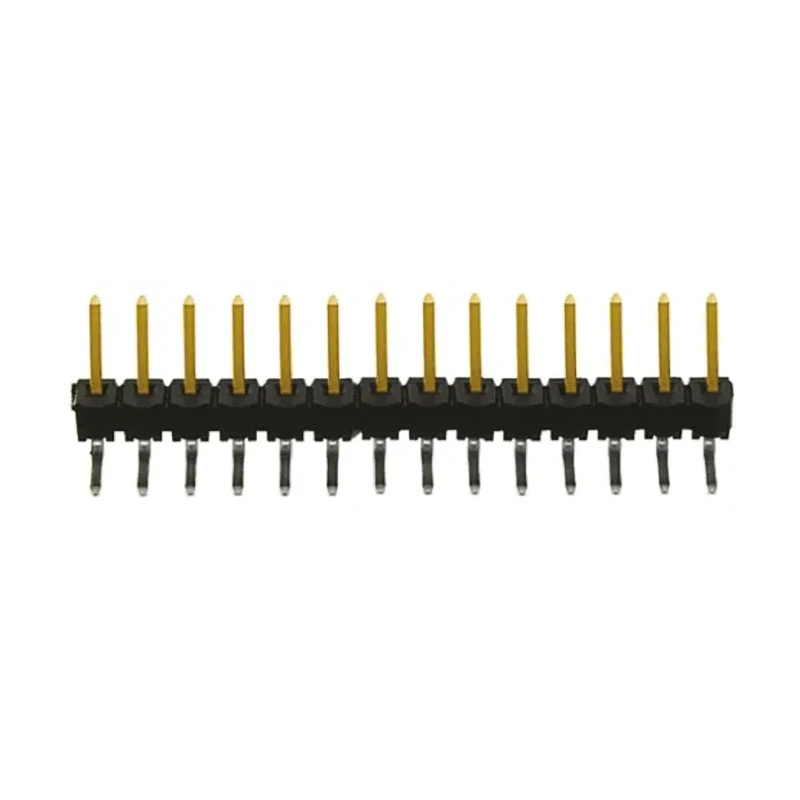

Samtec TSW-114-08-L-S-RA right angle through hole pin header is engineered for dependable electronic component connections in challenging industrial and commercial environments. It features 14 male contacts aligned in a single row with a 2.54 mm pitch, mounted on a robust glass filled polyester housing that offers excellent mechanical support and insulation.

This pin header's phosphor bronze contacts are gold plated, enhancing corrosion resistance and electrical performance, suitable for board-to-board and wire-to-board applications. The design supports currents up to 7.6A and voltages up to 450V, with an operating temperature spanning from -55°C to 125°C, accommodating demanding conditions in electronics manufacturing, telecommunications, instrumentation, and automotive control systems.

The solder termination type and 2.29 mm tail pin length ensure secure and reliable mounting to printed circuit boards through a right angle orientation, optimizing space and layout flexibility on PCBs. The mating pin length of 5.84 mm provides proper engagement with compatible sockets and connectors.

The unshrouded configuration facilitates straightforward insertion while maintaining electrical and mechanical integrity. These features combine to make the Samtec TSW series a preferred choice for precision electronic assemblies requiring durable, high-performance pin headers.

Constructed with glass filled polyester housing for durability. Phosphor bronze male contacts with gold plating ensure reliable conductivity. Supports a maximum current of 7.6A and voltage rating of 450V. Operates safely within temperature range -55°C to 125°C.

Solder termination type with 2.29 mm tail pin length for stable mounting. Designed for board-to-board and wire-to-board connector systems. Mating pin length is 5.84 mm for effective engagement. Through hole mount with right angle orientation facilitates compact PCB layouts.

This product caters to industries requiring robust electronic connectors, including industrial power control, instrumentation, telecommunications, and embedded system manufacturing. Samtec’s legacy in high-quality pin headers ensures design reliability and electrical performance across various critical applications.
