onsemi Transistor, 100 mA NPN, 45 V, 3-Pin TO-92 BC547BTA

Free Delivery in India | Lowest Global Shipping Charges

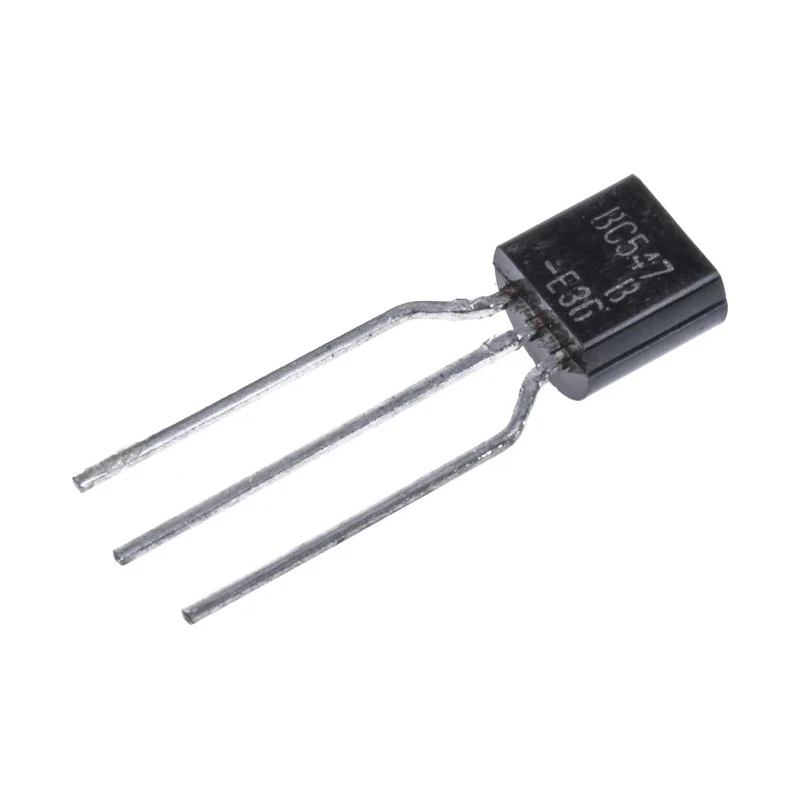

onsemi Transistor, 100 mA NPN, 45 V, 3-Pin TO-92 BC547BTA

Name: onsemi Transistor, 100 mA NPN, 45 V, 3-Pin TO-92 BC547BTA
Brand: onsemi
SKU: 101086
Price: 0.08 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	21.77mm
Length	5.2mm
Model	BC547BTA
Width	4.19mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-92
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	45V
Minimum DC Current Gain hFE	110
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	50V
Maximum Power Dissipation Pd	500mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	1MHz
onsemi BC547BZL1G NPN Bipolar Transistor, 100 mA, 45 V, 3-Pin TO-92Brand	ON Semiconductor

Key Features

This transistor has a maximum collector current of 100 mA.
It supports a maximum collector-emitter voltage of 45 V, suitable for low power switching applications.
The device features a TO-92 package with 3 pins configured in NPN polarity.
It has a minimum DC current gain (hFE) of 110, ensuring efficient signal amplification.
The maximum power dissipation rating is 500 mW for thermal reliability.
Operating temperature ranges from -55°C to 150°C, enabling use in diverse environments.
The maximum transition frequency (ft) is 1 MHz, supporting high-frequency applications.
The transistor is constructed for standard industrial and consumer electronic circuits.

Product Description

The onsemi BC547BTA is a small signal NPN bipolar junction transistor featuring a 3-pin TO-92 package. It is designed to handle a maximum collector current of 100 mA and a collector-emitter voltage rating of 45 V, making it ideal for amplification and switching tasks within electronic circuits.

This transistor exhibits a minimum DC current gain of 110 and supports power dissipation up to 500 mW, ensuring stable performance even under moderate thermal loads. Its operational temperature range spans from -55°C to 150°C, allowing reliable operation in various industrial, laboratory, and commercial applications.

The device supports a maximum transition frequency of 1 MHz, which provides versatility for mid-frequency signal amplification. Its compact TO-92 package facilitates easy through-hole mounting on printed circuit boards, suitable for prototyping and mass production environments.

Typical use cases include general amplification, switching, signal processing, and low power load driving in consumer electronics, measurement instruments, and industrial control systems. The transistor meets RoHS compliance but does not carry automotive-specific approvals, aligning it with broad electronics assembly standards.

This transistor supports a collector current up to 100 mA. Maximum collector-emitter voltage is rated at 45 V. Packaged in a 3-pin TO-92 format suitable for through-hole mounting. The gain (hFE) of the transistor is a minimum of 110.

Maximum power dissipation rating is 500 mW. Operating temperature ranges between -55°C and 150°C. Maximum transition frequency is 1 MHz. Pin count is 3 compatible with standard circuit boards.

This product is suitable for industrial, laboratory, construction, and manufacturing uses. It offers reliable performance for electronic engineers and technicians involved in circuit design and repair.

Explore our catalog for high-quality semiconductor products like the onsemi BC547BTA transistor, designed to meet demanding performance standards at competitive value.
