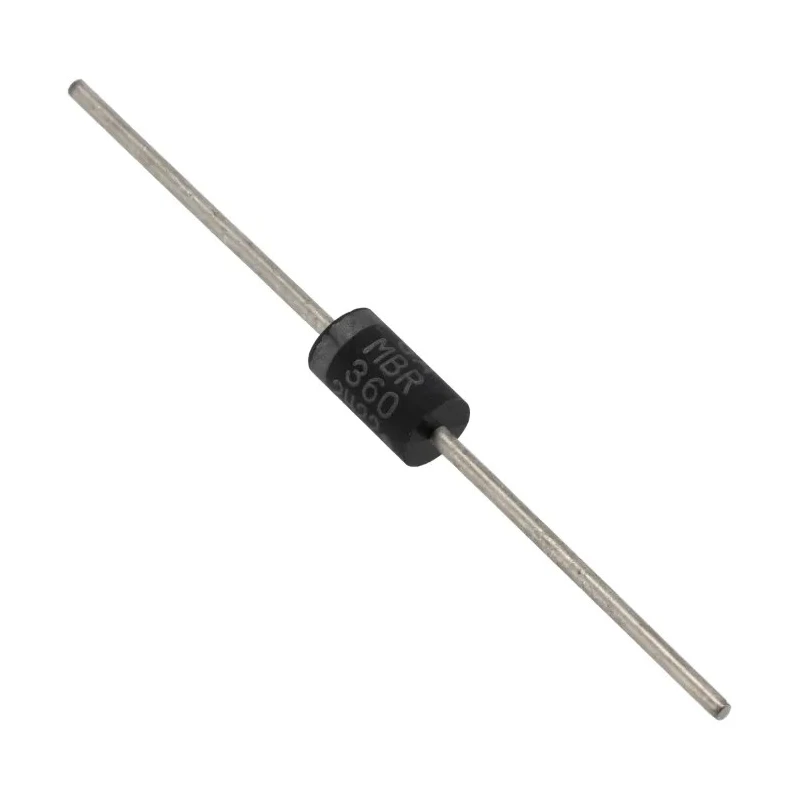

onsemi 60 V 3 A Schottky Diode Single Diode Configuration 2-Pin DO-201AD MBR360G
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | MBR360G |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 1.1 gram (approximately) |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | MBR360 |
| Maximum Operating Temperature | 150°C |
| Case | Epoxy, Molded |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode indicated by Polarity Band |
| Marking | B350, B360 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 1.08V |
| Lead Temperature for Soldering Purposes | 260°C Max. for 10 Seconds |
Key Features
- The diode uses Schottky Barrier technology for low forward voltage drop and fast switching.
- Rated for a maximum continuous forward current of 3 amperes.
- Peak reverse repetitive voltage of 60 volts and peak non-repetitive surge current of 80 amperes.
- The package is epoxy molded with corrosion resistant finish for durability.
- Operates reliably at temperatures between -65°C to 150°C.
- Compact dimensions with 9.5 mm length and 5.3 mm diameter.
- Cathode polarity is indicated by a band marking on the case.
- Ideal for use in low voltage, high frequency inverters, free wheeling diodes, and polarity protection circuits.
Product Description
onsemi MBR360G Schottky Diode is a high efficiency, low forward voltage drop rectifier designed using Schottky Barrier principles with epitaxial construction. This diode features an epoxy molded DO-201AD package with a corrosion resistant finish and readily solderable leads.
It is suitable for use in a range of electronic and industrial applications including power supply rectification, low voltage switching, free wheeling diodes, and polarity protection in various circuits.
The component supports a maximum continuous forward current of 3 A and can withstand peak reverse repetitive voltages up to 60 V, operating over a temperature range from -65°C to 150°C.
Its compact 2-pin design with a length of 9.5 mm and diameter of 5.3 mm makes it ideal for space-constrained electronic assemblies.
The cathode is clearly marked with a polarity band to prevent installation errors. The diode is built to withstand soldering temperatures up to 260°C for short durations, ensuring robust assembly durability.
The diode uses Schottky Barrier technology for low forward voltage drop and fast switching. Rated for a maximum continuous forward current of 3 amperes. Peak reverse repetitive voltage of 60 volts and peak non-repetitive surge current of 80 amperes.
Epoxy molded package with corrosion resistant finish. Wide operating temperature range from -65°C to 150°C. Compact 2-pin DO-201AD package with easy identification of cathode polarity. Ideal for inverters, free wheeling diodes, and polarity protection.
Lead temperature rating up to 260°C for soldering purposes.
This onsemi Schottky Diode is manufactured in China and offers reliable performance for industrial, commercial, and electronic applications where efficient diode switching and low forward voltage are critical.
Explore more Schottky Diodes and Rectifiers from onsemi and other brands on EnvMart to find the right component for your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 amperes.
It has a peak reverse repetitive voltage rating of 60 volts.
This diode comes in a DO-201AD package type.
The diode has a length of 9.5 mm and a diameter of 5.3 mm.
It operates reliably within a temperature range of -65°C to 150°C.
The peak non-repetitive forward surge current is rated at 80 amperes.
The cathode polarity is indicated by a band marking on the case.
This model is a Schottky rectifier, designed for low forward voltage drop and fast switching.
The lead temperature rating for soldering purposes is up to 260°C for a maximum of 10 seconds.
The package has a corrosion-resistant finish on all external surfaces, and the terminal leads are readily solderable.
The peak reverse current is specified at 20 mA.
It is suitable for applications such as power supply rectification, low voltage switching, free wheeling diodes, and polarity protection circuits.
