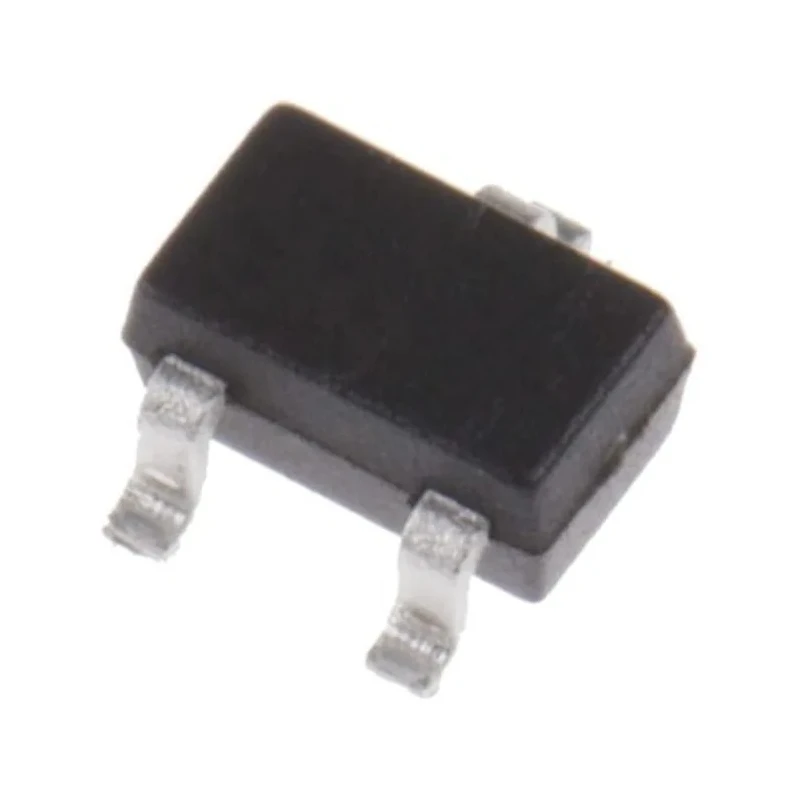

onsemi Transistor NPN 100 mA 50 V 3-Pin Surface Mount SC-70 MUN5211T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Transistor NPN 100 mA 50 V 3-Pin Surface Mount SC-70 MUN5211T1G

Name: onsemi Transistor NPN 100 mA 50 V 3-Pin Surface Mount SC-70 MUN5211T1G
Brand: onsemi
SKU: 100616
Price: 0.03 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	1mm
Length	2.2mm
Model	MUN5211T1G
Width	1.35mm
Mount Type	Surface
Series	MUN5211
Maximum Operating Temperature	150°C
Package Type	SC-70
Pin Count	3
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	35
Transistor Polarity	NPN
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	310mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Nexperia Digital Transistor, 100 mA NPN, 50 V, 3-Pin UMTBrand	Nexperia

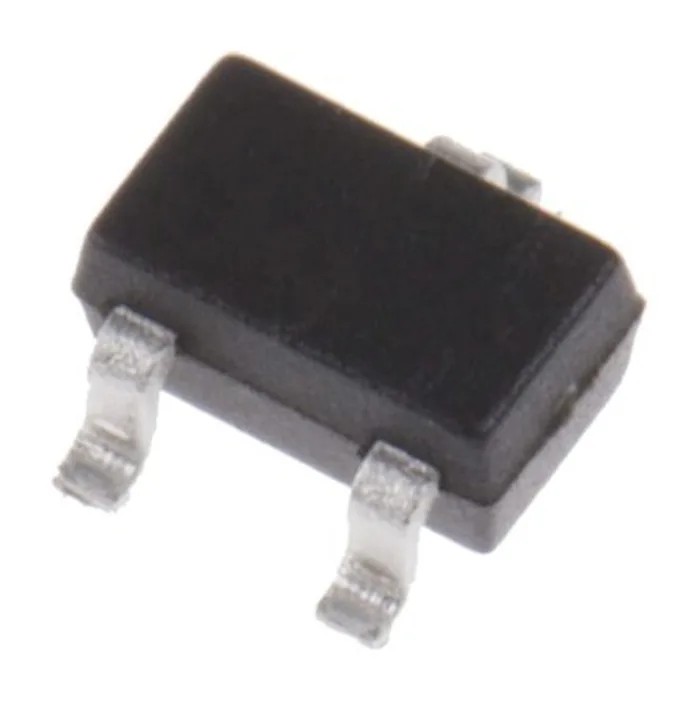

onsemi MUN5211T1G Transistor, 100 mA NPN, 50 V, 3-Pin SC-70Brand	onsemi

Key Features

Designed with integrated monolithic bias resistors to reduce external components.
Maximum power dissipation is 310 milliwatts for efficient thermal management.
Surface mount device with 3 pins for easy PCB assembly.
Operating temperature up to 150°C for high reliability under stress.
Minimum DC current gain (hFE) of 35 ensures adequate amplification.
Meets AEC-Q101 automotive standard ensuring durability and performance in automotive use.
Pb-Free, halogen free, and environmentally compliant packaging.

Product Description

onsemi MUN5211T1G is a bipolar NPN transistor with a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, housed in a 3-pin SC-70 surface mount package. It integrates monolithic bias resistors within the transistor, streamlining circuit design by reducing the need for external bias resistors. This reduces board space and simplifies assembly.

The device offers a maximum power dissipation of 310 mW and is rated for operation up to 150°C, ensuring reliability in demanding industrial and automotive environments. The minimum DC current gain (hFE) is 35, providing sufficient amplification for switching and signal applications.

Its ultra-compact size with length 2.2 mm, width 1.35 mm, and height 1 mm enables use in densely packed circuit boards, especially suitable for modern electronics where miniaturization is critical.

Conforming to the AEC-Q101 automotive standard, this transistor is suited for automotive applications requiring high quality and reliability. The product is RoHS compliant, Pb-Free, and free of halogens and brominated flame retardants, supporting eco-friendly manufacturing practices.

This transistor is ideal for industrial, automotive, consumer electronics, and general purpose amplification or switching applications within semiconductor discrete device portfolios.

Designed with integrated monolithic bias resistors to reduce external components. Maximum power dissipation is 310 milliwatts for efficient thermal management. Surface mount device with 3 pins for easy PCB assembly. Operating temperature up to 150°C for high reliability under stress.

Minimum DC current gain (hFE) of 35 ensures adequate amplification. Compact dimensions: length 2.2 mm, width 1.35 mm, height 1 mm suitable for space-constrained applications. Meets AEC-Q101 automotive standard ensuring durability and performance in automotive use.

Pb-Free, halogen free, and environmentally compliant packaging. Explore our comprehensive selection of Bipolar Transistors at EnvMart for your electronic component needs.
