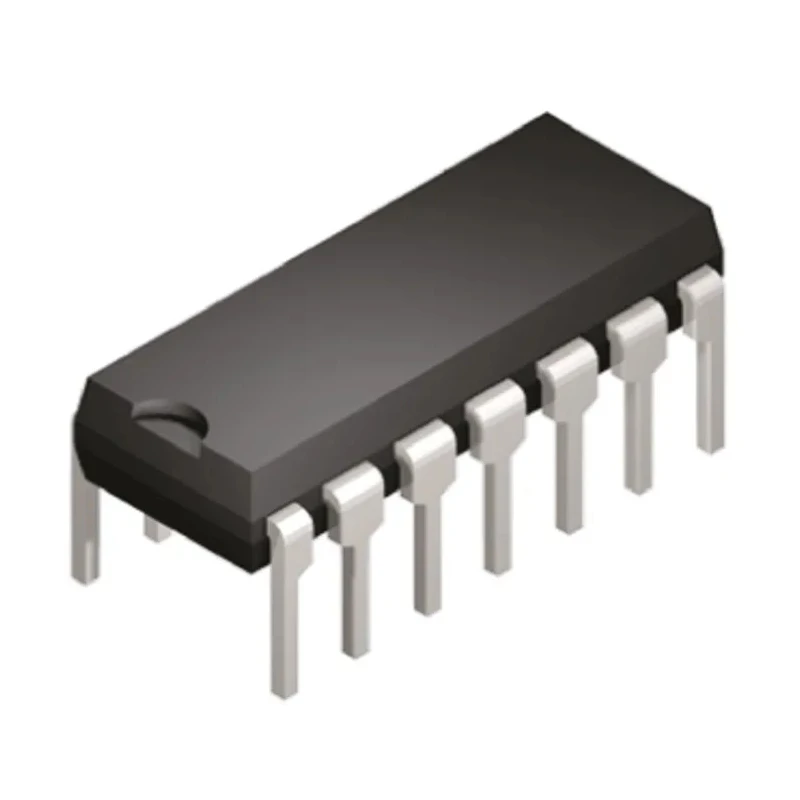

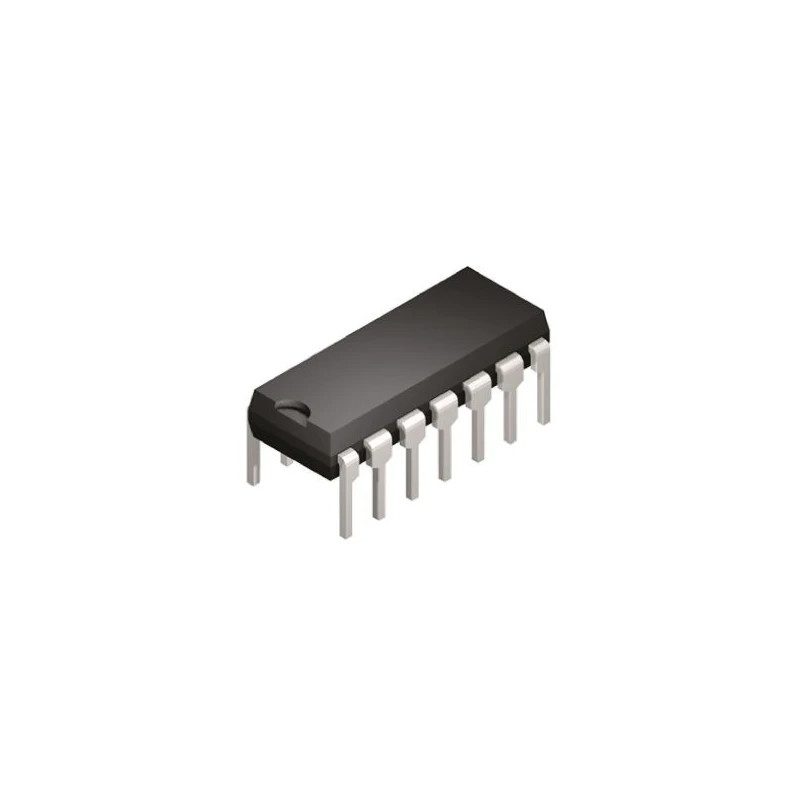

Texas Instruments Operational Amplifier 1.8 MHz 14-Pin PDIP 18V TLE2064CN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TLE2064CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLE2064 |
| Output Current | 80mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 3.5V |
| GBP - Gain Bandwidth Product | 1.8MHz |
| Input Bias Current | 2 nA |
| Vos - Input Offset Voltage | 7.9 mV |
| Slew Rate | 3.4V/μs |
| Input Offset Current | 0.8 nA |
Key Features
- JFET input operational amplifier featuring low noise and low power consumption.
- Gain bandwidth product of 1.8 MHz ensures improved signal processing speed.
- Wide supply voltage range from 3.5V minimum to 18V maximum for versatile usage.
- Four channels integrated in a single 14-pin PDIP package for multi-signal processing.
- Input offset voltage of 7.9 mV and low input bias current of 2 nA for precision.
- Slew rate of 3.4 V/μs enables fast response to input changes.
- Operating temperature range from 0°C to 70°C for standard industrial environments.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Texas Instruments TLE2064CN is a BiFET JFET input operational amplifier designed to provide excellent performance with low noise and power consumption. Featuring a gain bandwidth product of 1.8 MHz, this amplifier is ideal for precise analog signal amplification and processing in industrial, laboratory, and commercial electronics applications. Packaged in a 14-pin PDIP with four integrated channels, it supports multi-signal operations while maintaining high accuracy with an input offset voltage of 7.9 mV and a low input bias current of 2 nA.
The TLE2064CN supports a wide supply voltage range of 3.5V to 18V, accommodating various power scenarios, and includes a slew rate of 3.4 V/μs for rapid output response. Operating within 0°C to 70°C, it suits standard industrial temperature ranges. Its robust output stage can drive currents up to 80 mA, making it suitable for direct load driving.
Constructed with RoHS compliance, the device assures environmentally friendly manufacturing. The amplifier's compact dimensions (19.3 mm length, 6.35 mm width, and 4.57 mm height) facilitate easy integration into complex PCB designs in advanced electronics systems.
This operational amplifier is typically used in industrial control systems, signal conditioning, audio processing, instrumentation, and other applications requiring high precision and stability.
JFET input operational amplifier with low noise and power consumption. Gain bandwidth product of 1.8 MHz for high-speed signals. Four channels in a single 14-pin PDIP package. Wide operating voltage range from 3.5V to 18V.
Low input offset voltage and bias current for accuracy. Slew rate of 3.4 V/μs for rapid output changes. Operating temperature range from 0°C to 70°C. RoHS compliant for environmental safety. Output current up to 80 mA for load driving.
Compact dimensions optimized for PCB design.
For professional engineers and designers demanding reliable and precise analog amplification, the Texas Instruments TLE2064CN Operational Amplifier is a proven solution available for immediate integration in your projects. Explore further components and amplifiers in the Electronics & Electricals Semiconductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.8 MHz, which supports high-speed signal processing.
It operates within a supply voltage range of 3.5V to 18V, allowing for versatile usage in various applications.
This operational amplifier features four channels integrated into a single 14-pin PDIP package, enabling multi-signal processing.
The input offset voltage is 7.9 mV, which contributes to its precision in analog signal amplification.
It can drive output currents up to 80 mA, making it suitable for direct load driving applications.
The slew rate of this model is 3.4 V/μs, allowing for rapid response to input changes.
It operates within a temperature range of 0°C to 70°C, suitable for standard industrial environments.
The dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating integration into PCB designs.
Yes, it is compliant with RoHS standards, ensuring environmentally friendly manufacturing practices.
It features a through-hole mounting type, which is common in many PCB applications.
The input bias current is 2 nA, which helps maintain accuracy in signal processing.
It is commonly used in industrial control systems, signal conditioning, audio processing, and instrumentation requiring high precision.
