| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4007RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N4007 |
| Maximum Operating Temperature | 175°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
| Fairchild 1000V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4007Brand | Fairchild Semiconductor |

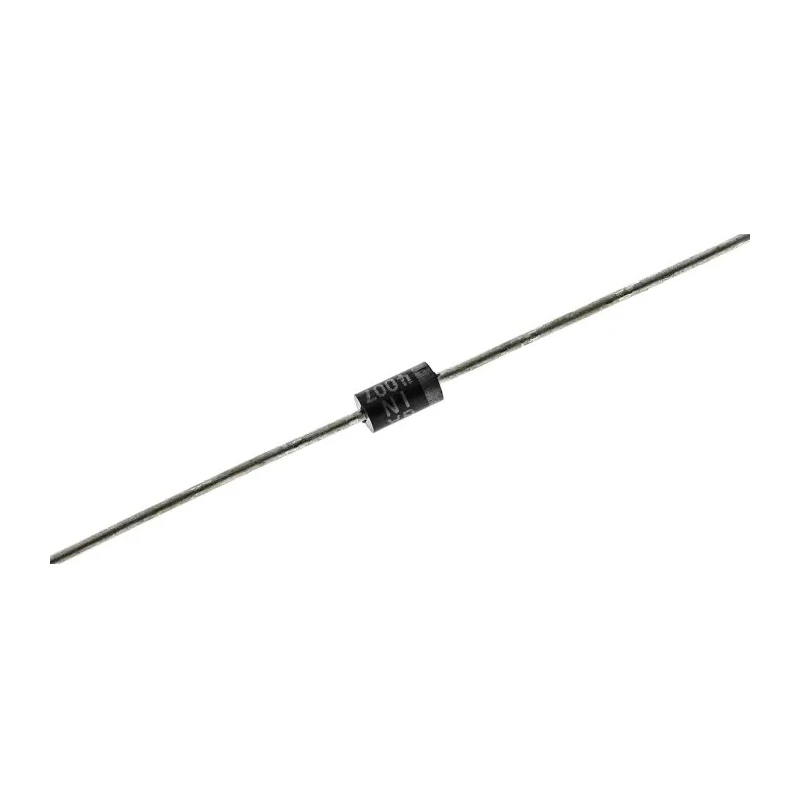

onsemi 1N4007RLG switching diode is a discrete semiconductor device designed for efficient and dependable switching applications. Its 1 kV peak reverse voltage and 1 A continuous forward current ratings make it suitable for a range of general purpose electrical circuits requiring rectification and polarity protection.
Housed in a DO-41 epoxy molded through-hole package, this diode is corrosion resistant on all external surfaces and features terminal leads that are readily solderable. Its physical dimensions, including a length of 5.2 mm and diameter of 2.7 mm, allow for compact installation in densely populated circuit boards.
The diode is designed to withstand operating temperatures from -65°C up to 175°C, ensuring stable performance even in demanding industrial environments. The peak non-repetitive forward surge current of 30 A enables the device to handle transient currents caused by switching or fault conditions.
The cathode side is clearly marked with a polarity band for correct orientation during assembly. The lead temperature for soldering is specified as a maximum of 260°C for 10 seconds, supporting standard manufacturing processes.
Common use cases include high frequency inverter circuits, free wheeling diode applications, and polarity protection in various electronic power control systems. Its robust case and reliable electrical properties make it a preferred choice in industrial automation, HVAC control systems, and power supply manufacturing.
Single diode configuration designed for general purpose low power applications. Epoxy molded case providing corrosion resistance and easy solderability. Maximum operating temperature of 175°C ensures reliable performance under harsh conditions.
Peak non-repetitive forward surge current rating of 30 A allows for transient load handling. Cathode indicated by polarity band for easy identification and correct circuit placement. Pin count of 2 supports standard through-hole mounting.
Typical applications include high frequency inverters, polarity protection, and free wheeling diodes. Lead temperature for soldering purposes is limited to 260°C maximum for 10 seconds. Compact physical size with length of 5.2 mm and diameter of 2.7 mm.
