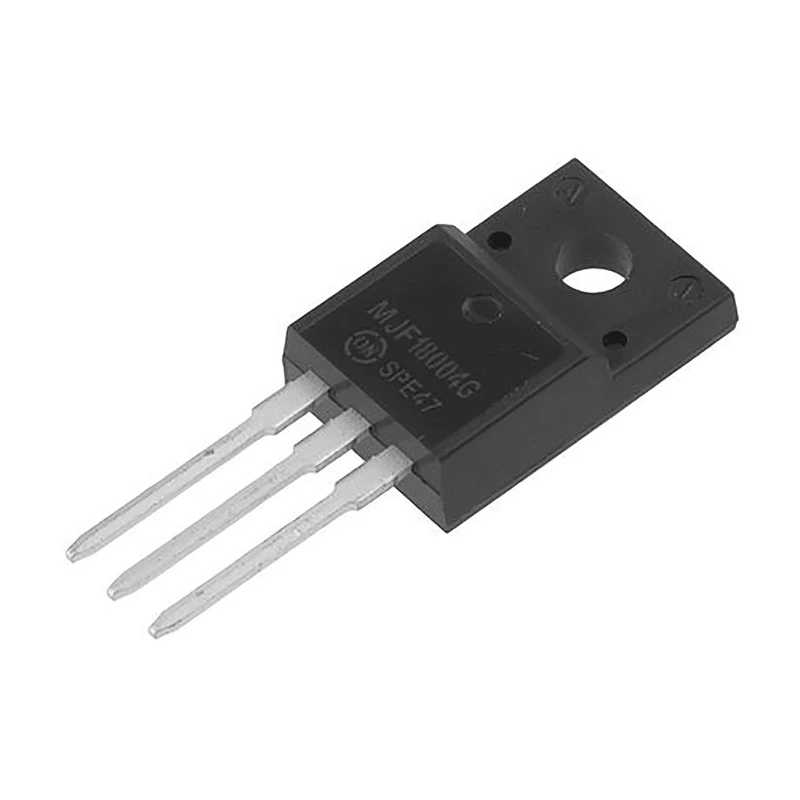

onsemi Transistor, 5 A NPN Bipolar, 450 V Collector Emitter, 75 W Power Dissipation, TO-220 Package MJF18004G

onsemi MJF18004G is a high performance NPN bipolar transistor designed for power amplification and switching applications. It supports a maximum DC collector current of 5 amperes and a collector emitter voltage of up to 450 volts. Packaged in a TO-220 three-pin through-hole mount, it is ideal for integration into power electronics circuits.

This transistor delivers a maximum power dissipation of 75 watts, enabling it to operate effectively in demanding electrical environments. The device features a minimum DC current gain (hFE) of 6 and a maximum transition frequency of 13 MHz, making it suitable for applications requiring moderate frequency response.

With a wide temperature operating range from -65°C to 150°C, the MJF18004G ensures stable performance across harsh industrial and commercial environments. Its collector base voltage rating of 1000 volts and emitter base voltage maximum of 9 volts provide robust voltage endurance, essential for protecting the circuit components.

The single configuration NPN transistor with 3 pins is designed for through-hole mounting on printed circuit boards, easing installation and replacement tasks. Its compact dimensions - length 10.63 mm, width 4.9 mm, and height 29.85 mm - allow it to fit into constrained spaces while delivering powerful performance.

This transistor is widely used in industrial power supplies, motor control circuits, and amplification systems within electronics manufacturing, HVAC controls, and commercial electrical equipment. It is a reliable component choice for engineers designing robust electronic devices requiring efficient power management.

Maximum DC collector current of 5 A ensures robust current capability. Collector emitter voltage rating of 450 V supports high voltage applications. Power dissipation maximum of 75 W allows handling significant power loads.

TTL compatible NPN transistor configuration for diverse circuit requirements. Designed with a through-hole mount type in TO-220 package for easy PCB integration. Pin count of 3 supports standard transistor connections. Wide operating temperature range from -65°C to 150°C enables reliable performance.

Maximum transition frequency of 13 MHz suitable for moderate frequency circuits. Minimum DC current gain (hFE) of 6 provides suitable gain for switching and amplification. Collector base voltage maximum of 1000 V for enhanced voltage tolerance.

The MJF18004G transistor is essential for assembling reliable and efficient power electronics in industrial and commercial applications. Browse the Semiconductor category at EnvMart for more components from onsemi and other leading brands.
