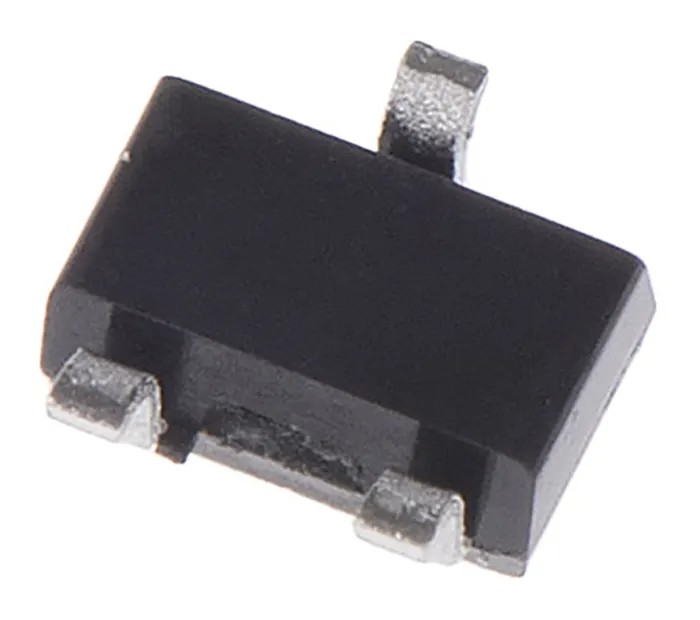

Nexperia Digital Transistor 100 mA NPN 50 V 3-Pin UMT PDTC124XU,115

Nexperia PDTC124XU,115 digital transistor is an NPN bipolar transistor designed for surface mounting in the compact UMT package. It supports a maximum DC collector current of 100 mA and maximum collector-emitter voltage of 50 V, enabling it to handle moderate power switching and amplification tasks reliably.

This digital transistor integrates one or two resistors internally, making it a resistor-equipped bipolar transistor, often referred to as a bias resistor transistor. This configuration allows direct interfacing with digital inputs without requiring additional external components, simplifying circuit design.

The transistor has a single configuration and a pin count of three, which is standard for such devices enabling easy placement on printed circuit boards with high component density. Its compact physical dimensions - 2.2 mm length, 1.35 mm width, and 1 mm height - make it suitable for miniature and portable electronic devices.

Key electrical specifications include a maximum power dissipation of 200 mW, a minimum DC current gain (hFE) of 80, maximum collector-base voltage of 50 V, and maximum emitter-base voltage of 7 V. It operates reliably across a wide temperature range from -65°C to 150°C.

Compact 3-pin digital transistor with integrated bias resistors simplifies driving from logic circuits. Suitable for discrete semiconductor applications and power control circuits. Surface mount type package supports automated assembly and space-saving PCB design.

Wide operating temperature range ensures reliable usage in industrial and electronic component sectors. Moderate power dissipation capability supports small to medium load applications. Ideal for use in signal amplification, switching, and digital interfacing in electronic equipment.

Compatible with standard semiconductor manufacturing processes and quality standards.

This Nexperia digital transistor is widely used in industrial, electronic components, and power semiconductor applications. Its robust design and resistor integration ensure ease of use in circuit designs requiring compact, reliable switching elements. Buyers can find this product under Bipolar Transistors for electronic components catalog at EnvMart.
