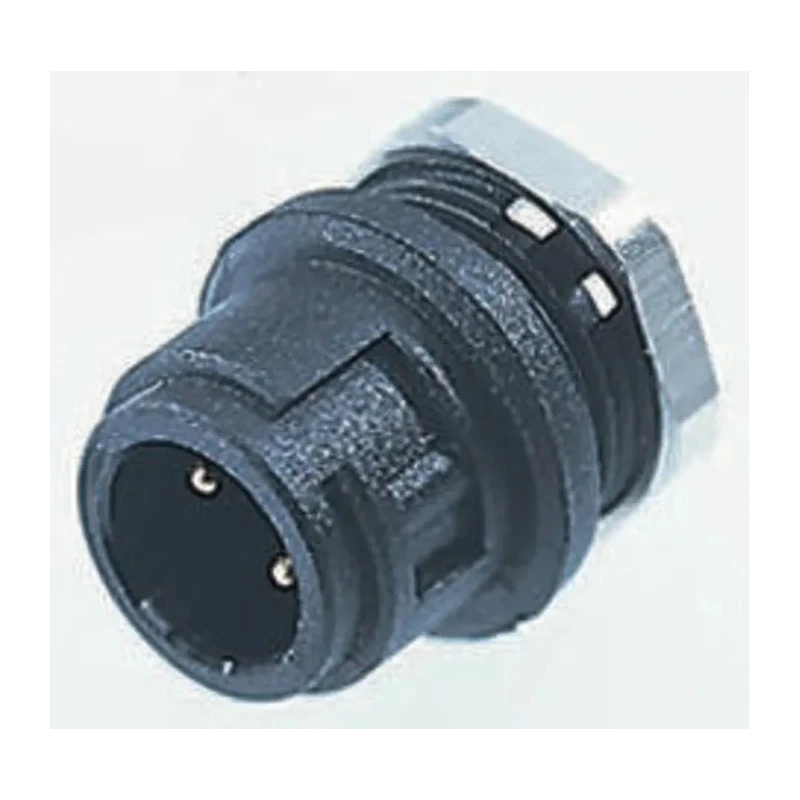

binder Circular Connector 3 Contacts Panel Mount Subminiature Plug Male IP40 710 Series 09-0977-00-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Brass |
| Series | 710 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 10 mm |
| Mating Type | Bayonet |
| Connector Size | Subminiature |
| Plug/Socket | Plug |
Key Features
- Constructed with a metal housing for durability and strength.
- Features gold-plated brass contacts to ensure reliable electrical connections.
- Operates at a voltage rating of 125V and supports currents up to 4A.
- Designed with a bayonet mating type for secure and easy connections.
- Suitable for use in temperature ranges from -40°C to 85°C.
- Has straight orientation and shell size of 10 mm for compact installations.
- Termination type is solder, enabling stable and lasting soldered connections.
- Complies with IP40 protection when mated, protecting against solid object ingress.
Product Description
binder 09-0977-00-03 circular connector is a robust panel mount subminiature plug designed for demanding industrial electronic and electrical applications. The connector features 3 gold-plated brass contacts that provide excellent conductivity and corrosion resistance. Its metal housing enhances mechanical strength while the IP40 rating provides protection against solid object ingress when mated, making it suitable for various industrial environments.
This connector supports operating voltages up to 125V and currents up to 4A, ideal for low-power signal and power transmission needs. Its bayonet mating type and straight orientation ensure quick and secure connections, while the solder termination type guarantees reliable electrical performance through strong cable attachments.
The connector's operating temperature range from -40°C to 85°C allows it to function reliably under harsh temperature conditions. The 10 mm shell size and subminiature design facilitate compact installation in confined panel spaces. The 710 series from binder is well-regarded for its secure bayonet joint and coding lug that prevents incorrect mating, further enhancing connection reliability.
Constructed with a metal housing to ensure mechanical robustness. Gold-plated brass contacts provide excellent electrical conductivity and corrosion resistance. Supports operating voltage of 125V and current of 4A suitable for industrial signal and power applications.
Features bayonet mating type with strain relief via ferrule for secure connection integrity. Rated for usage between -40°C and 85°C in various industrial environments. Panel-mount compatibility with straight orientation and 10 mm shell size enables easy integration.
Solder termination ensures stable and durable electrical terminations. Protection rating of IP40 against dust ingress when mated, suitable for indoor industrial settings. Manufactured in Germany reflecting quality craftsmanship and standards.
This circular connector is widely used in industrial control systems, automation equipment, machinery panels, and electronic instrumentation. It is an optimal choice for industries requiring secure, small form factor panel connectors with reliable mechanical and environmental resistance.
Browse our catalog for more binder Industrial Circular Connectors and other electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 125V and can handle currents up to 4A, making it suitable for low-power signal and power transmission applications.
It features a solder termination type, ensuring stable and durable electrical connections through strong cable attachments.
The connector has an IP40 rating when mated, providing protection against solid object ingress, suitable for indoor industrial environments.
This connector operates reliably within a temperature range of -40°C to 85°C, allowing it to function in harsh conditions.
It is designed with 3 gold-plated brass contacts, which provide excellent conductivity and corrosion resistance.
The shell size of this unit is 10 mm, facilitating compact installations in confined panel spaces.
It features a bayonet mating type, which ensures secure and easy connections, enhancing connection reliability.
This model is manufactured in Germany, reflecting quality craftsmanship and standards.
The housing is constructed from metal, providing mechanical strength and durability.
It is widely used in industrial control systems, automation equipment, machinery panels, and electronic instrumentation.
Yes, it has a straight orientation, which simplifies integration into panel mount applications.
The contacts are made of brass and are gold-plated to ensure reliable electrical connections and resistance to corrosion.
