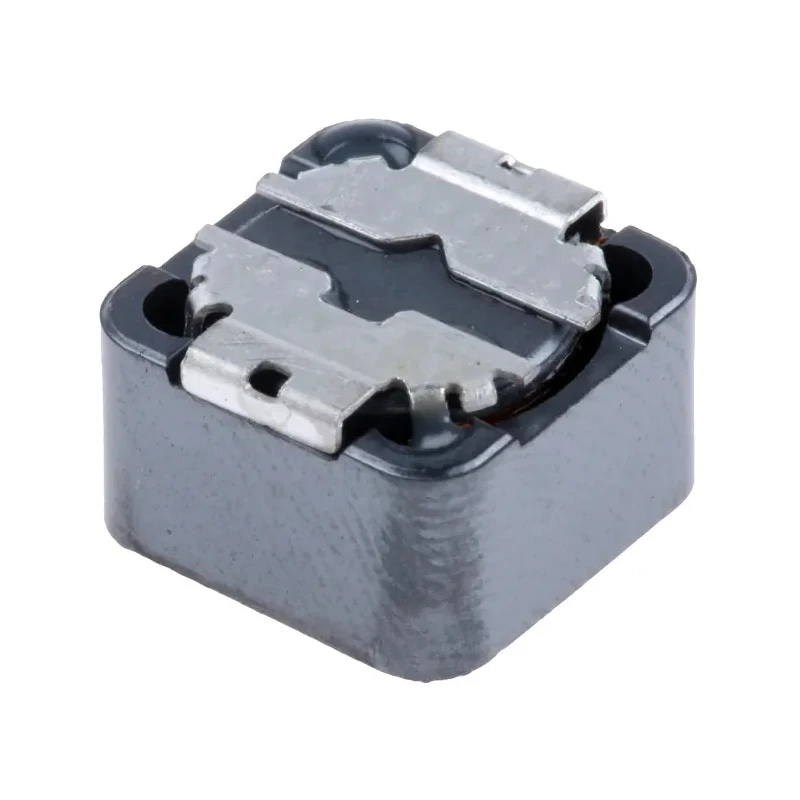

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 33 μH ±20% 3 A IDC B82477G4333M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 8mm |
| Length | 12.8mm |
| Model | B82477G4333M000 |
| Depth | 12.8mm |
| Packaging | Tape & Reel |
| Series | B82477-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 53mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Compact surface mount design measuring 12.8mm in length and 8mm in height.
- Magnetically shielded ferrite core enhancing electromagnetic compatibility.
- Wirewound construction with enamel copper wire ensures stability and performance.
- Inductance tolerance of ±20% suitable for a range of filtering and voltage applications.
- Maximum DC resistance of 53mΩ minimizes power loss.
- Operating temperature range from -55°C to 125°C for robust performance.
- Termination style is solder with lead-free tinned terminals for environmental compliance.
- Packaged in tape & reel format for automated assembly processes.
Product Description
TDK B82477G4333M000 is a shielded wirewound surface mount inductor with a ferrite core, offering an inductance of 33 μH with ±20% tolerance and rated for a maximum DC current of 3 A IDC. This surface mount device features a compact form factor with dimensions 12.8mm in length, 8mm in height, and 12.8mm in depth, making it suitable for space-constrained electronic assemblies.
The magnetically shielded ferrite core and wirewound construction using enamel copper wire provide superior electromagnetic compatibility and signal integrity, ideal for filtering supply voltages, DC-DC conversion circuits, and automotive electronics. The inductor's maximum DC resistance of 53 milliohms ensures efficient current flow with minimal power loss.
It is designed to operate reliably in a broad temperature range from -55°C to 125°C and comes with lead-free solder termination that supports RoHS compliance, promoting environmentally responsible manufacturing.
This inductor is supplied in tape & reel packaging, facilitating automated pick-and-place assembly for high-volume manufacturing environments. The B82477-G4 series designation assures design consistency and quality standards for wirewound inductors.
Compact surface mount design measuring 12.8mm in length and 8mm in height. Magnetically shielded ferrite core to reduce electromagnetic interference. Wirewound construction enhances electrical performance and durability.
33 μH inductance with ±20% tolerance for precise filtering applications. Maximum DC current rating of 3 A ensures suitability for medium current circuits. Lead-free solder termination style supports environmental compliance.
Wide operating temperature range from -55°C to 125°C for resilient use cases. Packaged in tape & reel for streamlined manufacturing processes. RoHS certified for regulatory compliance in electronics manufacturing. Applications include supply voltage filtering, DC-DC converters, and automotive electronics.
This surface mount inductor is ideal for a broad array of industrial, automotive, and electronic manufacturing applications requiring compact, reliable inductors with excellent electrical and thermal characteristics. For more products like this, browse the Surface Mount Inductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 33 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 3 A IDC.
This unit measures 12.8mm in length, 8mm in height, and 12.8mm in depth.
The maximum DC resistance is 53 milliohms, which helps minimize power loss.
It operates reliably within a temperature range of -55°C to 125°C.
It features a ferrite core, which enhances electromagnetic compatibility.
This inductor is packaged in tape & reel format for automated assembly processes.
It has a solder termination style with lead-free tinned terminals for environmental compliance.
This model is RoHS certified, ensuring compliance with environmental regulations.
It utilizes a wirewound construction with enamel copper wire for stability and performance.
It is suitable for applications such as supply voltage filtering, DC-DC converters, and automotive electronics.
This inductor belongs to the B82477-G4 series, which assures design consistency and quality standards.
