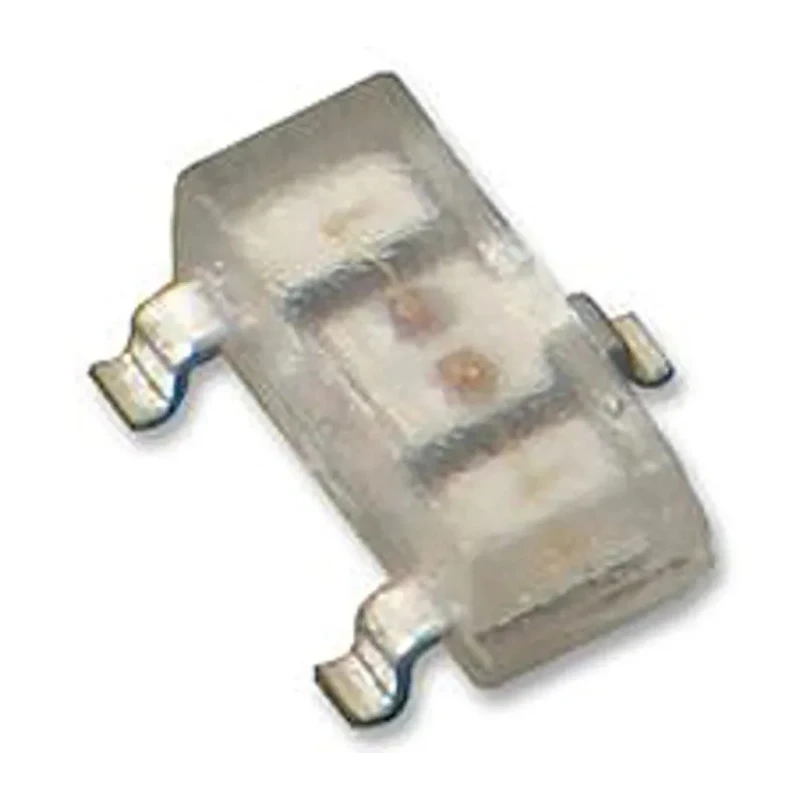

Kingbright 2.5 V Red LED SOT-23 Surface Mount KA-23 KM-23EC-F

Name: Kingbright 2.5 V Red LED SOT-23 Surface Mount KA-23 KM-23EC-F
Brand: Kingbright
SKU: 134751
Price: 0.38 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.0 x 1.3 mm
Model	KM-23EC-F
Packaging	Tape & Reel
Mount Type	Surface
Series	KA-23
Maximum forward current	160mA
Viewing angle	140 °
Package Type	SOT-23
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	617nm
Forward Voltage	2.5V
Number of Pins	3
LED Luminosity	12 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3 x 1.3 x 0.95 mm
Lens Shape	Rectangular

Key Features

Utilizes industry standard SOT-23 surface mount package for reliable mounting.
Emits red light with a dominant wavelength of 617 nm for clear indication.
Maximum power dissipation rated at 75 mW ensuring low power consumption.
Viewing angle is wide at 140 degrees for broad visibility.
Comes with tape and reel packaging suitable for automated assembly.
Compact lens dimensions of 3 x 1.3 x 0.95 mm facilitate space saving designs.
Rectangular clear lens offers consistent light output and durability.
Solid state reliability provides long operational life and low maintenance.

Product Description

Kingbright KM-23EC-F is a red LED housed in an industry standard SOT-23 surface mount (SMT) package. This LED operates at a forward voltage of 2.5 V and supports a maximum forward current of 160 mA, making it suitable for low power indicator applications.

The device features a 75 mW maximum power dissipation rating and a wide 140-degree viewing angle, ensuring excellent visibility from multiple directions. Its compact lens dimensions of 3 x 1.3 x 0.95 mm and rectangular clear lens design optimize space usage while maintaining optical clarity.

The KM-23EC-F LED emits red light with a dominant wavelength of 617 nm and has a luminosity of 12 mcd, suitable for a variety of electronic signaling and display uses. It comes supplied in tape and reel packaging, enabling efficient automated insertion for manufacturing.

Kingbright's SMT SOT-23 LEDs are well-known for their solid state reliability and long operational life, making them ideal for electronics manufacturing, industrial control panels, consumer electronics, and signaling devices, where durability and consistent performance are required.

Industry standard SOT-23 surface mount package for ease of integration into PCB designs. Red LED emitting at 617 nm dominant wavelength with 12 mcd brightness. Low forward voltage of 2.5 V and maximum forward current rating of 160 mA.

Maximum power dissipation of 75 mW ensures energy-efficient operation. Wide 140° viewing angle enhances visibility from different positions. Compact lens dimensions reduce PCB space usage. Clear rectangular lens for consistent light output.

RoHS compliant ensuring environmental friendliness. Packaged in tape and reel for smooth automated assembly processes.

This LED is suited for applications in electronics manufacturing, LED indicators, signage, instrumentation panels, and other electronic devices requiring reliable surface-mount LEDs.
