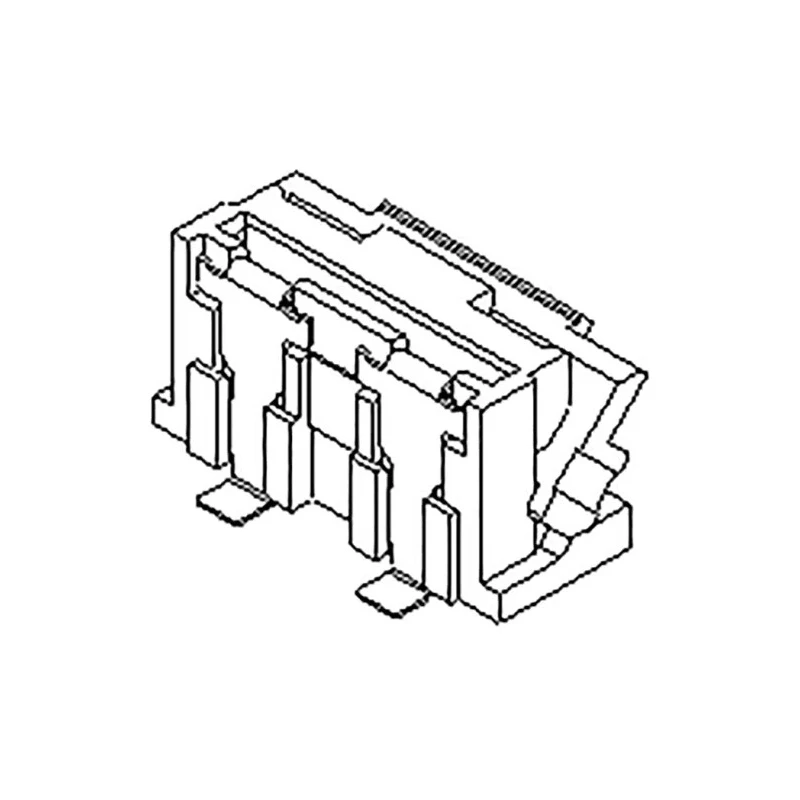

Molex FPC Connector 0.5 mm Pitch 15 Way Vertical Female Easy-On FFC/FPC Surface Mount 502231-1500
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 502231 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold, Tin |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- The connector is made of phosphor bronze contacts for durability and performance.
- It supports a current rating of 400mA, suitable for low-current applications.
- Contact plating is a combination of gold and tin to ensure reliable connectivity.
- Housing is manufactured from liquid crystal polymer providing excellent insulation and mechanical strength.
- Operates reliably within a temperature range of -25°C to 85°C.
- Vertical orientation and a Zero Insertion Force (ZIF) mechanism ease the assembly process.
- Locking mechanism included to secure connections in place.
- Designed for low voltage (50Vrms) applications with one row of contacts.
Product Description
Molex 502231-1500 is a high-precision FPC Connector designed with a 0.5 mm pitch and a 15 way vertical female contact layout, making it suitable for compact electronic assemblies requiring reliable flexible printed circuit connections.
This Easy-On FFC/FPC Connector supports surface mount termination with a Zero Insertion Force (ZIF) design, which enables easy insertion of cables without damage. The connector features phosphor bronze contacts plated with gold and tin to provide excellent electrical conductivity and resistance to corrosion, ensuring stable performance over time.
The housing is made from liquid crystal polymer, offering robust mechanical strength and high temperature resistance. The connector operates reliably between -25°C and 85°C and supports a current rating of 400mA with voltage rating up to 50Vrms, making it ideal for low power and signal-level applications.
Its vertical orientation and a locking mechanism secure cable placement, reducing risk of disconnection in industrial and commercial electronic equipment, including computer peripherals, communication devices, and automotive systems.
Manufactured in Japan, it meets stringent quality and reliability standards expected in demanding electronic environments. The connector contacts are phosphor bronze for strength and conductivity. Gold and tin plating ensure corrosion resistance and signal integrity.
Liquid crystal polymer housing provides excellent insulation and durability. Supports a current rating of 400mA and voltage of 50Vrms. Operates effectively in temperatures from -25°C to 85°C. Zero Insertion Force (ZIF) mechanism for easy cable insertion.
Vertical female orientation with locking mechanism included. Surface mount termination suitable for modern PCB assembly processes. Single row design with 15 contacts for compact applications.
This Molex 502231-1500 connector is widely used in electronic manufacturing, industrial automation, telecommunications, and automotive industries. It is essential for electrical engineers and assembly technicians requiring reliable interconnect solutions for FPC/FFC cables. Explore more high-quality connectors in our Electronics Components category at EnvMart for comprehensive electronics assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 400mA, making it suitable for low-current applications.
It operates reliably within a temperature range of -25°C to 85°C.
The connector features phosphor bronze contacts and a housing made from liquid crystal polymer, ensuring excellent insulation and mechanical strength.
This unit has 15 contacts arranged in a single row design.
It utilizes surface mount termination, suitable for modern PCB assembly processes.
The connector is designed with a vertical orientation for easy integration into electronic assemblies.
The ZIF mechanism allows for easy insertion of cables without damage, facilitating a straightforward assembly process.
The contacts are plated with a combination of gold and tin, which enhances electrical conductivity and corrosion resistance.
It is widely used in electronic manufacturing, industrial automation, telecommunications, and automotive systems.
The connector is designed for low voltage applications, with a voltage rating of up to 50Vrms.
This connector is manufactured in Japan, adhering to stringent quality and reliability standards.
The locking mechanism secures connections in place, reducing the risk of disconnection in various applications.
