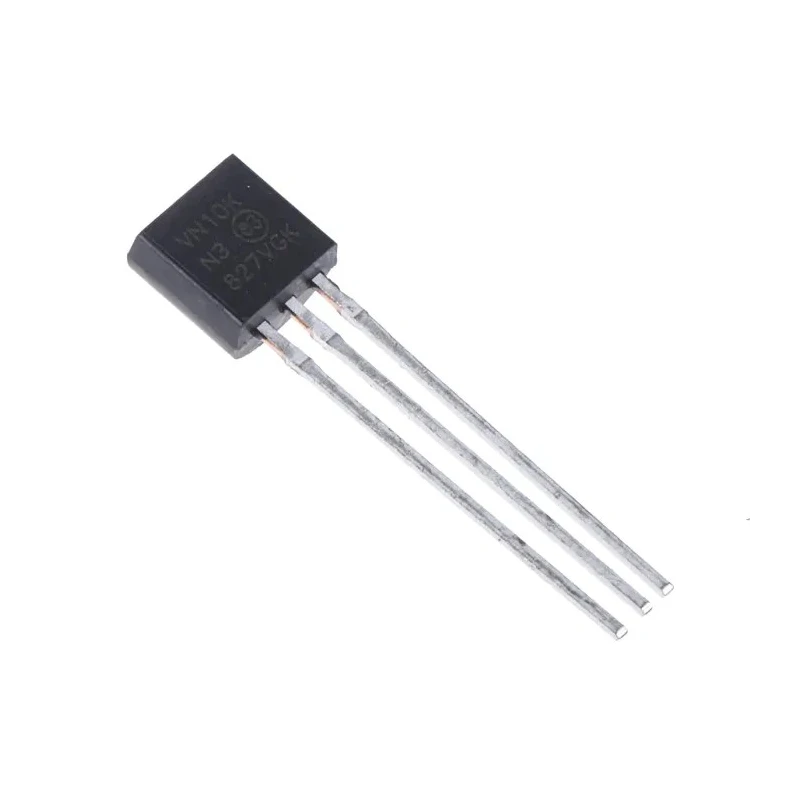

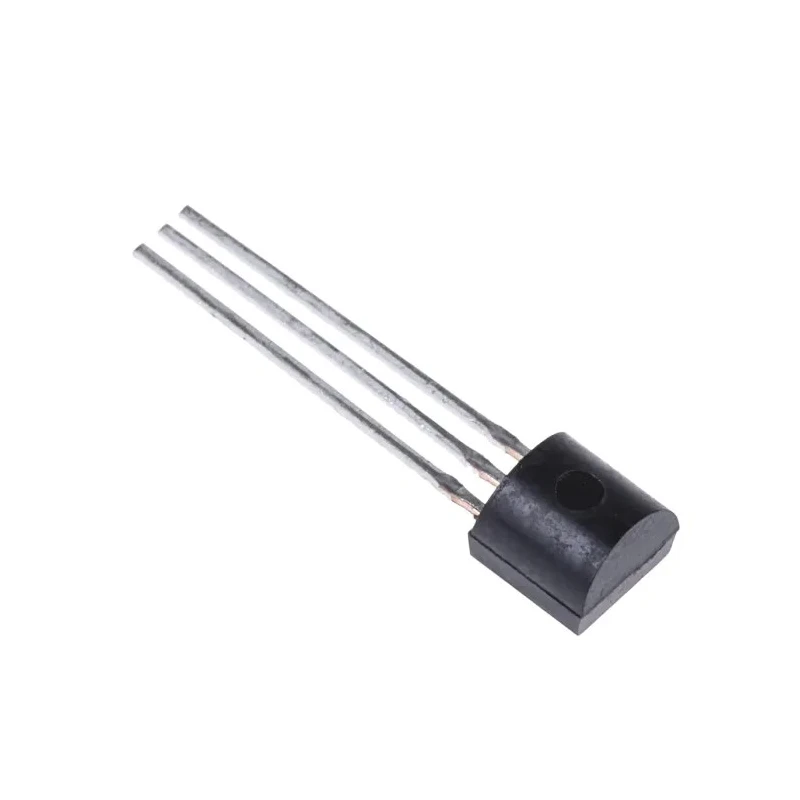

Microchip Type N-Channel MOSFET 310mA 60V Enhancement Mode 3-Pin TO-92 VN10K

Microchip VN10K Type N-Channel MOSFET is a new generation enhancement mode transistor designed using vertical DMOS and silicon gate processes. It supports a maximum continuous drain current of 310mA and a maximum drain-source voltage of 60V, housed in a 3-pin TO-92 through-hole package suitable for various industrial and laboratory electronic applications.

Its low maximum drain-source resistance of 7.5Ω at a gate-source voltage of 10V ensures efficient conduction and switching performance. The MOSFET operates reliably over a wide temperature range from -55°C to 150°C, providing excellent thermal stability and resistance to thermal runaway or secondary breakdown.

The device features an integral source-drain diode and low input capacitance, enabling fast switching speeds with low power drive requirements. It is ideally suited for applications in amplifiers, converters, motor control circuits, power supplies, and relay drivers. Its robust design also ensures a long service life without compromising functionality.

This MOSFET supports a maximum gate-source voltage of 30V and a maximum power dissipation of 1W, making it versatile for both commercial and industrial electronics assembly. The VN10K is easy to parallel and shows excellent thermal stability.

It is free from secondary breakdown thanks to its vertical DMOS structure. Its high input impedance contributes to its efficient operation. Low forward voltage and gate drive requirements simplify circuit design. Channels use enhancement mode for normally off operation enhancing safety in circuits.

Microchip's VN10K is well recognized for applications in various domains including industrial electronics, automation, motor drives, power supply controls, and other semiconductor switching duties.
