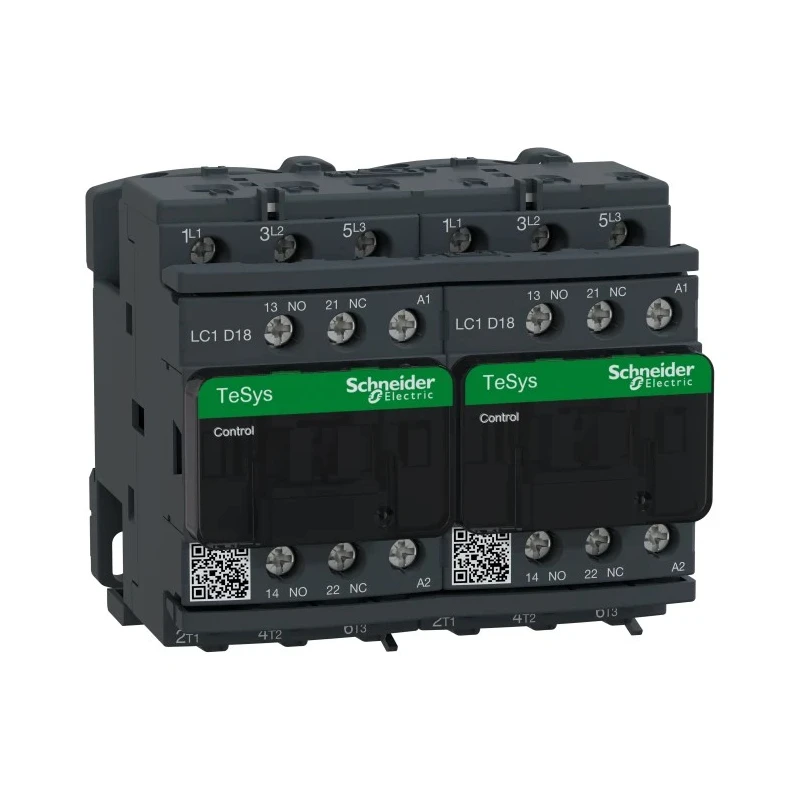

Schneider Electric 24V ac Coil, 3-Pole, 18 A, 7.5 kW Motor Control Reversing Contactor LC2D18B7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D18B7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Features 3 main poles and 3 normally open contacts for effective circuit switching.
- Equipped with built-in auxiliary contacts for added switching capability.
- Pre-installed interlock ensures safety and prevents simultaneous closing of reversible contactors.
- Screw terminal connections provide IP20 finger-safe protection with international terminal markings.
- Can be mounted on DIN rail or panel with screws for flexible installation.
- Operates reliably within temperature range of -25°C to 50°C.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC2D18B7 is a 3-pole reversing contactor with a coil voltage of 24V ac designed for precise motor control and resistive load switching in industrial environments. Rated for an operational current of 18 A and power handling up to 7.5 kW at 24V ac coil, this contactor ensures stable and reliable switching performance in demanding applications.
The LC2D18B7 model features three normally open (3 NO) contacts and two auxiliary contacts configured as 2 NO/2 NC, enhancing flexibility for complex control circuits. The device includes a pre-installed mechanical interlock preventing simultaneous energizing of forward and reverse contactors, thus protecting motors in reversing applications.
Installation is straightforward with DIN rail or panel mounting options using screws. Its screw terminals offer IP20 finger-safe protection with both North American and international terminal markings, ensuring compliance with safety standards. The contactor reliably operates over a temperature range from -25°C to 50°C, suitable for various industrial and commercial settings.
The LC2D series utilizes linear translation movement enabling double breaking of poles for improved electrical endurance and safety during switching cycles. This contactor meets international certifications including CCC, CSA, EAC, IEC, RoHS, and UL, underscoring its quality and environmental compliance.
Typical industrial use cases for the LC2D18B7 include motor control circuits, resistive load management, conveyor systems, pumps, compressors, mixers, escalators, and other automated manufacturing and HVAC equipment where reversing motor control is required.
Set includes the LC2D18B7 contactor with standard screw terminal fittings ready for integration into control panels and automation gear. Designed for motor control and resistive load applications. Features 3 main poles and 3 normally open contacts for effective circuit switching.
Equipped with built-in auxiliary contacts for added switching capability. Pre-installed interlock ensures safety and prevents simultaneous closing of reversible contactors. Screw terminal connections provide IP20 finger-safe protection with international terminal markings.
Can be mounted on DIN rail or panel with screws for flexible installation. Operates reliably within temperature range of -25°C to 50°C. Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL. Part of Schneider Electric’s LC2D series known for long mechanical and electrical life.
Explore more Schneider Electric Contactors and related automation components at EnvMart to support your industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D18B7 contactor has a power rating of 7.5 kW.
This model operates with a coil voltage of 24V AC.
The contactor features 3 main poles.
The maximum operating temperature for the LC2D18B7 is 50°C.
It is designed for motor control and resistive load applications.
The contactor has an operational current rating of 18 A.
The auxiliary contact configuration consists of 2 normally open (2 NO) and 2 normally closed (2 NC) contacts.
It can be mounted on DIN rail or panel using screws for flexible installation.
It features screw terminal connections that provide IP20 finger-safe protection.
This model complies with standards including CCC, CSA, EAC, IEC, RoHS, and UL.
The contactor has a depth of 86 mm and a width of 90 mm.
Typical applications include conveyor systems, pumps, compressors, mixers, and HVAC equipment requiring motor control.
