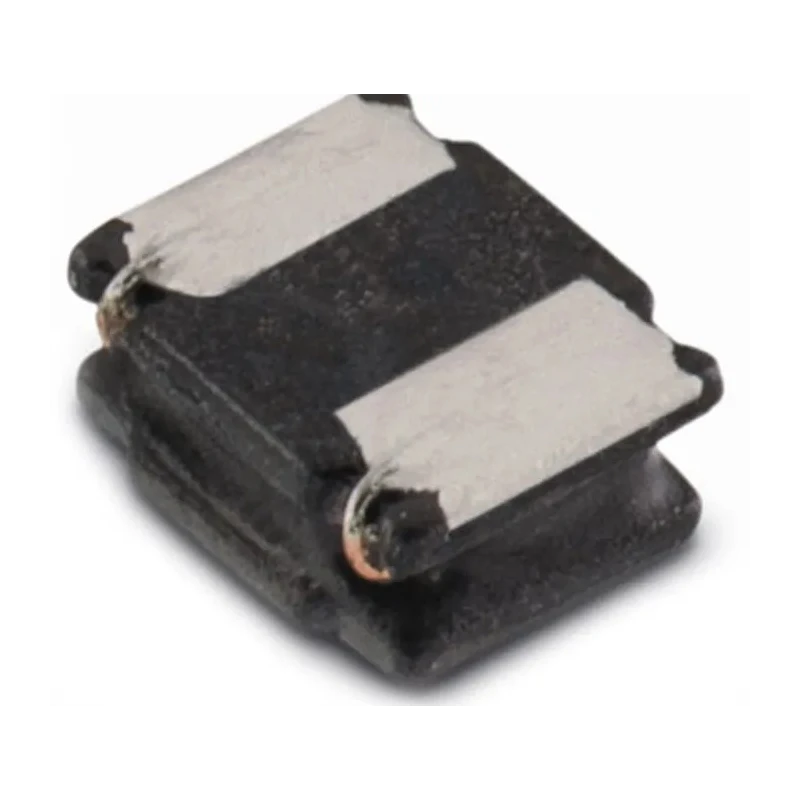

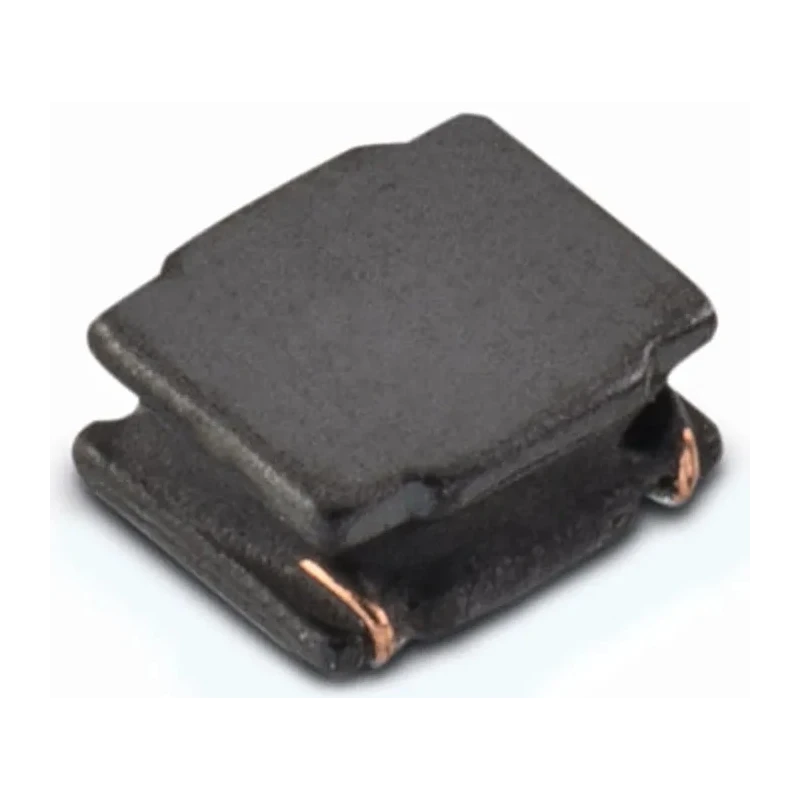

Wurth Elektronik Magnetically Shielded Wirewound Surface Mount Inductor, 10 μH ±20 %, 500 mA Idc, Ferrite Core 74404020100

Wurth Elektronik 74404020100 is a magnetically shielded wirewound surface mount inductor featuring a ferrite core and a compact 2010 package size. This surface mount component delivers an inductance of 10 μH with a tolerance of ±20 %, making it suitable for precision tuning and filtering applications within electronic circuits.

The inductor supports a maximum DC current of 500 mA and maintains a low DC resistance of 850 mΩ to ensure efficient current flow and reduced power loss. Designed to operate in a temperature range from -40°C up to 125°C, it complies with the rigorous automotive standard AEC-Q200, guaranteeing reliability in harsh environments including automotive and industrial electronics.

The component's magnetic shielding aids in minimizing electromagnetic interference (EMI) making it ideal for use in dense circuit configurations. With a maximum self-resonant frequency of 39 MHz, it performs well in high-frequency switching and power conversion circuits.

Constructed with a robust ferrite core and wirewound design, it provides stable inductance characteristics and mechanical durability. The surface mount termination style with two pins ensures easy and reliable integration onto PCBs using tape & reel packaging for automated assembly processes.

Typical applications for the Wurth Elektronik WE-LQS series inductors include switching controllers, power supplies, portable electronic devices such as PDAs, smartphones, digital cameras, and TVs, where efficient power conversion and signal conditioning are required.

The inductor features a 2010 package size and is delivered in tape & reel format. It is magnetically shielded to minimize electromagnetic interference in circuits. Rated maximum DC current of 500 mA ensures suitability for low to moderate power applications.

Operating temperature range supports use in automotive and industrial environments. Low DC resistance of 850 mΩ improves power efficiency. Wirewound construction with a ferrite core provides stable inductance. Meets automotive AEC-Q200 standard for quality and reliability.

Maximum self-resonant frequency of 39 MHz allows high-frequency operation. Moulded body enhances mechanical robustness on PCB assemblies. Explore more Surface Mount Inductors for electronic component solutions on EnvMart.
