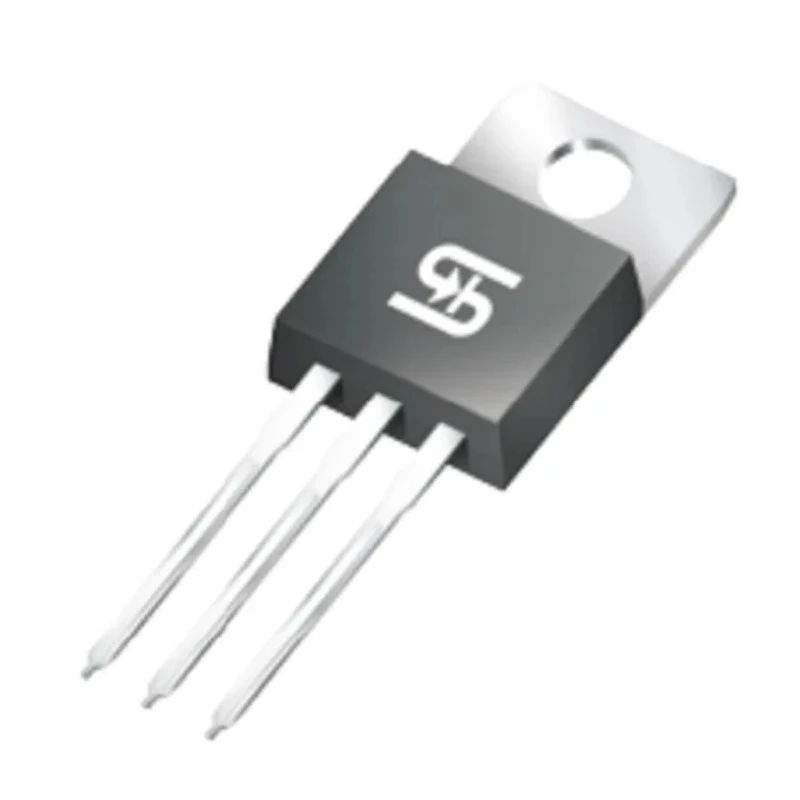

Taiwan Semiconductor Rectifier & Schottky Diode 60V 30A TO-220AB TST30L60CW

Name: Taiwan Semiconductor Rectifier & Schottky Diode 60V 30A TO-220AB TST30L60CW
Brand: Taiwan Semiconductor
SKU: 93135
Price: 1.06 USD
Availability: InStock



Category Schottky Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Model	TST30L60CW
Mount Type	Through Hole
Series	TST30L60CW
Maximum Operating Temperature	150°C
Package Type	TO-220AB
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Dual Dies
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	0.98V

Key Features

Maximum continuous forward current of 30A for high-performance applications.
Peak reverse repetitive voltage of 60V ensures robust operation in demanding environments.
Low forward voltage drop (0.98V) enhances power efficiency and reduces losses.
Dual die configuration in a standard TO-220AB package optimizes thermal management.
Excellent high temperature stability for reliable performance.
Halogen-free and RoHS compliant for environmentally safe design.
Peak non-repetitive forward surge current capability of 100A supports transient load demands.
Automotive standard not supported, intended for power supply, adapter and converter applications.

Product Description

Taiwan Semiconductor TST30L60CW Rectifier & Schottky Diode delivers high current capability of up to 30A and operates at a maximum reverse voltage of 60V. Designed with a dual die configuration and housed in a TO-220AB package, this device leverages patented Trench Schottky technology to offer excellent high temperature stability and low forward voltage, translating to superior efficiency for demanding electronic applications.

The low forward voltage drop of 0.98V reduces power loss, making this diode ideal for switching mode power supplies (SMPS), DC-DC converters, and adapters. Its peak non-repetitive forward surge current capacity of 100A ensures resilience against transient loads, safeguarding system reliability.

Environmentally conscious, the TST30L60CW is halogen-free according to IEC 61249-2-21 standards and RoHS compliant, ensuring it meets strict regulatory requirements. The through-hole mounting and TO-220AB package offer straightforward PCB integration and effective heat dissipation.

Rated for operation between -55°C and 150°C, this rectifier/Schottky diode is well-suited for industrial, power supply, and commercial electronics where robust performance and reliability are vital.

Maximum continuous forward current of 30A for high-performance applications. Peak reverse repetitive voltage of 60V ensures robust operation in demanding environments. Low forward voltage drop (0.98V) enhances power efficiency and reduces losses.

Dual die configuration in a standard TO-220AB package optimizes thermal management. Excellent high temperature stability for reliable performance. Halogen-free and RoHS compliant for environmentally safe design. Peak non-repetitive forward surge current capability of 100A supports transient load demands.

Automotive standard not supported, intended for power supply, adapter and converter applications.

Typical use cases include industrial switching power supplies, DC-DC conversion modules, and adapter electronics. Suitable for environments requiring efficient rectification and high reliability in commercial and manufacturing sectors.

Browse more Schottky Diodes and rectifiers from Taiwan Semiconductor and other leading suppliers in the EnvMart catalogue for your semiconductor and discrete component requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current for the TST30L60CW is 30A, making it suitable for high-performance applications.

This model has a peak reverse repetitive voltage of 60V, ensuring robust operation in demanding environments.

The forward voltage drop for this diode is 0.98V, which enhances power efficiency and reduces losses.

The peak non-repetitive forward surge current capability of this unit is 100A, supporting transient load demands.

The TST30L60CW operates within a temperature range of -55°C to 150°C, suitable for various industrial applications.

This model features a through-hole mounting type, facilitating straightforward PCB integration.

It is housed in a TO-220AB package, which optimizes thermal management.

Yes, it is halogen-free and RoHS compliant, ensuring it meets strict regulatory requirements for environmentally safe design.

This diode is intended for use in power supply, adapter, and converter applications, particularly in industrial switching power supplies and DC-DC conversion modules.
