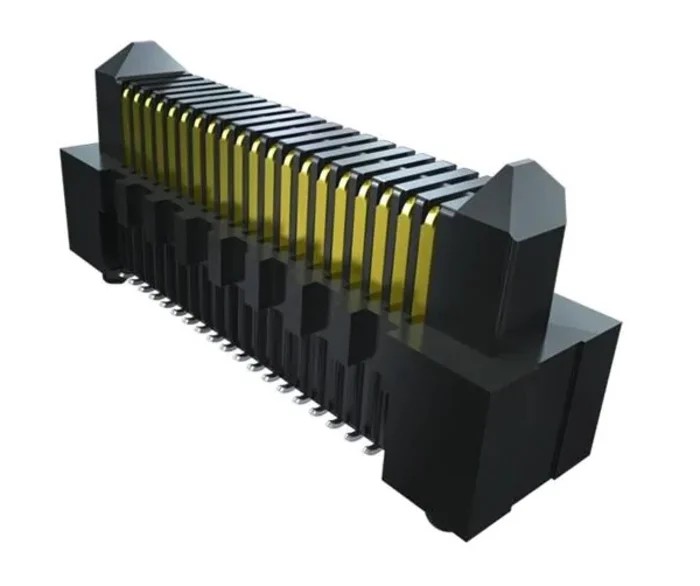

Samtec ERM8 Series Vertical Surface PCB Header, 20 Contacts, 0.8 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

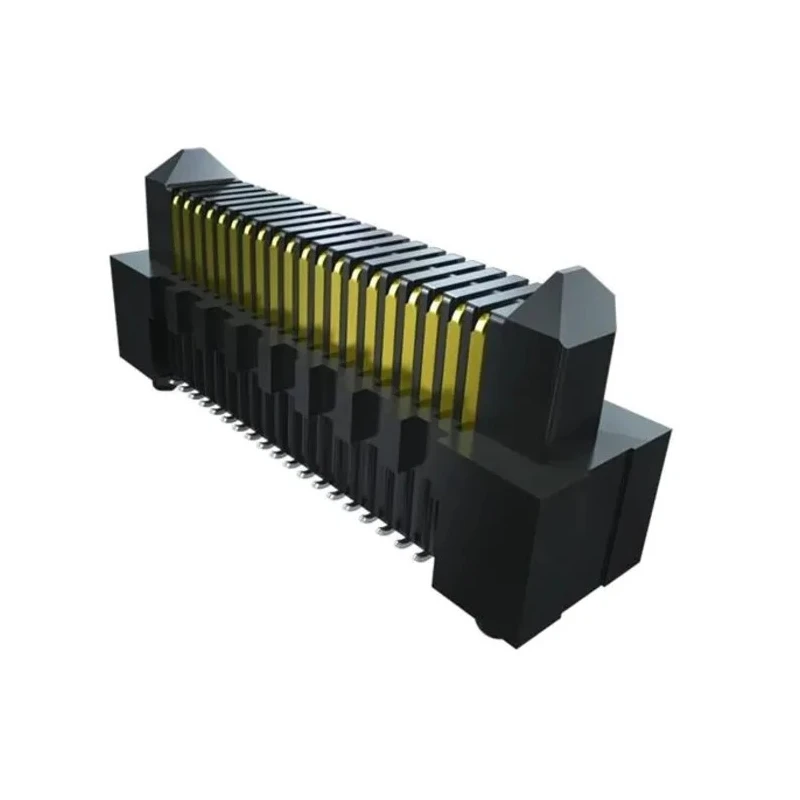

Samtec ERM8 Series Vertical Surface PCB Header, 20 Contacts, 0.8 mm Pitch, 2 Row, Shrouded

Name: Samtec ERM8 Series Vertical Surface PCB Header, 20 Contacts, 0.8 mm Pitch, 2 Row, Shrouded
Brand: Samtec
SKU: 90389
Price: 6.32 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	318V
Brand	Samtec
Orientation	Vertical
Current	1.4A
Model	ERM8
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ERM8
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Offers 20 contacts with 0.8 mm pitch for compact PCB layouts.
Dual-row, vertical orientation simplifies surface mounting and maximizes connectivity.
Shrouded structure provides enhanced mechanical protection and positioning accuracy.
Current rating up to 1.4A and voltage rating of 318V for robust electrical performance.
Contact material is phosphor bronze with gold plating for superior conductivity and durability.
Housing made of liquid crystal polymer delivers heat resistance and strength.
Operates reliably over a wide temperature range from -55°C to 125°C.
Solder termination and tape-and-reel packaging enable automated assembly processes.

Product Description

Samtec ERM8-010-05.0-L-DV-K-TR is a high-speed vertical surface mount PCB header designed for board-to-board connections in complex electronic assemblies. This connector delivers robust performance thanks to its dual-row configuration of 20 contacts, each spaced by a tight 0.8 mm pitch, ensuring efficient signal transmission within compact footprints.

The shrouded housing improves mechanical accuracy and alignment during mating, reducing the risk of damage and ensuring a secure connection even in rugged, high-vibration environments. Phosphor bronze contacts with gold plating ensure reliable conductivity, minimize contact resistance, and resist corrosion across demanding industrial and laboratory applications.

The liquid crystal polymer housing offers outstanding heat resistance and mechanical strength, supporting solder mounting and automated processes for modern surface-mount technology. With a current rating of up to 1.4A and voltage endurance up to 318V, this header serves applications requiring reliable electrical performance.

Capable of operating from -55°C to 125°C ambient temperature. Dual vertical row construction maximizes connection density. Polyimide film pick-and-place pad and tape-and-reel packaging support high-volume assembly lines.

Male contact gender and shrouded design ensure stable mating and precise fit. Board-to-board connector system ideal for embedded computing, control systems, and signal interface modules. Gold contact plating maximizes signal integrity and minimizes wear.

RoHS compliant; suitable for industrial, laboratory, commercial, and manufacturing uses.

Common use cases include industrial automation, instrumentation, embedded computing boards, and advanced signal interfaces requiring high-speed, reliable connections. The ERM8 series meets the needs of engineers seeking compact, durable interconnect solutions with superior performance for harsh environments.

Explore more PCB Headers, connectors, and electronic components from Samtec and related EnvMart categories for reliable connection solutions in industrial, laboratory, and commercial electronics.
