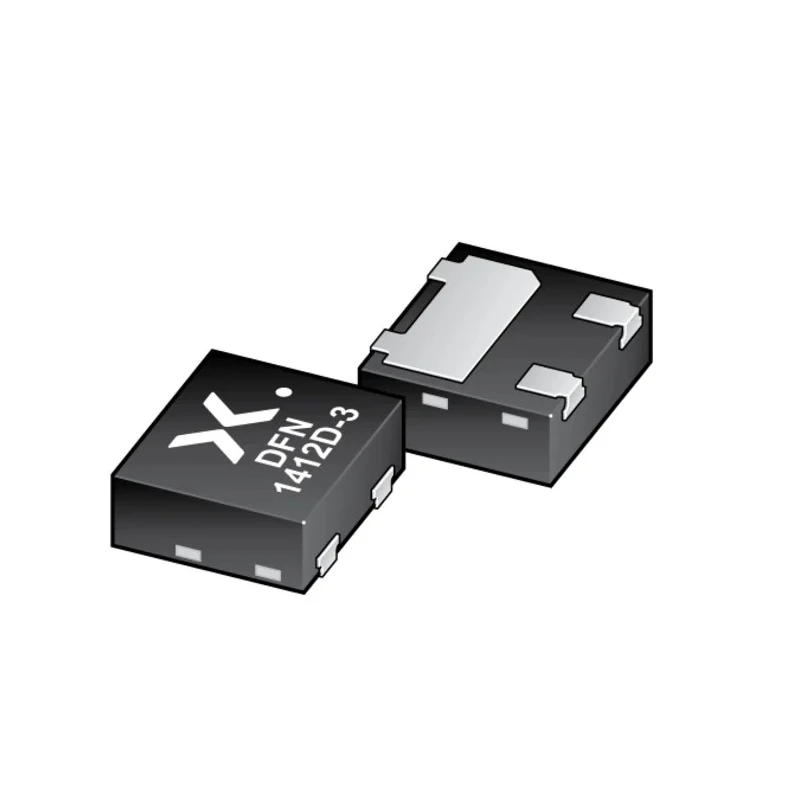

Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1412D-3, Surface Mount, PESD2CANFD27U-QCZ

Nexperia PESD2CANFD27U-QCZ Bi-Directional ESD Protection Diode is engineered for robust electrostatic discharge (ESD) protection in automotive and industrial environments. This high-performance device features a compact 3-pin DFN1412D-3 surface mount package, providing a dependable solution for safeguarding two in-vehicle or industrial data lines.

With a minimum breakdown voltage of 28 V and a maximum reverse stand-off voltage of 27 V, this protection diode delivers reliable performance in demanding applications. Its low clamping voltage of 45 V and peak pulse current rating of 1.8 A ensure superior transient suppression against surges and ESD events. The PESD2CANFD27U-QCZ also features an ultra-low capacitance (4.0 pF), making it suitable for high-speed signal lines with minimal signal distortion.

Bi-directional ESD protection for in-vehicle and industrial bus lines. Compact DFN1412D-3 package optimizes PCB space for dense applications. Peak pulse current handling up to 1.8 A and reverse leakage current as low as 50 nA.

Automotive standard AEC-Q101 qualified for harsh operating conditions. Supports high-voltage operation with excellent breakdown and clamping specifications. RoHS compliant construction aligns with environmental regulatory standards.

Temperature range from -65°C to 150°C enables reliable use in under-the-hood and exposed installations. Meets IEC 61000-4-2 standards for ESD robustness and transient immunity.

Commonly used for protecting CAN-FD and other automotive data bus interfaces, this diode is well-suited for industrial automation, process control, and communication line applications.
