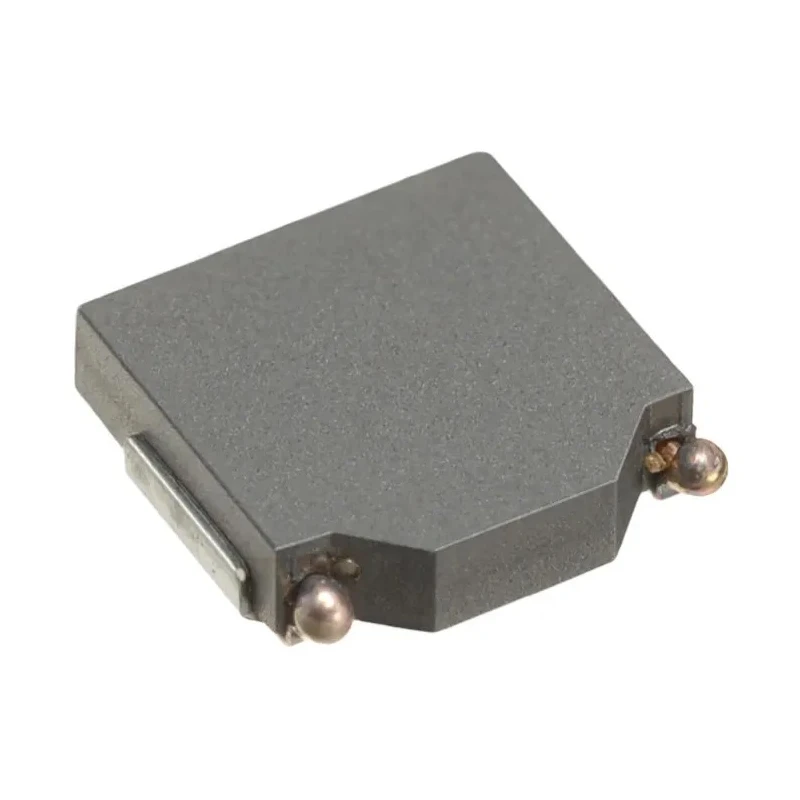

TDK SPM-LR 5020 Shielded Wirewound Surface Mount Inductor, Metal Core, 4.7μH ±20%, 3.7A, SPM5020T-4R7M-LR
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.4mm |
| Model | SPM5020T-4R7M-LR |
| Depth | 5.1mm |
| Series | SPM-LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 3.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 67.6mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Shielded wirewound construction ensures reduced electromagnetic interference.
- Inductance rated at 4.7μH with ±20% tolerance for stable circuit operation.
- Metal core optimizes magnetic characteristics and minimizes hum noise.
- Maximum DC current up to 3.7A supports demanding power applications.
- 5020 package size provides low profile, compact integration for modern electronics.
- RoHS compliant for environmentally-friendly manufacturing.
- Reliable operation within -40°C to 125°C temperature range.
- Surface mount design is ideal for automated assembly process.
Product Description
TDK SPM5020T-4R7M-LR is a magnetically shielded wirewound surface mount inductor designed for advanced power electronic circuits. Featuring a metal core and robust wirewound construction, this device offers an inductance of 4.7μH with ±20% tolerance and supports continuous operation under DC currents up to 3.7A. The 5020 package ensures a low profile, compact footprint, making it suitable for dense layouts in modern electronics.
This inductor utilizes a metallic magnetic material for enhanced performance and lower hum noise compared to conventional core adhesive coils. Magnetic shielding reduces electromagnetic interference, supporting critical power supply applications and maintaining circuit stability.
Optimized for minimal inductance variance in high temperature environments, ensuring reliable performance in tablets, notebooks, HDDs, servers, and compact power modules. Low maximum DC resistance of 67.6mΩ enables efficient energy transfer and supports high current demands.
Surface mount termination style allows automated assembly and placement, simplifying production of PCBs. Operating temperature ranges from -40°C to 125°C suit demanding industrial and commercial conditions. RoHS approval guarantees compliance with environmental standards.
Wirewound and moulded construction increases durability and operational longevity.
Applications include compact power supply modules, tablet terminals, notebooks, hard disk drives, and servers. The SPM5020 series is recognized for meeting strict performance requirements in power circuits and supporting industrial, laboratory, and commercial electronics.
TDK surface mount inductors offer compatibility across a range of PCB assembly processes, making them an excellent choice for electronics manufacturers seeking reliability and versatile integration. Packaged with two pins, the SPM5020T-4R7M-LR is designed for ease of use and dependable connection.
Browse the Surface Mount Inductor category and explore more TDK power components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7μH with a tolerance of ±20%.
It supports a maximum DC current of up to 3.7A, making it suitable for demanding power applications.
The dimensions are 5.4mm in length, 5.1mm in depth, and 2mm in height.
The operating temperature range is from -40°C to 125°C, allowing it to function in various environments.
It features a wirewound construction with a metal core, which enhances its performance and reduces hum noise.
Yes, this model is RoHS compliant, ensuring it meets environmental standards for manufacturing.
The maximum DC resistance is 67.6mΩ, which supports efficient energy transfer.
The termination style is surface mount, making it suitable for automated assembly processes.
This inductor has a pin count of 2, designed for ease of use and reliable connection.
It is suitable for applications in compact power supply modules, tablets, notebooks, hard disk drives, and servers.
This model belongs to the SPM-LR series, which is recognized for meeting strict performance requirements in power circuits.
The country of origin for this model is China.
