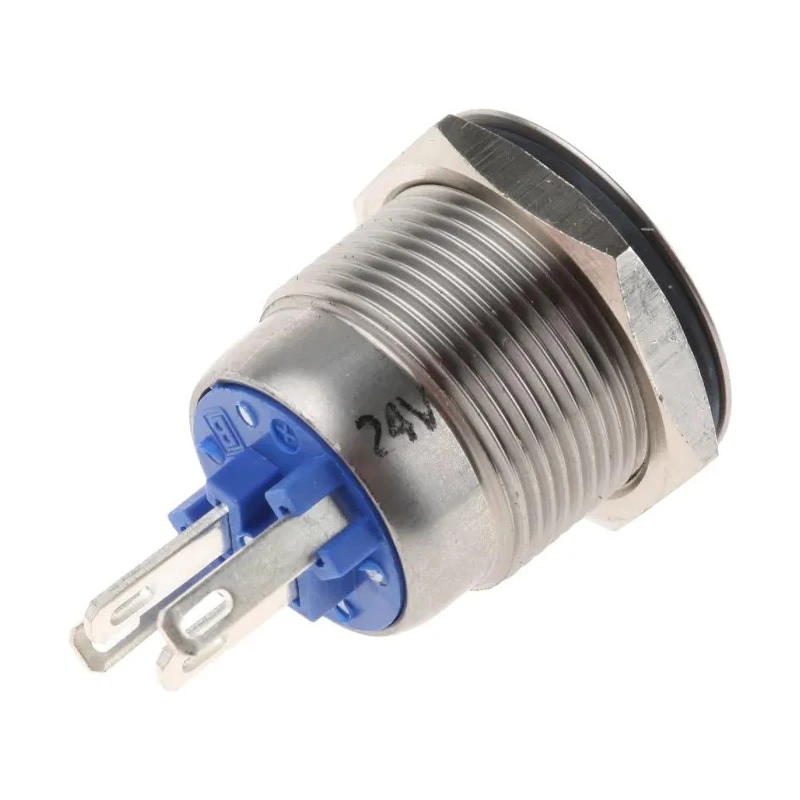

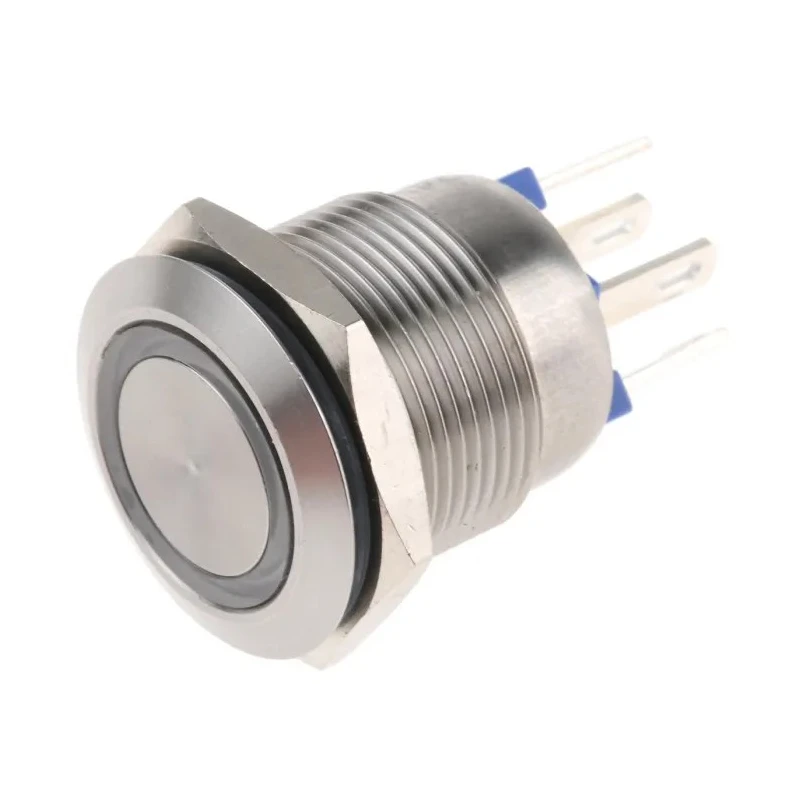

Bulgin Illuminated Momentary Push Button Switch Panel Mount 19.2 mm Cutout SPST Blue LED IP66 24 V dc MPI002

Name: Bulgin Illuminated Momentary Push Button Switch Panel Mount 19.2 mm Cutout SPST Blue LED IP66 24 V dc MPI002
Brand: Bulgin
SKU: 103669
Price: 42.76 USD
Availability: InStock



Category Push Button Switch Brand Bulgin Condition New

Specifications

Country of Origin	Tunisia
Brand	Bulgin
Model	MPI002
IP Rating	IP66
Mount Type	Panel
Overall Length	35mm + 300mm (flying leads), 32.7mm (2.8mm tags)
Series	MPI002
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-30°C
Panel Cutout Size	19.2 mm
Terminal type	Tab
Standards/Approvals	RoHS
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	24V dc
Actuator Style	Button
Switch Contact Current	50mA

Key Features

Features a single-pole, single-throw (SPST) contact configuration providing reliable momentary operation.
Equipped with a blue LED illumination for clear visual indication.
Constructed from stainless steel for enhanced durability and vandal resistance.
Rated for 24 V dc contact voltage with a contact current limit of 50mA.
Offers an operating temperature range from -30°C to 70°C for versatile industrial usage.
Designed with integral supply resistor variants supporting 6V, 12V, and 24V illumination voltages.
IP66 sealing ensures protection against dust and powerful water jets for harsh environments.
Termination options include flying leads (35mm + 300mm length) or 2.8 mm solder tab connections.

Product Description

Bulgin MPI002 Series Illuminated Momentary Push Button Switch is engineered for panel mounting applications requiring a compact 19.2 mm cutout and robust performance under demanding conditions. This SPST switch features a blue LED indicator integrated directly in the actuator, providing instant visual status feedback in control systems.

Constructed from durable stainless steel, this push button offers high resistance against wear and vandalism, making it suitable for both industrial and outdoor environments. The switch is fully sealed with an IP66 rating, ensuring protection against dust ingress and powerful water jets.

The switch is rated for 24 V dc operation with a contact current of 50mA, and can tolerate temperatures between -30°C and 70°C, offering reliable functionality across diverse industrial settings. The integral supply resistor variants support illumination voltages of 6V, 12V, and 24V, simplifying installation based on user voltage requirements.

Termination choices include flying leads with an overall length of 35mm + 300mm or 2.8 mm solder tabs with a length of 32.7mm, providing flexible connectivity options. Additionally, the switch design incorporates internal TVS protection to enhance robustness against voltage spikes.

Single-pole, single-throw (SPST) contact arrangement supports momentary actuation. High IP66 ingress protection for reliable performance in harsh environments. Blue LED illumination ensures clear and visible status signaling.

Stainless steel body designed for vandal resistance and durability. Wide operating temperature range from -30°C to 70°C. Integral resistor options for 6V, 12V, and 24V LED variants. Termination options include flying leads or solder tag for convenient wiring.

Internal TVS protection delivers enhanced electrical robustness.

This Bulgin MPI002 Push Button Switch is ideal for applications in industrial automation, security panels, commercial machinery controls, and other systems where a vandal-resistant, illuminated switch with a compact panel cutout is required. Its robust design coupled with clear visual indication makes it a versatile choice for demanding environments.

Explore more from the reliable Bulgin switch range and related electrical components in our comprehensive product catalog to suit your automation and control needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a single-pole, single-throw (SPST) contact configuration, allowing for reliable momentary operation.

It is rated for a contact voltage of 24 V dc and has a contact current limit of 50 mA.

The switch can operate within a temperature range of -30°C to 70°C, making it suitable for diverse industrial environments.

This model requires a panel cutout size of 19.2 mm for proper installation.

Termination options include flying leads with an overall length of 35mm + 300mm or 2.8 mm solder tabs with a length of 32.7mm.

It has an IP66 rating, ensuring protection against dust ingress and powerful water jets.

The switch is constructed from stainless steel, providing enhanced durability and vandal resistance.

Yes, it is equipped with a blue LED illumination for clear visual indication of its status.

This model complies with RoHS standards, ensuring it meets environmental and safety regulations.

It supports integral supply resistor variants for illumination voltages of 6V, 12V, and 24V.

It is ideal for applications in industrial automation, security panels, and commercial machinery controls where a robust, illuminated switch is required.

The actuator style is a button, and it features a silver color.
