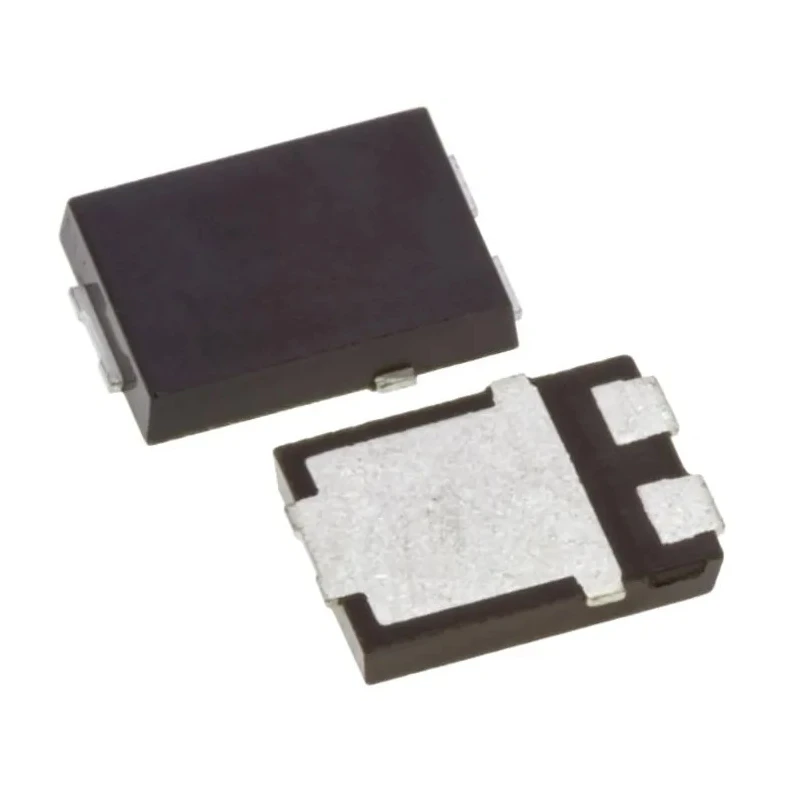

Vishay Schottky Diode 60V 8A TO-277, Surface Mount, 3-Pin, Low Forward Voltage V8PM63-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.65mm |
| Model | V8PM63-M3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- Efficient Schottky rectifier rated 60V maximum repetitive reverse voltage.
- Delivers continuous forward current up to 8A for demanding circuits.
- Features TO-277 surface mount package with low profile and 3-pin structure.
- Low forward voltage drop minimizes power losses in high-frequency conversion.
- AEC-Q101 automotive compliance ensures robust performance in harsh environments.
- RoHS compliant construction suitable for modern assembly standards.
- Operates from -40°C to 175°C for wide temperature stability.
- Peak surge current handling up to 140A protects from transient overloads.
Product Description
Vishay V8PM63-M3/H Schottky Diode is a high-performance surface mount rectifier, designed for both industrial and automotive applications. With a maximum repetitive reverse voltage of 60V and a continuous forward current rating of 8A, this device provides efficient rectification in power electronics, DC/DC converters, freewheeling diodes, and polarity protection circuits.
Manufactured using advanced Trench MOS Barrier Schottky technology, the diode offers ultra-low forward voltage drop (as low as 0.43V at 4A), minimizing power dissipation and maximizing efficiency in switching and inverter assemblies. The TO-277 package supports automated surface mount production, with a low profile height of 1.2mm and compact length/width dimensions suited to compact PCB layouts.
Efficient Schottky rectifier rated 60V maximum repetitive reverse voltage. Delivers continuous forward current up to 8A for demanding circuits. Features TO-277 surface mount package with low profile and 3-pin structure. Low forward voltage drop minimizes power losses in high-frequency conversion.
AEC-Q101 automotive compliance ensures robust performance in harsh environments. RoHS compliant construction suitable for modern assembly standards. Operates from -40°C to 175°C for wide temperature stability. Peak surge current handling up to 140A protects from transient overloads.
This component supports single diode configuration with a typical reverse leakage (Ir) of only 3.5mA. Its robust surge current capacity up to 140A enables safe handling during high transient events, while operational standards like RoHS and AEC-Q101 compliance make it fit for high-reliability projects.
The Vishay V8PM63-M3/H is recommended for critical power rectification duties in industrial, laboratory, automotive, and commercial equipment. It suits DC/DC converter design, inverter power supplies, freewheeling circuits, and polarity protection. Its wide operating temperature range and advanced package design support high-density assemblies and demanding environments.
Engineers seeking high current density, low-loss Schottky rectifiers for power electronics can leverage this component in manufacturing, construction, HVAC, and automotive applications.
Explore additional Vishay semiconductor products and Schottky Diodes in the EnvMart catalog for reliable, high-performance rectification solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive reverse voltage of this Schottky diode is 60V.
This model has a continuous forward current rating of 8A.
It features a TO-277 surface mount package.
The height of this diode is 1.2mm.
It operates within a temperature range of -40°C to 175°C.
The diode can handle a peak surge current of up to 140A.
It is compliant with RoHS and AEC-Q101 automotive standards.
The typical reverse leakage current is 3.5mA.
The maximum forward voltage drop is 0.64V at 4A.
This component supports a single diode configuration.
It is suitable for applications in industrial, automotive, laboratory, and commercial equipment.
The dimensions are 6.65mm in length and 4.75mm in width.
