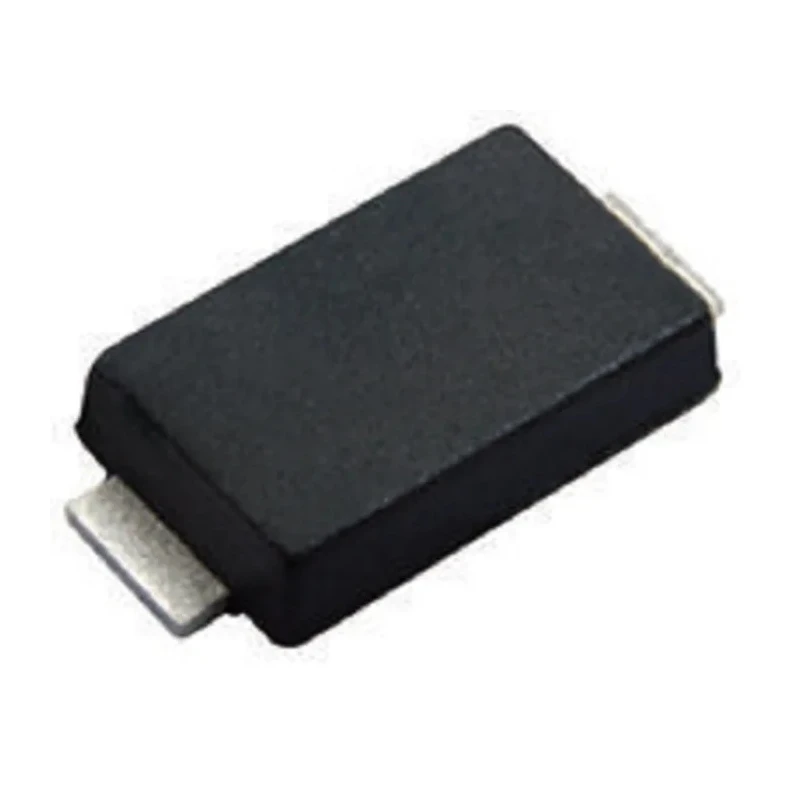

Vishay Schottky Diode 600V 5A SMPA 2-Pin Surface Mount SE50PAJHM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 5.35mm |
| Model | SE50PAJHM3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | SE50PAJ |
| Maximum Operating Temperature | 175°C |
| Package Type | SMPA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Capability |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 42A |
| Maximum Forward Voltage Vf | 1.16V |
| Peak Reverse Recovery Time trr | 2μs |
Key Features
- 5A continuous forward current for reliable power rectification.
- 600V peak reverse repetitive voltage ensures robust operation.
- SMPA surface-mount package suitable for automated placement.
- Low forward voltage drop reduces power losses in applications.
- Meets AEC-Q101 automotive standard, ideal for consumer and telecom designs.
- Very low profile with 1mm height and 5.35mm length.
- Oxide planar chip junction technology for enhanced performance.
- Maximum forward voltage of just 1.16V improves efficiency.
Product Description
Vishay SE50PAJHM3/H is a high-quality Schottky rectifier diode engineered for fast switching and reliable operation in demanding electronic applications. With a peak reverse voltage of 600V and a continuous forward current of 5A, this device provides robust rectification capabilities suitable for power supplies, inverters, converters, and freewheeling circuits.
5A continuous forward current delivers stable electrical performance for rectification tasks. 600V peak reverse repetitive voltage ensures safe operation in high-voltage circuits. Surface-mount SMPA package allows for easy automated PCB placement and compact board layouts.
Low forward voltage drop (maximum 1.16V) minimizes energy waste and heat dissipation. Oxide planar chip junction increases reliability and longevity in operation. Peak non-repetitive forward surge handling of up to 42A supports transient overload events.
Low leakage current (peak reverse current: 150μA) enhances efficiency and reduces standby losses. Schottky diode configuration with single rectifier type, optimal for switching power supplies and converters.
This Vishay diode is compliant with AEC-Q101 automotive standards, making it suitable for consumer, telecommunications, and automotive industry applications. It is designed for applications requiring very fast recovery time (2μs maximum) and high temperature operation (up to 175°C maximum).
Its compact physical dimensions - 1mm height, 5.35mm length, and 2.7mm width - optimize space on densely packed PCBs. Matte tin-plated leads offer excellent solderability in automated manufacturing processes.
Industrial and commercial uses include general purpose rectification in AC/DC power supplies, inverters, DC-DC converters, and freewheeling diodes. Suitable for manufacturing, electronics development, laboratory electronics, telecommunications devices, and automotive power systems.
Fast switching and low recovery time offer efficiency in modern power designs. Meets rigorous automotive standards for reliability. Versatile surface-mount form factor allows integration into multi-sector industrial and commercial electronics.
Browse more Vishay Schottky Diodes and discrete semiconductor solutions on EnvMart. Discover industry-leading rectification technology for your next electronic project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 5A, providing stable electrical performance for rectification tasks.
This model has a peak reverse repetitive voltage rating of 600V, ensuring safe operation in high-voltage circuits.
The dimensions of this diode are 1mm in height, 5.35mm in length, and 2.7mm in width, making it suitable for compact PCB layouts.
The maximum operating temperature for this diode is 175°C, allowing it to function effectively in high-temperature environments.
The maximum forward voltage drop is 1.16V, which minimizes energy waste and heat dissipation in applications.
This diode uses an SMPA surface-mount package, which is suitable for automated PCB placement.
It complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The peak non-repetitive forward surge current rating is 42A, which supports transient overload events.
The peak reverse recovery time for this diode is 2μs, allowing for fast switching in applications.
The peak reverse current is 150μA, which enhances efficiency and reduces standby losses.
This diode has a single rectifier configuration, optimal for various applications including power supplies and converters.
This Schottky diode is suitable for use in power supplies, inverters, DC-DC converters, and freewheeling circuits, among other electronic applications.
