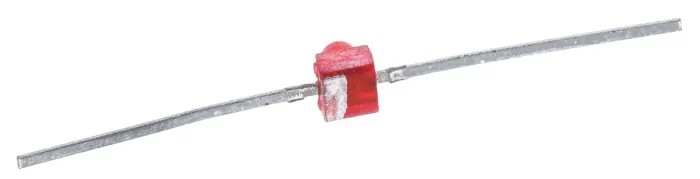

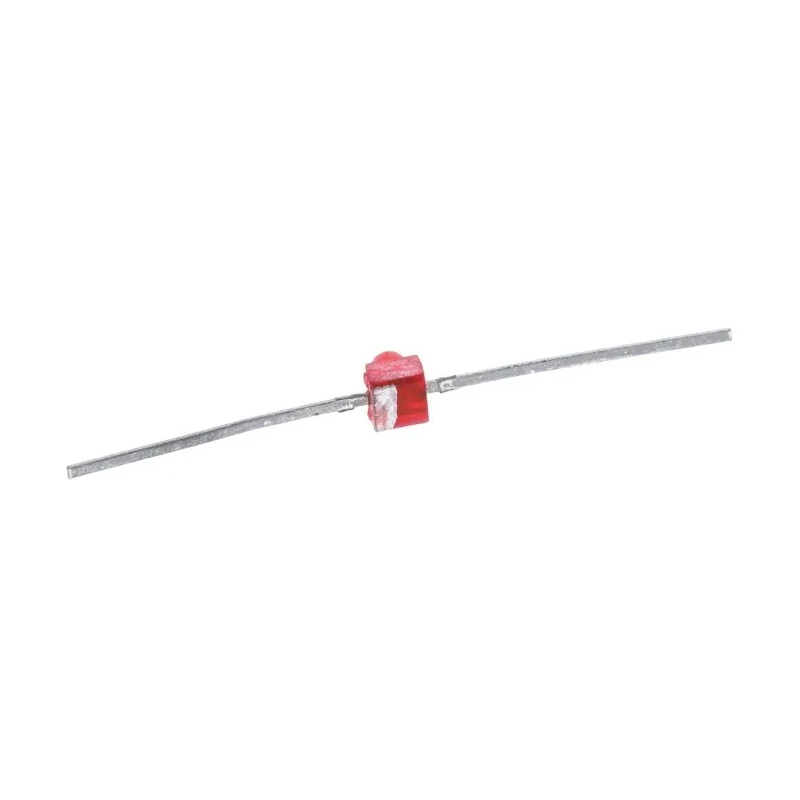

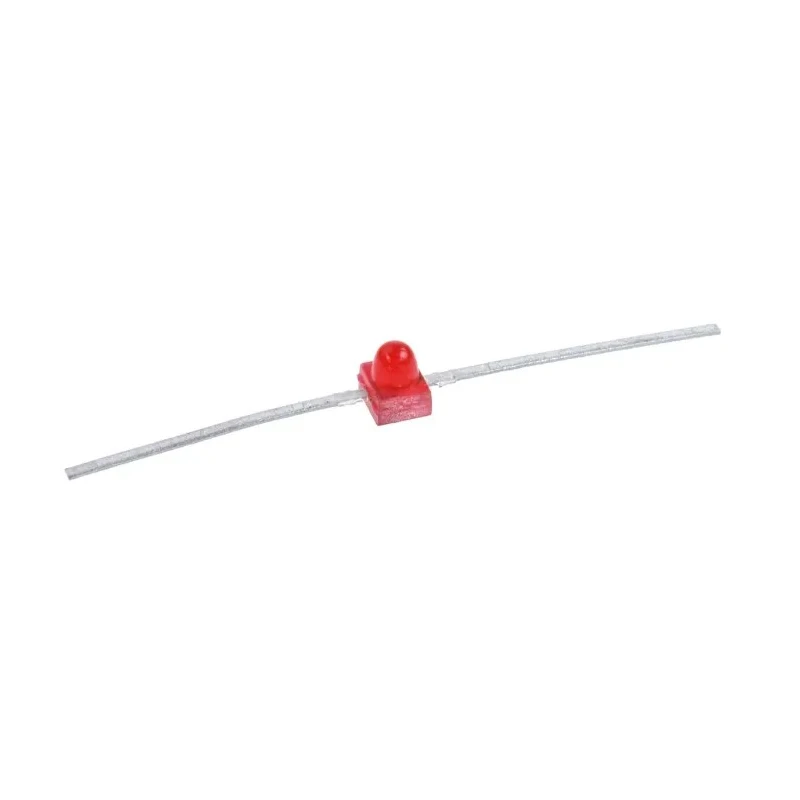

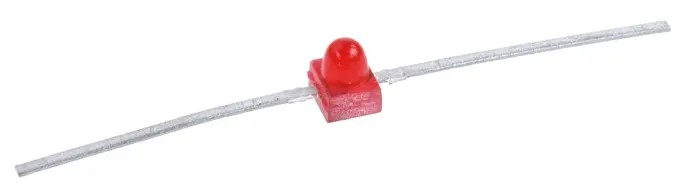

Broadcom Red Subminiature Through Hole LED 1.8V, 30mA, HLMP-6300
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HLMP-6300 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | HLMP |
| Maximum forward current | 30mA |
| Viewing angle | 90 ° |
| Package Type | Subminiature |
| Lens Colour | Red |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.8V |
| Number of Pins | 2 |
| LED Luminosity | 10 mcd |
| Lens Dimensions | 2.4 x 2.2 mm |
| Lens Shape | Dome |
| Lens Finish | Tinted, Diffused |
Key Features
- Operates at a forward voltage of 1.8V and maximum forward current of 30mA.
- Subminiature dome package enables use in space-limited applications.
- Through hole mounting offers secure installation in PCBs and electronic assemblies.
- Features red LED color with a dominant wavelength of 626nm.
- Viewing angle of 90° enables broad light distribution.
- Tape & reel packaging facilitates efficient automated production processes.
- Lens is tinted and diffused for enhanced visibility and light contrast.
- RoHS compliant for safe use in regulated environments.
Product Description
The Broadcom HLMP-6300 is a red subminiature LED designed for through hole mounting, making it ideal for applications demanding compact footprint and robust performance. With a forward voltage of 1.8V and maximum forward current of 30mA, this LED delivers reliable light output without excessive power consumption. The HLMP-6300 is part of Broadcom’s HLMP-6xxx series, known for their diffused dome packaging which provides a wide 90° viewing angle, ensuring uniform light dispersion across electronic panels and indicators.
The subminiature package type suits PCB designs where space efficiency is critical, and the through hole configuration ensures secure mechanical mounting. The lens is tinted, diffused, and shaped as a dome; this combination ensures high on-off contrast ratio and improved visual clarity, even in bright ambient environments. The dominant wavelength of 626nm produces a strong red hue, making this LED appropriate for indicators, status lights, and optoelectronic display panels.
Tape & reel packaging allows for compatibility with automated component placement and high-volume manufacturing. The HLMP-6300 is RoHS compliant, aligning with stringent industry safety and environmental standards. The lens’s dimensions (2.4 x 2.2 mm) and luminosity (10 mcd) make it suitable for precise signaling and low-profile application areas from industrial controls to consumer electronics.
Designed to meet modern requirements, HLMP-6300 LEDs are widely used in industrial electronics, instrumentation, panel indicators, communication equipment, and laboratory devices. Its TTL and LSTTL compatibility further broadens utility across digital logic circuits. Reliability and performance in demanding environments are assured by Broadcom's trusted quality.
Applications include industrial signal indicators, laboratory instrumentation, electronic panel displays, and commercial control systems where LED visibility, power efficiency, and form factor are essential. For customers integrating optoelectronic components, Broadcom’s HLMP-6300 offers proven reliability and easy handling via tape/reel distribution.
Browse more LEDs and optoelectronic solutions in the Electronics Components category or discover Broadcom’s complete product range on EnvMart to find exact models and solutions for your application needs.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HLMP-6300 LED operates at a forward voltage of 1.8V.
This model has a maximum forward current of 30mA.
The viewing angle of this LED is 90°, allowing for broad light distribution.
The lens dimensions are 2.4 x 2.2 mm.
This LED is designed for through hole mounting, providing secure installation in PCBs.
The dominant wavelength of the HLMP-6300 is 626nm, producing a strong red hue.
The luminosity of this LED is 10 mcd.
It is packaged in tape & reel format, facilitating efficient automated production processes.
Yes, the HLMP-6300 is RoHS compliant, ensuring safe use in regulated environments.
This LED is suitable for applications such as industrial signal indicators, laboratory instrumentation, and electronic panel displays.
The lens is dome-shaped and has a tinted, diffused finish for enhanced visibility and light contrast.
This model has 2 pins.
