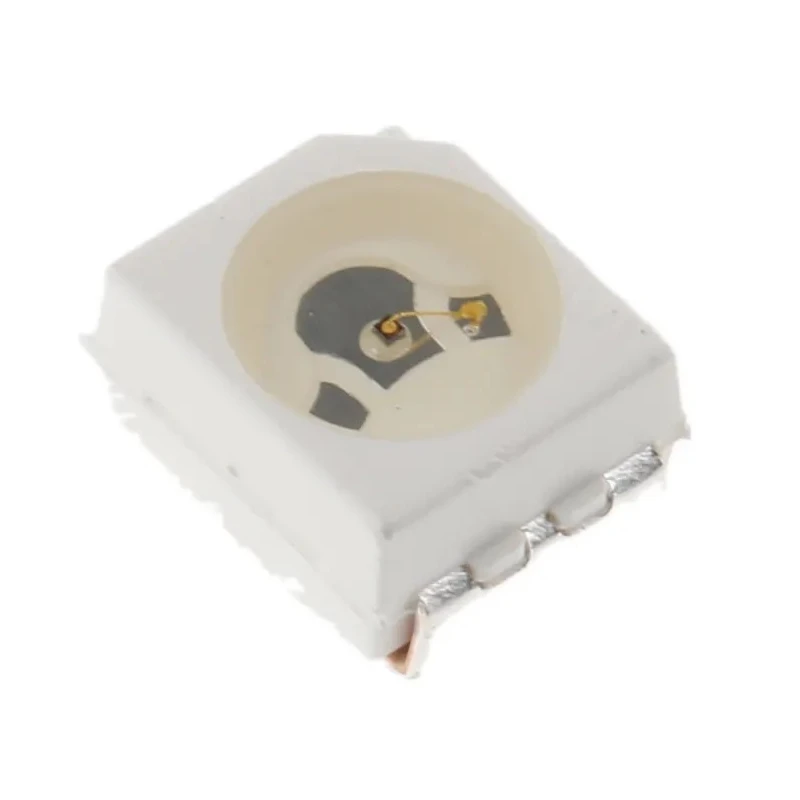

Broadcom Surface Mount Red LED, 1.9V, 30mA, PLCC 2, 63mW, 120° Wide Angle, HSMC-A100-Q00J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Dimensions | 3.2 x 2.8 x 1.9 mm |
| Model | HSMC-A100-Q00J1 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 100 mcd |
| Maximum Power Dissipation | 63mW |
| Lens Dimensions | 3.2 x 2.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- Wide 120-degree viewing angle for uniform light distribution.
- Surface mount design in PLCC 2 package allows for easy automated assembly.
- Forward voltage of 1.9V and maximum forward current of 30mA support reliable operation.
- High luminous intensity of 100 mcd ensures visible light output for indicators and displays.
- Operates at a wavelength of 626nm with efficient power dissipation of 63mW.
- Features a round clear lens with white finish, sized 3.2 x 2.8 mm.
- RoHS compliant for use in environmentally conscious designs.
- Well suited for automotive and industrial electronics, backlighting, and signage applications.
Product Description
The Broadcom HSMC-A100-Q00J1 is a high-performance surface mount red LED, specially designed for use in a wide range of electronic, signage, and industrial applications where compact size and high luminous intensity are required.
This device comes in a PLCC 2 package, supporting automated production environments with tape and reel packaging. It operates at a forward voltage of 1.9V and a maximum forward current of 30mA, delivering a typical luminosity of 100 millicandela (mcd). The LED utilizes AlGaInP and InGaN die technologies to provide bright, reliable red light at a dominant wavelength of 626nm, with a maximum power dissipation of 63mW, ensuring energy efficiency.
The HSMC-A100-Q00J1 features a wide viewing angle of 120 degrees, making it suitable for applications needing even and broad light diffusion. Its round, clear lens with a white finish measures 3.2 x 2.8 mm, and the total package dimensions are 3.2 x 2.8 x 1.9 mm, supporting dense layouts in modern circuit boards. With a flat-topped emitting surface, it is well suited for efficient coupling with light pipes and optical guides.
This LED is compliant with RoHS standards, making it ideal for use in environmentally sensitive projects. It does not conform to automotive-specific standards but is robust enough for interior automotive electronics, instrumentation backlights, consumer devices, industrial equipment indicators, and illuminated signage. The broad spectral range and high luminous efficacy enhance its versatility for applications such as dashboard icons, keypad backlights, multi-segment display boards, and status indicators in commercial and manufacturing systems.
Applications include electronic circuit indicators, signal lighting, interior displays, commercial equipment backlighting, embedded system status indicators, and illuminated panels. The part is supplied on tape and reel for efficient machine assembly in large production runs.
Browse more Broadcom surface mount LEDs and related optoelectronic components in the LEDs - Light Emitting Diodes category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of the Broadcom HSMC-A100-Q00J1 LED is 1.9V.
The maximum forward current for this LED is 30mA.
This LED has a wide viewing angle of 120 degrees, allowing for even light distribution.
The dimensions of this LED are 3.2 x 2.8 x 1.9 mm.
The Broadcom HSMC-A100-Q00J1 is supplied in tape and reel packaging, suitable for automated assembly.
This LED has a luminous intensity of 100 millicandela (mcd).
The dominant wavelength of the emitted light is 626nm.
The maximum power dissipation for this model is 63mW.
The lens of this LED is round with a white finish.
Yes, the HSMC-A100-Q00J1 is RoHS compliant, making it suitable for environmentally conscious designs.
This model utilizes a surface mount design, specifically in a PLCC 2 package.
