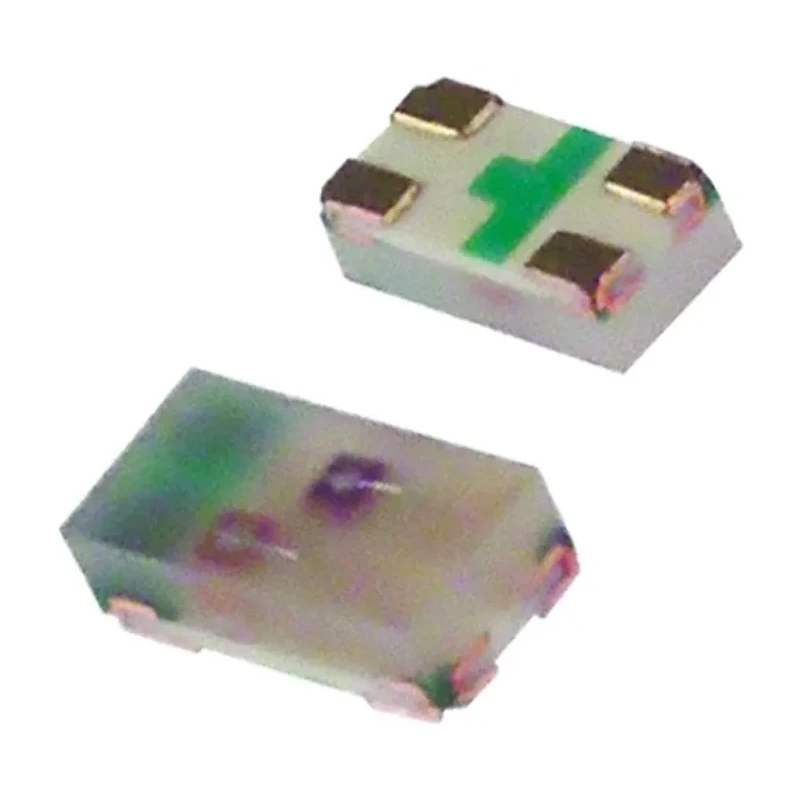

Broadcom Dual Color SMD LED Green/Red 1.85V 0603 Surface Mount Indicator HSMF-C165
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMF-C165 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMF-C16x |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Package Type | 0603 |
| LED Colour | Green, Red |
| Dominant Wavelength | 621nm |
| Forward Voltage | 1.85V |
| Number of Pins | 4 |
| LED Luminosity | 10 mcd |
| Maximum Power Dissipation | 52mW |
| Lens Shape | Rectangular |
Key Features
- Features green and red dual emitter for multi-state indication.
- Operates at 1.85V forward voltage for simplified circuit design.
- Maximum forward current of 20mA allows defined drive control.
- 52mW maximum power dissipation enables low-power operation.
- 0603 surface-mount form supports high-density PCB layouts.
- Wide 120° viewing angle for broad optical visibility.
- 10 mcd luminous intensity provides clear status signalling.
- Supplied on tape & reel for automated production workflows.
Product Description
The Broadcom HSMF-C165 is a dual color SMD LED designed for compact, high-density electronic circuit boards, offering both green and red illumination options for multi-state signalling requirements. With its 0603 surface-mount package, this LED is particularly suitable for handheld instrument panels, consumer device displays, wearable tech indicators, and control panel arrays.
Operating at a forward voltage of 1.85V and a maximum forward current of 20mA, the HSMF-C165 is engineered for low power consumption without sacrificing performance. Its maximum power dissipation of 52mW supports reliable operation even in energy-sensitive applications.
This LED utilizes a clear, rectangular lens with a smooth finish, preserving indicator contrast and minimizing diffusion losses. The 120° wide viewing angle ensures broad optical visibility, making it ideal for densely packed PCBs and multi-device arrays. The luminous intensity of 10 mcd is calibrated to deliver effective visual signalling in both ambient and low-light settings.

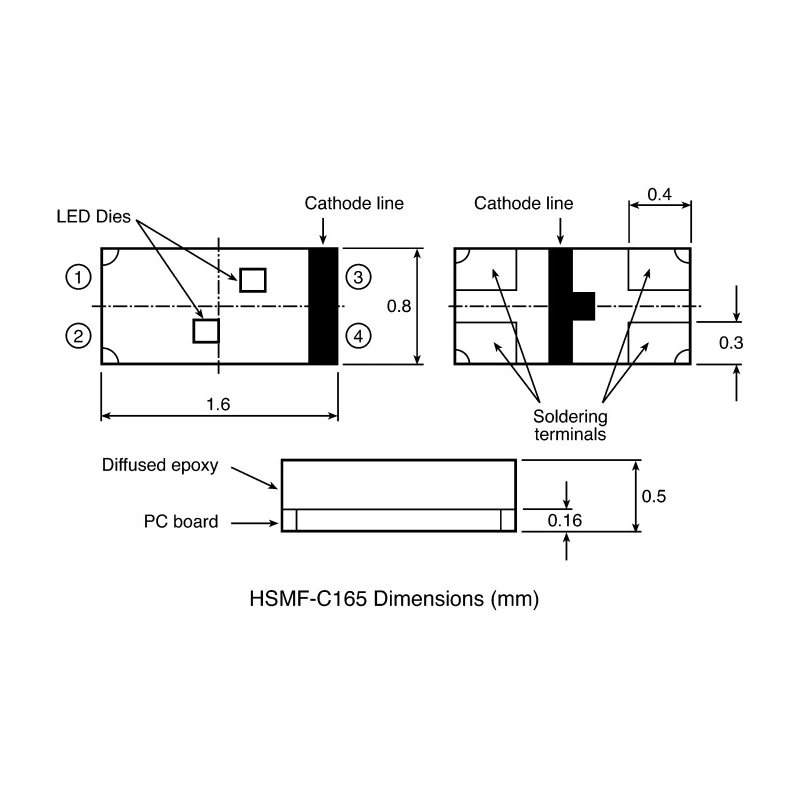

The surface-mount 0603 package type and tape & reel packaging format support automated pick-and-place processes for efficient assembly in mass production environments. A four-pin configuration accommodates accurate dual emitter placement and polarity orientation during installation.
Applications range from compact consumer electronics to low-power wearable signalling, and status indicators on control panels, offering versatility wherever reliable, multi-color visual feedback is essential.
In summary, Broadcom HSMF-C165 delivers versatile status indication, optimized for board-level integration across industrial, commercial, and laboratory electronics assemblies. Browse more options in LEDs - Light Emitting Diodes on EnvMart and explore Broadcom's full range of compact SMD solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HSMF-C165 operates at a forward voltage of 1.85V, which simplifies circuit design.
This model has a maximum forward current of 20mA, allowing for defined drive control.
The viewing angle of this LED is 120°, providing broad optical visibility.
The luminous intensity of this model is 10 mcd, ensuring effective visual signalling.
It is supplied on tape and reel, which supports automated production workflows.
This LED utilizes a surface mount type, specifically in a 0603 package.
This model features two LEDs, providing dual color functionality.
The maximum power dissipation for this LED is 52mW, supporting low-power operation.
The lens shape of this model is rectangular, designed to minimize diffusion losses.
This LED has a four-pin configuration, which facilitates accurate dual emitter placement.
The country of origin for this model is India.
