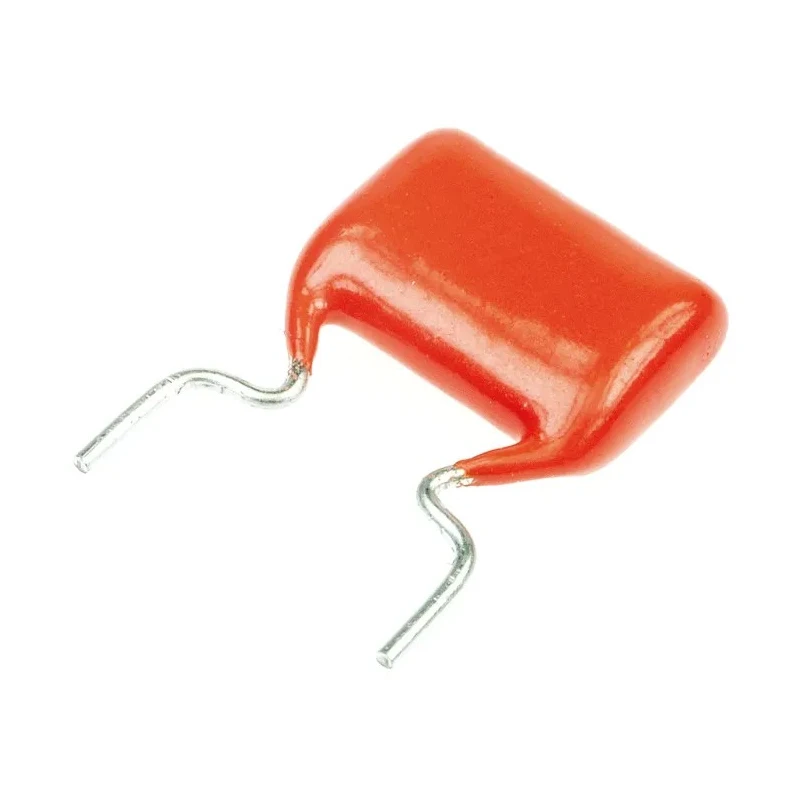

Vishay Metallised Polyester Film Capacitor, Through Hole, 22 nF, 220V AC, 400V DC, 12.5x4.2x12.9 mm, MKT368

The Vishay MKT368 Metallised Polyester Film Capacitor delivers precision and reliability for electronic circuit designers, offering 22 nF capacitance, and supporting up to 220V AC and 400V DC voltage in a compact through hole package. This capacitor is part of the renowned MKT368 series, featuring wound mono construction and a flame-retardant epoxy coating compliant with UL 94 V-0 standards.

Its metallised polyester material ensures high stability and longevity under continuous electrical stress, making it ideal for demanding commercial, industrial, and laboratory environments. Applications include coupling and blocking in signal and power circuits, bypassing noise, and energy storage for power supplies or amplifiers.

The through hole mount provides robust mechanical and electrical connection to the PCB, with a 10 mm lead pitch and 0.6 mm lead diameter, suitable for automated or manual assembly. Its compact size - 12.5 mm long, 4.2 mm wide, and 12.9 mm high - enables integration in space-constrained electronic designs.

Operating reliably up to 105°C, the MKT368 capacitor is intended for extended life applications (performance grade 1), supporting long service intervals without component replacement. The RoHS compliant construction aligns with modern environmental and safety standards.

By combining high voltage capability, compact size, and dependable construction, this component suits industrial circuit boards, laboratory instrumentation, commercial equipment, and audio systems requiring precise capacitance and robust performance.

High-quality metallised polyester construction ensures durability and stable operation. Through hole mount facilitates easy PCB integration and secure electrical connections. Complies with RoHS standards and meets UL 94 V-0 coating requirement for safety.

Capacitance of 22 nF enables effective coupling, blocking, bypassing and energy storage. Dimensions of 12.5 mm length, 4.2 mm width, and 12.9 mm height ideal for compact circuit designs. Grade 1 (long life) performance for superior reliability in industrial applications.

Suitable for both AC (220V) and DC (400V) voltage environments. Explore more Vishay capacitors and passive components in the Electronics & Electricals category for optimal circuit design solutions.
