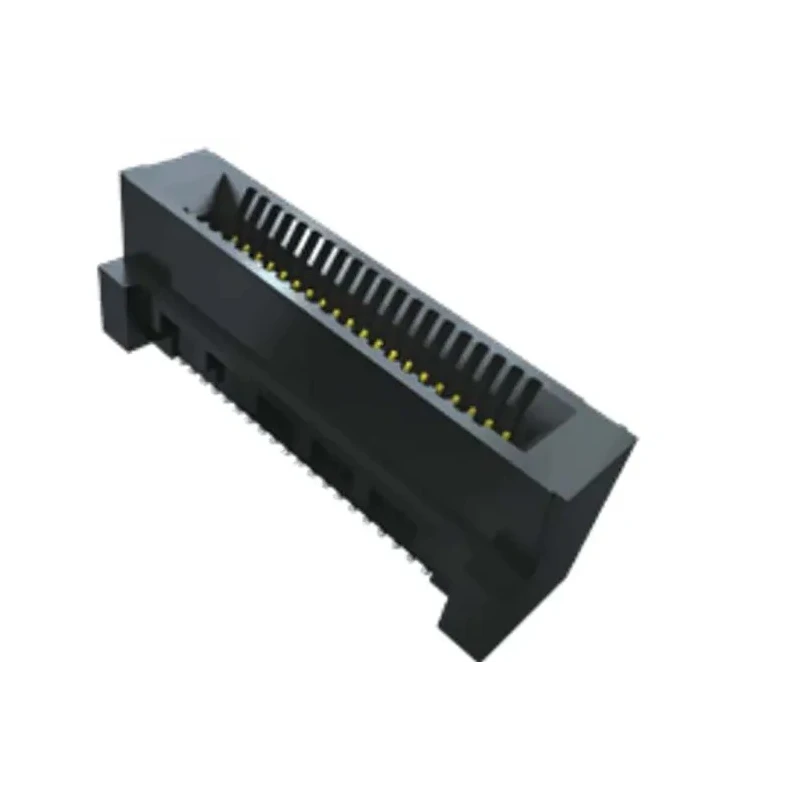

Samtec Right Angle 10-Contact Female Surface Mount Dual Edge Connector 0.8 mm Pitch 240V, 2.6A HSEC8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.6A |
| Model | HSEC8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Dual Edge |
| Card Thickness | 1.6mm |
Key Features
- Designed with dual edge card type for enhanced connection stability.
- Constructed from beryllium copper alloy contacts with gold plating for durability.
- Compact 1-row configuration supports a current rating of 2.6A per pin.
- Housing is made from liquid crystal polymer to withstand temperatures from -55°C to 125°C.
- Termination type is solder, ensuring reliable surface mount connections.
- Operates safely at voltages up to 240V.
- RoHS compliant and lead-free solderable for environmental safety.
Product Description
Samtec HSEC8 series edge connector, model HSEC8, is a right angle female connector offering 10 contacts arranged in a single row with a 0.8 mm pitch designed for surface mount applications. Its dual edge card type supports reliable and high-speed connections, ideal for electronic component integration.
The connector employs beryllium copper alloy contacts plated in gold, ensuring excellent electrical conductivity and corrosion resistance. The housing material is a robust liquid crystal polymer, providing stability across a wide operating temperature range from -55°C to 125°C.
This connector supports a current load of 2.6A per pin and withstands voltages up to 240V, making it suitable for demanding industrial and electronic applications. The termination is solder type, facilitating firm PCB connections.
Its compact design with 10 female contacts in a single row allows for space-efficient PCB layouts. The RoHS compliance and lead-free solderability affirm its environmental safety and manufacturing standards adherence.
Samtec's HSEC8 series is widely used in industrial electronics, telecommunications, instrumentation, and computing hardware requiring reliable edge connection solutions. It supports both single-ended and differential signaling applications, enhancing signal integrity.
Designed with dual edge card type for enhanced connection stability. Constructed from beryllium copper alloy contacts with gold plating for durability. Compact 1-row configuration supports a current rating of 2.6A per pin.
Housing is made from liquid crystal polymer to withstand temperatures from -55°C to 125°C. Termination type is solder, ensuring reliable surface mount connections. Operates safely at voltages up to 240V. RoHS compliant and lead-free solderable for environmental safety.
Explore the Electronics Components category on EnvMart for more high-quality Edge Connectors by Samtec and other leading brands, suitable for various industry applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2.6A per pin.
This model operates safely at voltages up to 240V.
The contacts are constructed from beryllium copper alloy and are plated with gold for enhanced conductivity and corrosion resistance.
It has a pitch size of 0.8 mm.
It can operate within a temperature range of -55°C to 125°C.
The connector features 10 female contacts arranged in a single row.
This model uses solder termination, ensuring reliable surface mount connections.
It is designed with a right angle orientation.
The housing is made from liquid crystal polymer, providing stability and durability.
Yes, it is RoHS compliant and lead-free solderable for environmental safety.
It is suitable for industrial electronics, telecommunications, instrumentation, and computing hardware requiring reliable edge connections.
This connector is designed with a dual edge card type for enhanced connection stability.
