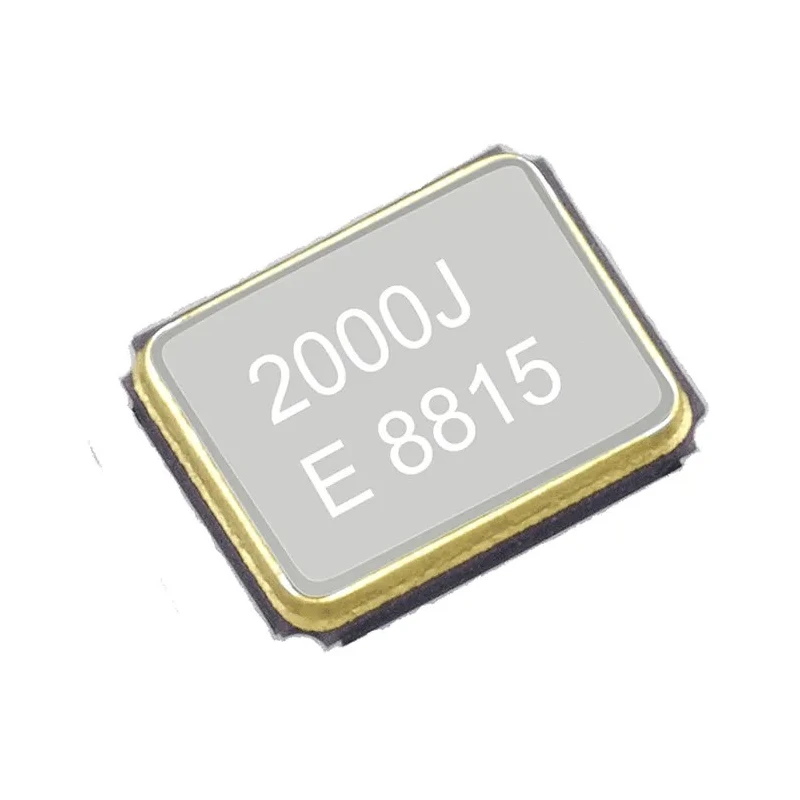

Epson 20 MHz ±10 ppm Surface Mount Crystal Unit TSX-3225 4-Pin 3.2 x 2.5 x 0.6 mm X1E000021058112

Epson X1E000021058112 is a 20 MHz crystal unit designed for surface mount applications, offering high frequency stability with ±10 ppm tolerance. This low profile TSX-3225 package measures 3.2 mm in length, 2.5 mm in width, and 0.6 mm in height, making it suitable for compact electronic assemblies.

The crystal unit operates within a temperature range of -40°C to 85°C, ensuring reliable performance under varying environmental conditions. Its fundamental overtone order and 10 pF load capacitance optimize precision in oscillator circuits, while a low series resistance of 60 Ω supports efficient signal transfer.

Conforming to REACH and RoHS directives, this unit is environmentally compliant. The 4-pin surface mount design facilitates straightforward integration onto printed circuit boards (PCBs).

Typical applications include use in mobile phones, Bluetooth and WLAN ISM band radios, and as clocks for microprocessor units (MPUs). Its robust specifications make it ideal for industrial, telecommunications, and consumer electronics equipment.

Operates at a standard frequency of 20 MHz. Low profile ceramic package TSX-3225 size: 3.2 x 2.5 x 0.6 mm. Surface mount 4-pin configuration for ease of assembly. Frequency tolerance ±10 ppm for precise frequency control.

Load capacitance of 10 pF designed for oscillator circuits. Operating temperature range from -40°C to 85°C. Series resistance of 60 Ω for low signal loss. Fundamental overtone order for stable operation. Compliant with REACH and RoHS environmental standards.

Applicable in mobile, Bluetooth, WLAN, and MPU clock applications. Explore more Epson electronic components and Crystal Units on EnvMart for high-quality industry-standard parts.
